Siemens

Siemens SLA16 S30810-Q1790-X PBX Plug-In Line Card W30810-Q1790-X2-3 Rev3

(No reviews yet) Write a Review
SKU:
41688
MPN:
S30810-Q1790-X
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

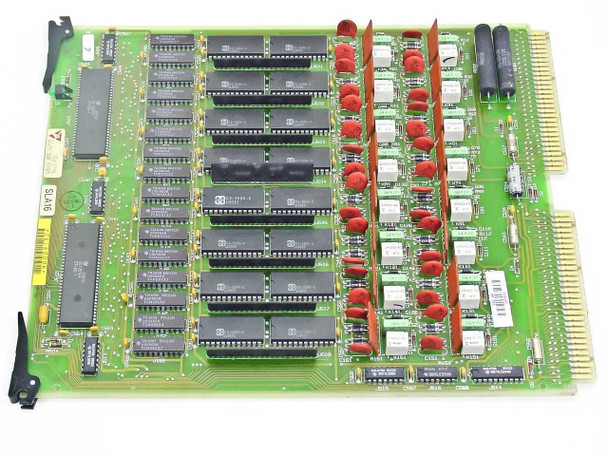

  • Siemens SLA16 S30810-Q1790-X PBX plug-in line card – component side showing ICs, relay array, and gold edge connectors
  • Siemens SLA16 S30810-Q1790-X – solder side of PCB showing trace routing and asset label A-0930
  • Siemens SLA16 S30810-Q1790-X PCB label closeup showing part numbers S30810-Q1790-X and W30810-Q1790-X2-3 /A1-3
  • Siemens SLA16 card label closeup showing 42616 MFG 14715 Rev3 FSI and SN74LS04N logic IC marked Malaysia 8909CS
  • Siemens SLA16 card corner closeup showing relay components, CSE INC barcode label 005978, and SN74LS244N IC
  • Siemens SLA16 card edge closeup showing gold bus connector fingers and resistor components marked 1000-10% Mexico M8904
$65.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Siemens SLA16 S30810-Q1790-X PBX Plug-In Line Card W30810-Q1790-X2-3 Rev3

This is a plug-in line card module for Siemens PBX telephone systems. The SLA16 card handles signal processing and line interface functions within Siemens EWSD and HICOM PBX platforms.

Specifications & What's Included

  • Brand: Siemens
  • Model: SLA16
  • MPN: S30810-Q1790-X
  • Hardware Revision: Rev3 FSI
  • Form Factor: Plug-In Card / Board
  • Manufactured: Germany
  • Card only—no additional components included

Applications

Line cards of this type were used in enterprise telephone switching systems to expand and manage external line connections. The SLA16 is compatible with Siemens EWSD and HICOM PBX systems. These modules were typically installed in card slots within the main switching frame to provide analog and digital line interface functionality for business telephone networks.

Condition: Used
This Siemens SLA16 S30810-Q1790-X PBX plug-in line card has been inspected and appears to be in good used condition. It was pulled from a working PBX environment where it was actively in use. The PCB is clean with no visible cracks, burnt components, or damaged traces. The gold edge connectors show normal contact wear consistent with prior installation. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
SLA16
MPN:
S30810-Q1790-X
Secondary Model:
W30810-Q1790-X2-3
Type:
PBX Plug-In Line Card
SKU:
41688
Hardware Revision:
Rev3 FSI
Assembly Number:
42616
MFG Number:
14715
Form Factor:
Plug-In Card / Board
Compatible With:
Siemens PBX / EWSD / HICOM systems
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; pulled from a working PBX environment
Country/Region of Manufacture:
Germany
Condition Notes:
Siemens SLA16 S30810-Q1790-X PBX plug-in line card. Inspected and in good used condition. Pulled from a working PBX environment. PCB clean, no visible damage. Gold edge connectors show normal wear.
View AllClose
