Siemens HMX3B600 600A 600V 3-Pole MCCB VL Series 65kA Thermal Magnetic w/

(No reviews yet) Write a Review
SKU:
52214
MPN:
HMX3B600
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
42.00 LBS
Shipping:
Calculated at Checkout
  • Siemens HMX3B600 600A 3-Pole MCCB front view with clear plastic enclosure shroud and operating handle attached
  • Siemens HMX3B600 molded case circuit breaker — front face of three-pole breaker body showing pole windows and trip indicators
  • Siemens HMX3B600 MCCB side and top view showing breaker body, enclosure frame, and terminal connection area

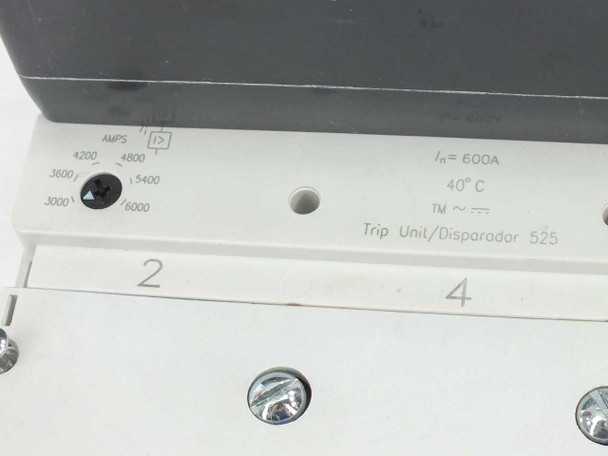

  • Siemens HMX3B600 trip unit label closeup showing In=600A, 40°C rating, TM trip type, and Disparador 525 designation

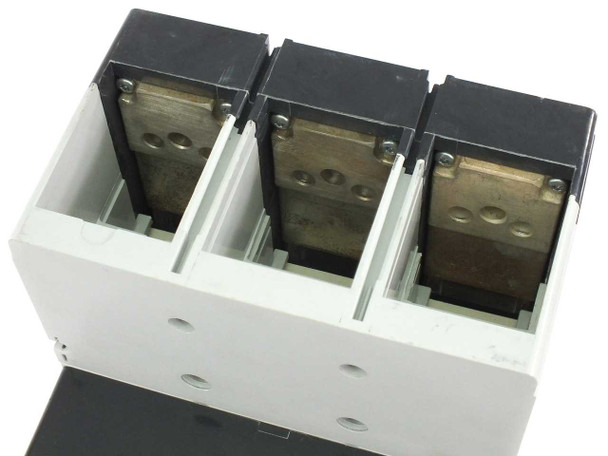

  • Siemens HMX3B600 top terminal view showing three copper bus bar connection pads inside white enclosure frame
  • Siemens HMX3B600 bottom terminal view showing three bolt-on lug connection cavities with threaded holes

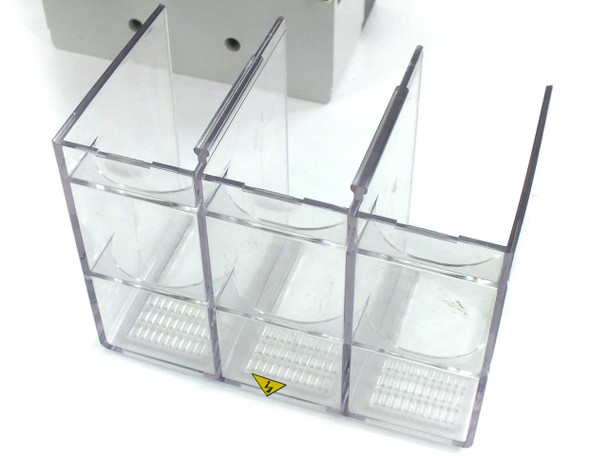

  • Siemens HMX3B600 clear plastic terminal shroud/enclosure accessory with three compartments and warning label
  • Siemens HMX3B600 operating handle/knob — metal rod with knob head used for manual breaker operation
  • Siemens HMX3B600 enclosure label showing part number 3VL9660-7KN30, MT3-60, and barcode 77-1362008-1L-0002

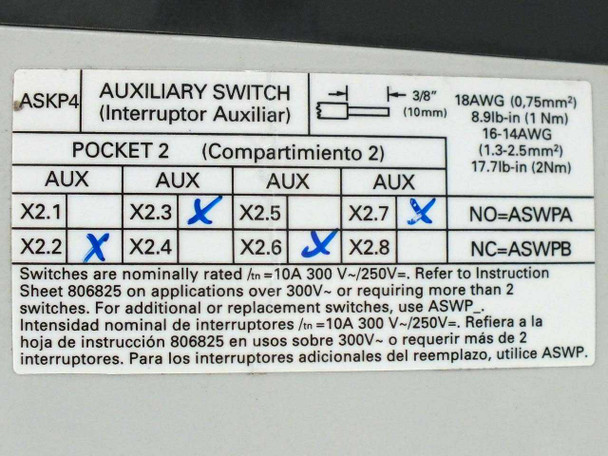

  • Siemens HMX3B600 auxiliary switch label — ASKP4, Pocket 2, showing AUX contact positions X2.1–X2.8 with NO/NC markings

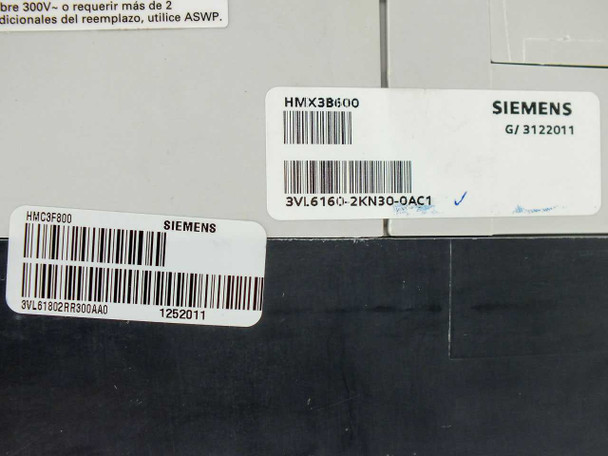

  • Siemens HMX3B600 breaker label closeup showing model HMX3B600, Siemens logo, part 3VL6160-2KN30-0AC1, and date G/3122011; adjacent label HMC3F800 / 3VL61802RR300AA0 dated 1252011
  • Siemens HMX3B600 rear body label showing part number 3VL6180-2RR30-0AA0, Made in Mexico, Siemens, date OM-1252011-1J-0173
$1,400.00
Was: $2,800.00
Current Stock: 1

Sold Out

Description

Siemens HMX3B600 600A 600V 3-Pole MCCB VL Series 65kA Thermal Magnetic w/ Enclosure

Molded case circuit breaker rated for 600A at 600V AC, 3-phase service. Provides thermal-magnetic trip protection with 65kA interrupting capacity at 480V and supports reverse-fed applications.

Specifications & What's Included

  • Model: HMX3B600 / 3VL6160-2KN30-0AC1
  • Voltage: 600V AC; Current: 600A; Poles: 3
  • Trip Unit: Thermal Magnetic (LI), non-interchangeable Disparador 525
  • Interrupting Capacity: 65kA @ 480V (UL 489, NEMA)
  • Mounting: Bolt-on; Ambient rating 40°C
  • ASKP4 auxiliary switch installed (Pocket 2)
  • Includes clear plastic terminal shroud and operating handle
  • Suitable for reverse-fed applications

Applications

MCCBs of this type are used in industrial and utility switchgear for main distribution and branch circuit protection in 600V systems. Common in manufacturing plants, solar facilities, and large commercial installations where higher amperage capacity and thermal-magnetic protection are required. Bolt-on design allows integration into standard distribution enclosures.

Condition: Used
This Siemens HMX3B600 600A 600V 3-Pole Molded Case Circuit Breaker is in working condition. It was removed directly from a large manufacturing tool that was actively in service at a solar company that closed in 2019. The breaker body shows typical light surface wear consistent with industrial use. The clear plastic terminal shroud/enclosure and the manual operating handle are included. The ASKP4 auxiliary switch (Pocket 2) is installed on the unit. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
HMX3B600
MPN:
HMX3B600
Secondary Model:
3VL6160-2KN30-0AC1
Type:
Molded Case Circuit Breaker (MCCB)
SKU:
52214
Series:
VL Series / VL800
Voltage Rating:
600V AC
Current Rating:
600A
Number of Poles:
3-Pole (3PH)
Interrupting Capacity:
65kA @ 480V
Trip Unit Type:
Thermal Magnetic (TM, LI)
Trip Unit:
Non-Interchangeable, Disparador 525
Ambient Temperature Rating:
40°C
Mounting Type:
Bolt-On
Lugs:
Lugs Not Included
Reverse Fed:
Suitable for Reverse Fed Applications
Standards:
UL 489
NEMA Rating:
65kA / 480V
Auxiliary Switch:
ASKP4 Auxiliary Switch (Pocket 2) — installed
Auxiliary Switch PN:
ASKP4
Enclosure / Accessory:
Includes clear plastic enclosure/shroud with knob
Catalog Number:
HMX3B600 / 3VL6160-2KN30-0AC1
Additional Part Number:
3VL6180-2RR30-0AA0
Enclosure Part Number:
3VL9660-7KN30 (MT3-60)
Seller Notes:
Includes clear plastic terminal shroud/enclosure and operating handle/knob. Auxiliary switch ASKP4 installed.
Country/Region of Manufacture:
Mexico
Condition:
Used – Pulled from Working Environment
Condition Notes:
Siemens HMX3B600 600A 600V 3-Pole MCCB in working condition. Removed from active service at a solar manufacturing facility (closed 2019). Includes clear plastic terminal shroud and operating handle. ASKP4 aux switch installed.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
