AutomationDirect F3P 35k Molded Case Circuit Breaker 100A 600V 3-Pole Eaton

AutomationDirect F3P 35k Molded Case Circuit Breaker 100A 600V 3-Pole Eaton

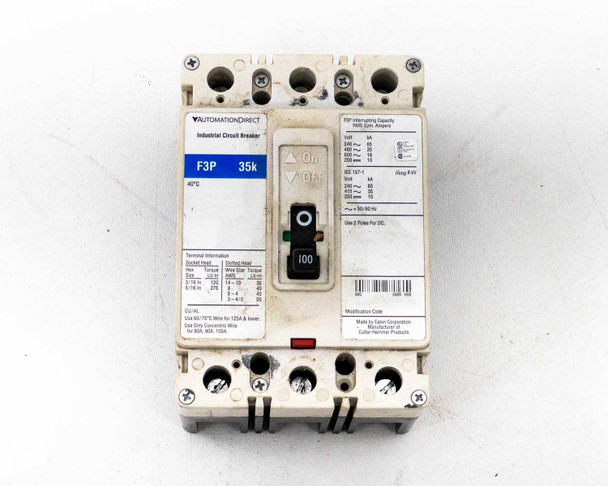

The AutomationDirect F3P 35k is a 3-pole molded case circuit breaker (MCCB) rated at 100 amperes and 600V AC, with a 35kA interrupting capacity. It is manufactured by Eaton (Cutler-Hammer Products) and sold under the AutomationDirect brand. Molded case circuit breakers of this type provide overcurrent and short-circuit protection for industrial power distribution panels, motor branch circuits, and feeder circuits in commercial and industrial electrical systems.

Specifications & What's Included

• Brand: AutomationDirect (manufactured by Eaton / Cutler-Hammer)
• Model: F3P 35k
• Amperage Rating: 100A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Interrupting Capacity (RMS Sym. Amps): 65kA @ 240V; 35kA @ 480V; 18kA @ 600V; 10kA @ 250V DC
• Interrupting Capacity (IEC 157-1): 65kA @ 240V; 35kA @ 415V; 10kA @ 250V DC
• Impulse Voltage (Uimp): 8 kV
• Frequency: 50/60 Hz
• Ambient Temperature Rating: 40°C
• DC Use: Requires 2 poles for DC operation
• Conductor Material: CU/AL (copper or aluminum)
• Wire Range: 14–10 AWG to 3–4/0 AWG
• Wire Temperature Rating: 60/75°C wire for 125A and lower; concentric wire only for 80A, 90A, 100A
• Terminal Torque (Socket Head): 3/16 in hex — 120 lb-in; 5/16 in hex — 275 lb-in
• Terminal Torque (Slotted Head): 14–10 AWG — 35 lb-in; 8 AWG — 40 lb-in; 6–4 AWG — 45 lb-in; 3–4/0 AWG — 50 lb-in
• Certifications: UL Listed, CSA
• Form Factor: Molded case, panel/din mount
• Includes: Circuit breaker unit only

Applications

Molded case circuit breakers like the F3P series are a standard component in industrial and commercial electrical distribution systems. They are used to protect branch circuits, feeder circuits, and motor circuits from overcurrent conditions and short circuits in switchboards, panelboards, motor control centers (MCCs), and industrial control panels. The 3-pole 600V configuration is well suited for three-phase power distribution in manufacturing facilities, machine tool applications, HVAC systems, pumping stations, and other industrial environments where 480V or 600V three-phase service is present. The F3P series is rated for both AC and DC applications (2-pole configuration for DC), and its UL and CSA listings make it suitable for use in North American industrial installations. Eaton's Cutler-Hammer product line, which manufactures these breakers for AutomationDirect, has a long history supplying molded case breakers to industrial OEMs and panel builders.
