Sherwood 300-1290-03 Model 10 Sun Server Power Sequencer 200-240V 47/63Hz 24A

(No reviews yet) Write a Review
SKU:
11674
MPN:
300-1290-03
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Shipping:
Calculated at Checkout

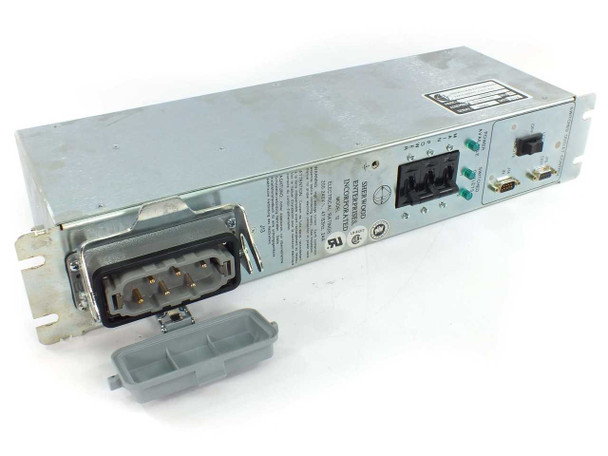

  • Sherwood Model 10 Power Sequencer 300-1290-03 – angled front-left view showing large input connector and top panel with indicator lights and switches

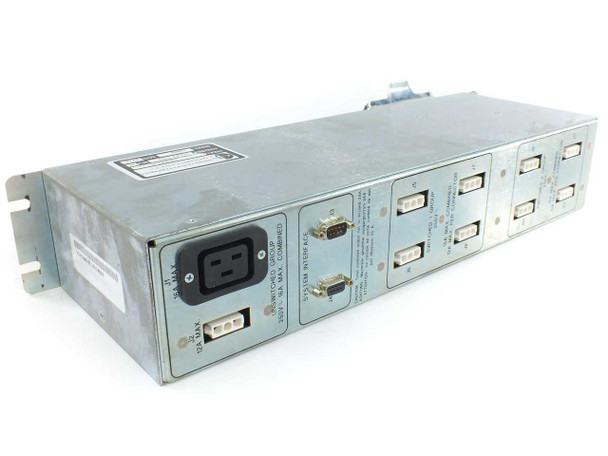

  • Sherwood Model 10 Power Sequencer – rear panel showing IEC power inlet, switched outlet groups with DB9 serial interface ports and System Interface label

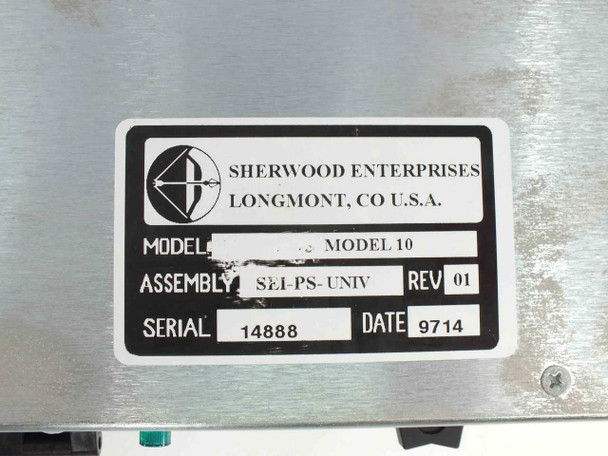

  • Sherwood Enterprises Model 10 nameplate label showing Assembly SEI-PS-UNIV Rev 01, Serial 14888, Date 9714, Longmont CO USA
  • Sherwood Model 10 – Switched Outlet Control panel detail showing Local/Remote toggle switch, J14 IN and J15 OUT DB9 ports, and Power Available and Switched Outlets indicator LEDs

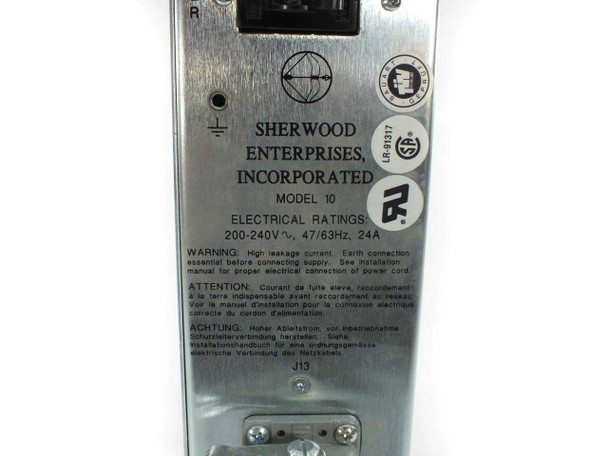

  • Sherwood Model 10 – electrical ratings label showing 200-240V, 47/63Hz, 24A and safety certification marks including UL and CSA
  • Sherwood Model 10 – large multi-pin input connector detail with gray protective cover partially open showing gold-pin contact array
  • Sherwood Model 10 – unswitched group panel showing J1 IEC outlet (16A max) and J2 connector (12A max), plus J3 and J4 System Interface DB9 ports
  • Sherwood Model 10 – switched outlet panel showing J5-J8 connectors in Switched 1 Group (250V, 15A combined, 12A per connector) and J9-J10 Switched 2 Group connectors
  • Sherwood Model 10 – switched outlet panel showing J7-J12 connectors including Switched 2 Group (250V, 15A combined, 12A per connector)
$50.00
Was: $100.00
Current Stock: 5

Sold Out

Description

Sherwood 300-1290-03 Model 10 Sun Server Power Sequencer 200-240V 47/63Hz 24A

Rackmount power sequencer designed for Sun Microsystems servers and workstations. Provides switched and unswitched outlet control with local or remote operation via DB9 serial interface.

Specifications & What's Included

  • Input: 200-240V AC, 47/63Hz, 24A Max
  • Switched outlets: Two groups, 15A combined max (12A per connector)
  • Unswitched outlets: 250V, 16A combined max (J1: 16A, J2: 12A)
  • Control: Local/Remote switchable via DB9 serial (J3, J4 system interface; J14 IN, J15 OUT)
  • Form factor: Rackmount
  • Unit only; no cables or documentation included

Applications

This power sequencer was used to manage startup sequencing and power distribution across Sun server and workstation installations. It enabled remote power control and outlet switching through serial interfaces, commonly deployed in data centers and server rooms where coordinated power management was required. Compatible with Sun Microsystems platforms from the 1990s–2000s era.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Sherwood Enterprises Model 10 Sun Server Power Sequencer (300-1290-03) has not been powered or tested at our facility and is being sold in as-inspected condition. The unit appears intact and complete externally, with normal surface wear consistent with prior rack installation — light scuffing and minor marks on the aluminum chassis. All outlet connectors, DB9 interface ports, and the main input connector appear undamaged. The gray protective cover for the input connector is present. Please view our full photo set for a detailed look at the cosmetic condition and contact us if you have any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sherwood Enterprises
Model:
Model 10
MPN:
300-1290-03
Secondary Model:
SEI-PS-UNIV
Hardware Revision:
Rev 01
SKU:
11674
Condition:
Used – Untested / As-Inspected
Seller Notes:
Unit only; no cables or documentation included.
Country of Manufacture:
USA
Form Factor:
Rackmount
Power Requirements:
200-240V AC, 47/63Hz, 24A Max
Voltage Rating:
200-240V AC
Current Rating:
24A Max Combined
Frequency:
47/63Hz
Outlet Groups:
Switched Group 1, Switched Group 2, Unswitched Group
Switched Outlet Max:
15A Max Combined, 12A Max Per Connector
Unswitched Outlet Max:
250V, 16A Max Combined (J1: 16A, J2: 12A)
Interface Type:
DB9 Serial (J3, J4 System Interface; J14 IN, J15 OUT)
Control Mode:
Local / Remote switchable
Compatible With:
Sun Microsystems servers and workstations
Application:
Server power sequencing and switched outlet control
Condition Notes:
This Sherwood Model 10 Power Sequencer (300-1290-03) has not been powered or tested at our facility and is sold as-inspected. Chassis shows normal rack-service wear. All connectors appear intact. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

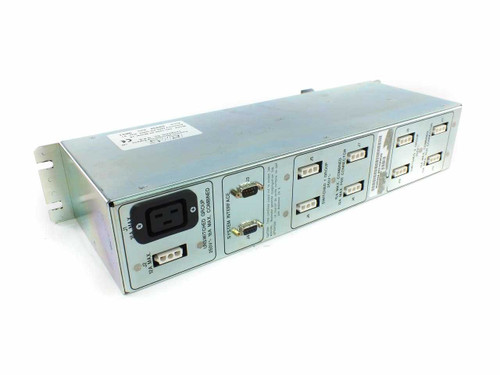

EMS 300-1290-03 Model 10 Power Sequencer – angled rear-left view showing multi-pin power input connector and DB9 control ports EMS 300-1290-03 Model 10 Power Sequencer – angled right-side view showing IEC AC input, DB9 system interface ports, and switched outlet connectors
Add to Cart
Quick view

EMS 300-1290-03 Model 10 Sun Server Power Sequencer 200-240V 24A Rackmount

EMS

$70.00
Was: $150.00
EMS 300-1290-03 Model 10 Sun Server Power Sequencer 200-240V 24A Rackmount A rackmount power sequencer designed for Sun Microsystems server systems. This unit distributes and controls power delivery...
51796
SKU:
51796
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Brand:
EMS (Electronic Manufacturing Systems)
Model:
300-1290-03 Model 10
MPN:
300-1290-03
Secondary Model:
EMS-PS-UNIV Rev. 01
SKU:
51796
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no cables included. Inspected and pulled from service.
Form Factor:
Rackmount
Compatible With:
Sun Microsystems Server Systems
Country of Manufacture:
USA
Power Requirements:
200-240V AC, 47/63Hz, 24A
Voltage Rating:
200-240V AC
Current Rating:
24A
Frequency:
47/63Hz
Unswitched Group Rating:
250V, 16A Max Combined
Switched Group 1 Rating:
250V, 15A Max Combined, 12A Max Per Connector
Switched Group 2 Rating:
250V, 15A Max Combined, 12A Max Per Connector
Control Interface:
DB9 (J14 IN, J15 OUT, J4, J9 System Interface)
Control Mode:
Local / Remote switchable
Outlet Connectors:
Multi-pin blade connectors (J1–J12), IEC C19 (J1 unswitched)
Certifications:
CE, UL
Type:
Power Sequencer / Power Distribution Unit
Condition Notes:
This EMS 300-1290-03 Model 10 Sun Server Power Sequencer has been inspected and pulled from a working environment. Good used condition with minor surface wear. All connectors and ports appear intact. Please contact us with any questions.

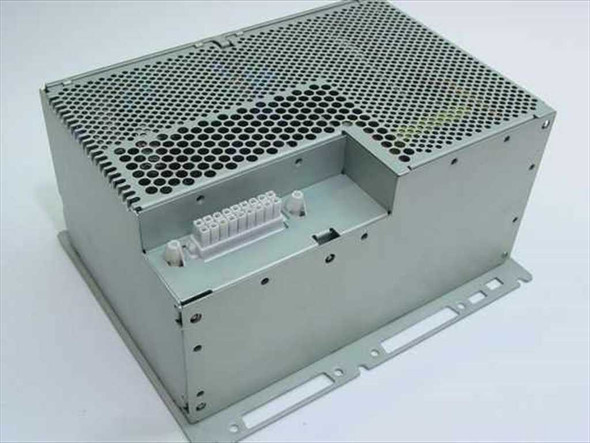

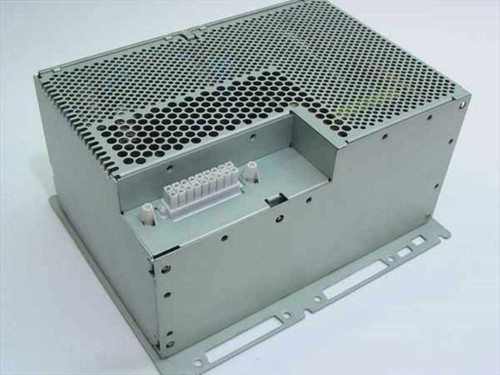

Sun APS-88 300-1283 185W power supply – top and left side view showing perforated metal housing Sun APS-88 300-1283 185W power supply – bottom view showing multi-pin output connector
Add to Cart
Quick view

Sun Microsystems 300-1283 APS-88 185W Power Supply 100-240V +5V 15A +12V 12A

Sun

$60.00
Was: $125.00
Sun Microsystems 300-1283 APS-88 185W Power Supply 100-240V +5V 15A +12V 12A Internal power supply unit designed for Sun Microsystems workstations and servers. Delivers 185W continuous output across...
21375
SKU:
21375
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Brand:
Sun Microsystems
Model:
APS-88
MPN:
300-1283
Secondary MPN:
2-439-865-01
SKU:
21375
Condition:
Used – Inspected and Tested
Seller Notes:
Power supply only; no additional accessories included.
Country of Manufacture:
Japan
Form Factor:
Internal / Desktop
Power Requirements:
100-240V AC, 2.7-1.2A, 47-63Hz
Output Voltage:
+5V DC, +12V DC
Output Current:
+5V @ 15A, +12V @ 12A
Max Continuous Power:
185W
Certifications:
UL, CSA, TUV
Compatible With 1:
Sun Microsystems workstations and servers
Compatible With 2:
Systems using Sun p/n 300-1283
Condition Notes:
This Sun Microsystems APS-88 300-1283 185W power supply has been tested and is in good working order. Shows light wear from prior use. Both fans and output connector are present and undamaged.

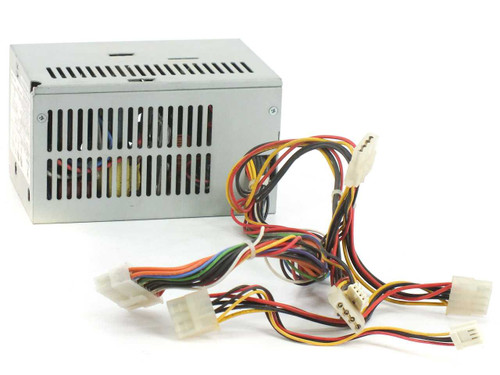

Power Man HP-A1463F5 100W ATX power supply — front and side view showing IEC inlet, power switch, cooling fan, and multi-color output harness Power Man HP-A1463F5 ATX power supply — side and top view showing ventilation slots and full output cable harness with Molex and ATX connectors
