null
EMS

EMS 300-1393-01 Model 10 AC Power Sequencer 200-240V 24A Switched Outlets

(No reviews yet) Write a Review
SKU:
25450
MPN:
300-1393-01
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
18.00 LBS
Shipping:
Calculated at Checkout

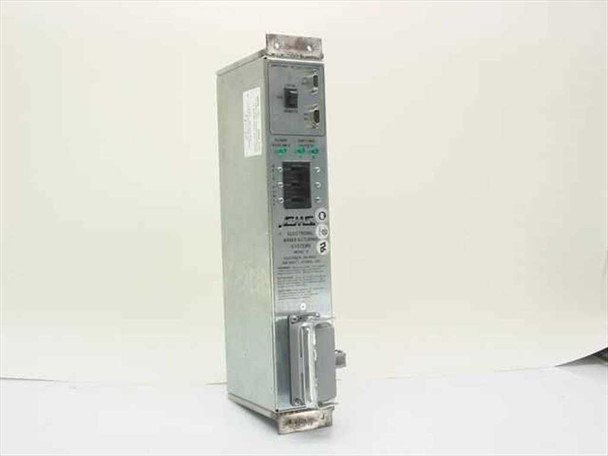

  • EMS 300-1393-01 Model 10 AC Power Sequencer – left-side angled view showing front panel and connector housing
  • EMS 300-1393-01 Model 10 AC Power Sequencer – right-side view showing rear panel with DB9 connectors and switched outlet ports

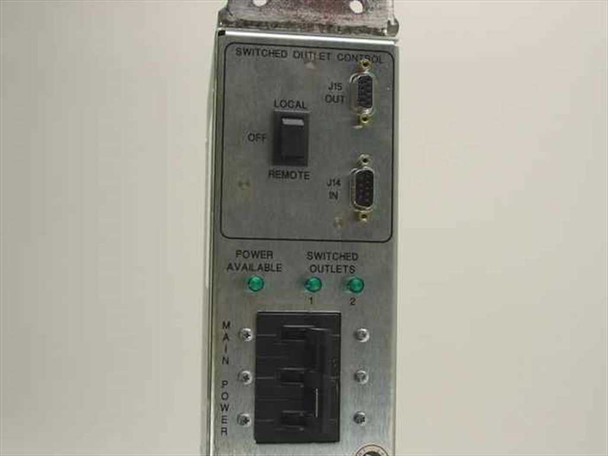

  • EMS Model 10 front panel close-up showing Switched Outlet Control section, Local/Off/Remote toggle switch, Power Available indicator, Switched Outlets 1 and 2 indicators, Main Power switch, and DB9 J15 IN and OUT connectors
  • EMS Model 10 rating plate label showing brand name Electronic Manufacturing Systems, electrical ratings 200-240V 47/63Hz 24A, and safety certification marks

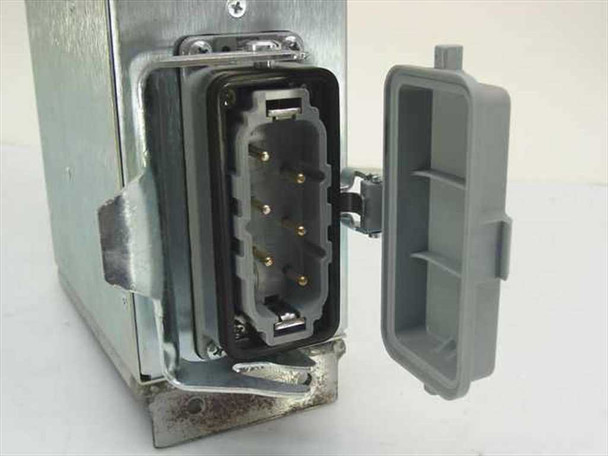

  • EMS 300-1393-01 Model 10 bottom connector close-up showing multi-pin power input connector with protective cover open

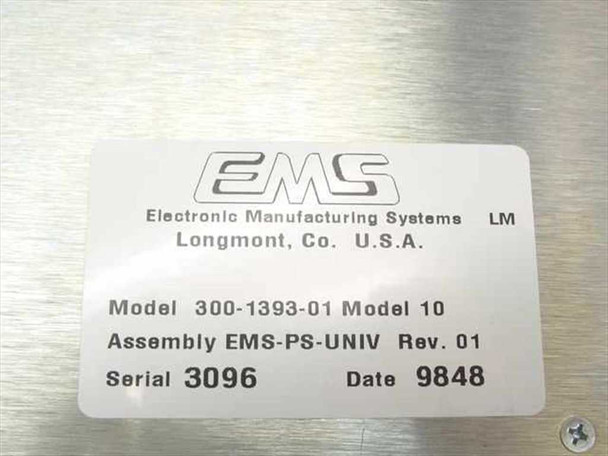

  • EMS 300-1393-01 Model 10 data label showing model 300-1393-01 Model 10, Assembly EMS-PS-UNIV Rev. 01, Serial 3096, Date 9848, manufactured in Longmont CO USA
$18.30
Was: $50.00
Current Stock: 3

Sold Out

Description

EMS 300-1393-01 Model 10 AC Power Sequencer 200-240V 24A Switched Outlets

AC power sequencer for industrial and telecom equipment racks. Controls sequential switching of two outlet banks via local or remote command over DB9 serial interface.

Specifications & What's Included

  • Voltage Rating: 200–240V AC, 47/63 Hz
  • Current Rating: 24A
  • Switched Outlets: 2
  • Control: Local/Remote switchable via DB9 serial (J15 IN/OUT)
  • Form Factor: Modular card chassis mount
  • Assembly: EMS-PS-UNIV Rev. 01
  • Manufactured in United States

Applications

Power sequencers of this type manage startup and shutdown timing for multi-unit telecom and industrial systems, preventing inrush current and supply overload. Commonly integrated into equipment racks and power distribution frames requiring synchronized outlet activation. Serial control interface supports integration with legacy and modern monitoring systems. Typical use includes data centers, telecom hubs, and industrial control environments.

Condition: Used
This EMS Electronic Manufacturing Systems 300-1393-01 Model 10 AC Power Sequencer has been inspected and is in good condition. The unit shows normal wear consistent with prior use. Note that 2 terminal covers are missing. A compatible cable for this unit is available separately at PID 25557. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
EMS Electronic Manufacturing Systems
Model:
300-1393-01
Secondary Model:
Model 10
MPN:
300-1393-01
Assembly:
EMS-PS-UNIV Rev. 01
SKU:
25450
Type:
AC Power Sequencer
Voltage Rating:
200-240V AC
Current Rating:
24A
Frequency:
47/63 Hz
Number of Switched Outlets:
2
Control Mode:
Local / Remote (switchable)
Interface Type:
DB9 serial (J15 IN, J15 OUT)
Form Factor:
Modular / Card Chassis Mount
Condition:
Used – Inspected and in Good Condition
Country/Region of Manufacture:
United States
Seller Notes:
2 terminal covers missing. Compatible cable available at PID 25557.
Review Status:
Auto-Approved (needs review) 2026-07-04
Condition Notes:
EMS 300-1393-01 Model 10 AC Power Sequencer inspected and in good condition. Normal wear. 2 terminal covers missing. Compatible cable available at PID 25557.
View AllClose
