Senior Flexonics 304-3/4 Flexible SS Braided Hose 28" 3/4" ID 304 Stainless Steel

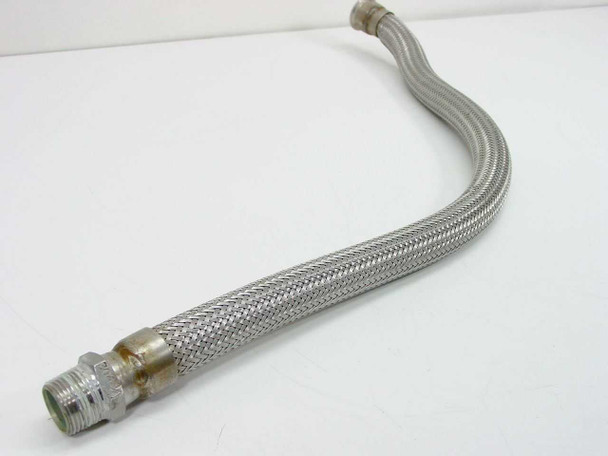

The Senior Flexonics 304-3/4 is a flexible metal hose constructed with a corrugated 304 stainless steel inner core and a stainless steel wire braid outer jacket. It measures 28 inches in overall length with a 3/4-inch nominal inner diameter and a 1.05-inch nominal outer diameter. One end terminates in a male threaded fitting; the other end is fitted with a high-pressure swivel nut measuring 1.25 inches across. The fitting collars are stamped with the Senior Flexonics name and the "304" alloy designation, confirming stainless construction throughout.
Specifications & What's Included
- Brand: Senior Flexonics
- Model / Part Number: 304-3/4
- Overall Length: 28 inches
- Nominal Hose ID: 0.75 in (3/4")
- Nominal Hose OD: 1.05 in
- High-pressure swivel nut OD: 1.25 in
- Open thread end OD: 1.05 in
- End fittings: one male threaded end; one female swivel nut end
- Material: 304 stainless steel (inner core and outer braid)
- Braid: stainless steel wire over-braid

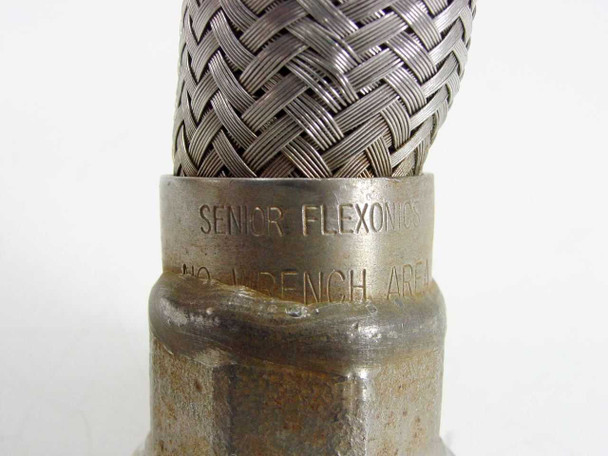

- "NO WRENCH AREA" designation stamped on swivel nut collar
- Includes: hose only — no additional accessories
Applications
Flexible stainless steel braided hoses of this type are standard components in vacuum systems, laboratory gas lines, industrial fluid transfer, and chemical process piping where vibration absorption, thermal expansion accommodation, or routing flexibility is required. The 304 stainless steel construction makes them suitable for use with a wide range of gases and liquids, including corrosive media, at elevated pressures and temperatures. Senior Flexonics is a well-established U.S. manufacturer of flexible piping products; their braided hose assemblies are commonly found in semiconductor fabrication equipment, vacuum chamber systems, compressed gas delivery, HVAC, and general industrial process lines. The 3/4-inch size and standard threaded end fittings make this hose compatible with a broad range of industrial pipe fittings and system connections.
This Senior Flexonics 304-3/4 flexible stainless steel braided hose has been inspected and is in good used condition. The braided stainless outer jacket is intact with no broken strands visible. The fittings show some surface oxidation and patina consistent with prior service use — visible on the end nuts and collar — but the threads and bore appear clean and undamaged. The hose retains its flexibility throughout its length. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Senior Flexonics |
Model: |
304-3/4 |
MPN: |
304-3/4 |
Type: |
Flexible Stainless Steel Braided Hose |
SKU: |
40050 |
Material: |
304 Stainless Steel |
Overall Length: |
28 inches |
Nominal Hose ID: |
0.75 in (3/4") |
Nominal Hose OD: |
1.05 in |
High Pressure Nut OD: |
1.25 in |
Open Thread End OD: |
1.05 in |
End Connection Type: |
One male threaded end, one female swivel nut |
Braid Type: |
Stainless Steel Wire Braid |
Application: |
Vacuum, gas, fluid transfer, industrial piping |
Condition: |
Used – Inspected, Good Condition |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Hose only; no additional accessories included. |
Condition Notes: |
Senior Flexonics 304-3/4 flexible SS braided hose inspected and in good used condition. Braid intact, threads and bore clean. Fittings show surface oxidation typical of prior use. Please view photos and contact us with questions. |
