Semi-Rigid Coax Cable SMA Male to SMA Male Right Angle 7-9 in 0.141 RF Jumper

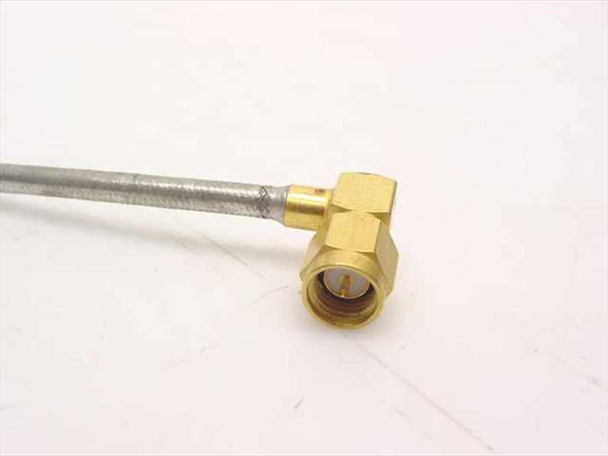

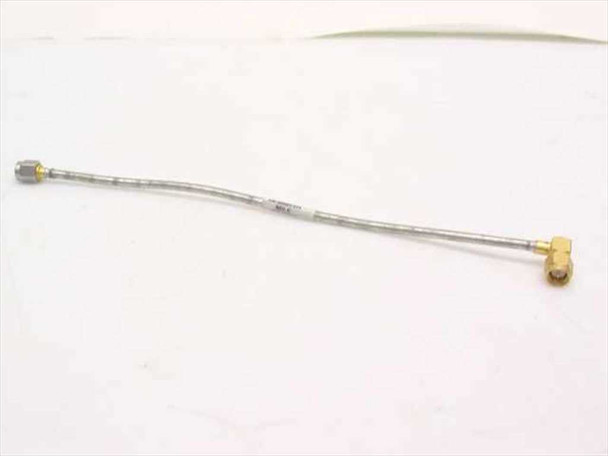

This is an unbranded semi-rigid coaxial RF jumper cable terminated with an SMA male (straight) connector on one end and an SMA male right-angle (90°) connector on the other. Individual lengths range from approximately 7 to 9 inches, and the cable body measures approximately 0.141 inches in outer diameter — consistent with standard UT-141 or equivalent semi-rigid coax stock. The outer conductor is a silver-toned braided/wrapped jacket, and both connectors feature gold-plated brass bodies with male center pins.
Specifications & What's Included
- Cable type: Semi-rigid coaxial (approx. UT-141 / 0.141" OD)
- Connector 1: SMA male — straight
- Connector 2: SMA male — right angle (90°)
- Cable length: Approximately 7–9 inches per cable
- Outer diameter: Approx. 0.141 in (3.58 mm)
- Impedance: 50 Ohm (standard SMA/semi-rigid)
- Outer jacket: Silver braided/wrapped semi-rigid construction
- Connectors: Gold-plated brass bodies
- Cable only — no additional accessories included
Applications
Semi-rigid coaxial cables with SMA connectors are a staple interconnect in RF, microwave, and millimeter-wave systems. UT-141-series semi-rigid coax — characterized by the 0.141" outer diameter — supports frequencies commonly up to 18 GHz or beyond depending on the connector grade, making these cables well-suited for signal routing between RF modules, synthesizers, spectrum analyzers, network analyzers, signal generators, and other test and measurement equipment. The right-angle SMA connector allows connection in tight spaces or at chassis edges where a straight connector would not fit. These cables are commonly found inside rack-mount RF instruments, satellite and microwave communication assemblies, radar subsystems, and semiconductor test setups. The SMA connector standard has been in continuous use since the 1960s and remains one of the most prevalent RF connector types in both commercial and military microwave applications today.
Semi-Rigid Coax Cable SMA Male to SMA Male Right Angle 7-9 in 0.141 RF Jumper — New / Open Box. This cable appears unused and ready to use. The original packaging may be opened or missing. Both SMA connectors are intact with no visible damage to the threads or center pins, and the cable jacket shows no signs of wear. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Semi-Rigid SMA-M to SMA-M Right Angle RF Jumper |
Type: |
Semi-Rigid Coaxial Cable / RF Jumper |
SKU: |
30001 |
Condition: |
Used – Pulled from Working Environment |
Connector 1: |
SMA Male (Straight) |
Connector 2: |
SMA Male (Right Angle / 90°) |
Cable Length: |
7–9 inches (approximate) |
Outer Diameter: |
Approx. 0.141 in (3.58 mm) |
Cable Type: |
Semi-Rigid Coaxial |
Impedance: |
50 Ohm |
Application: |
RF, Microwave, Test Equipment, Lab Bench |
Seller Notes: |
Cable only; no additional accessories included. |
Form Factor: |
Semi-Rigid Cable / Jumper |
Condition Notes: |
New / Open Box. Unused cable, opened or missing original packaging. Both SMA connectors intact, no visible damage. Cable jacket shows no wear. |
