Description
Scientific Atlanta PowerVu Plus D9224 DVB C-Band Digital Satellite Receiver IRD
The Scientific Atlanta PowerVu Plus D9224 is a professional-grade 2U rackmount integrated satellite receiver/decoder (IRD) designed for broadcast and headend applications. It receives and decodes DVB-compliant digital satellite transmissions, supporting both C-band and Ku-band reception with up to four LNB inputs. The D9224 outputs decoded audio and video through a comprehensive set of professional connectors suited for broadcast facility integration.
Specifications & What's Included

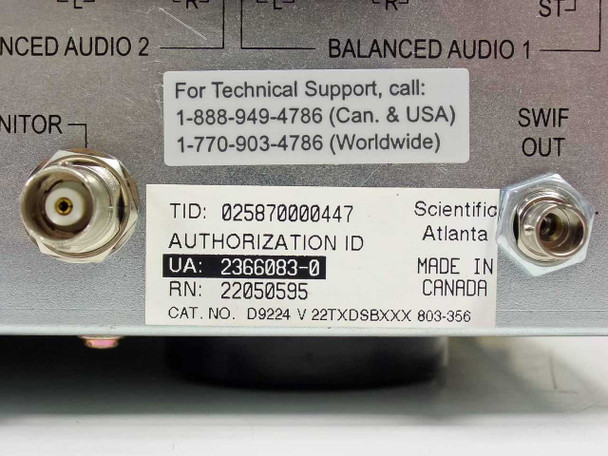

- Model: Scientific Atlanta PowerVu Plus D9224 (Cat. No. D9224 V 22TXDSBXXX 803-356)
- Standard: DVB (Digital Video Broadcasting)
- Frequency band: C-band and Ku-band (C/KU selectable)
- Form factor: 2U rackmount
- Power: 100–230V AC, 50–60 Hz, 1.4A MAX (universal input)
- Made in Canada

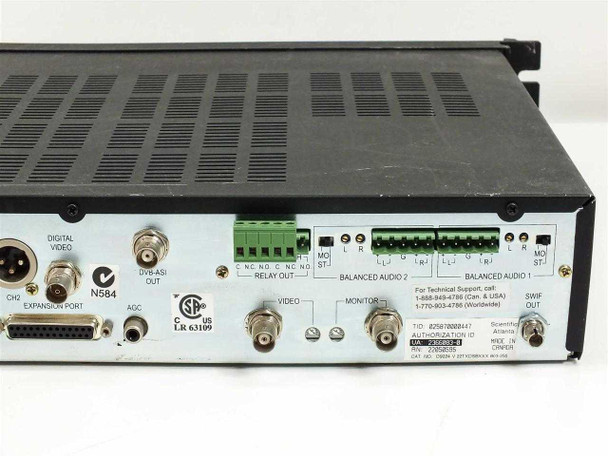

- LNB inputs: 4 x F-type (LNB 1, LNB 2, LNB 3, LNB 4)
- LNB power: 13V / 19V switchable
- RF input: F-type (RF IN)
- RF output: F-type (RF OUT)
- Digital audio output: 2 x XLR (CH1, CH2)
- Balanced audio: Balanced Audio 1 and Balanced Audio 2 (terminal block)
- Digital video output: BNC
- DVB-ASI output: BNC
- Video output: BNC (Video + Monitor)
- Expansion port: DB25
- SWIFT interface: SWIFT IN / SWIFT OUT
- Relay output: terminal block
- AGC port: present
- Front panel: green LED numeric display, SIGNAL and ALT indicators, numeric keypad (FRQ, SYM, POL, FEC, BER, AFC, SNR, SWIF, ALT, USER, MENU, NEXT, STORE, YES, VIEW), STANDBY and CHAN ▲▼ controls, card slot

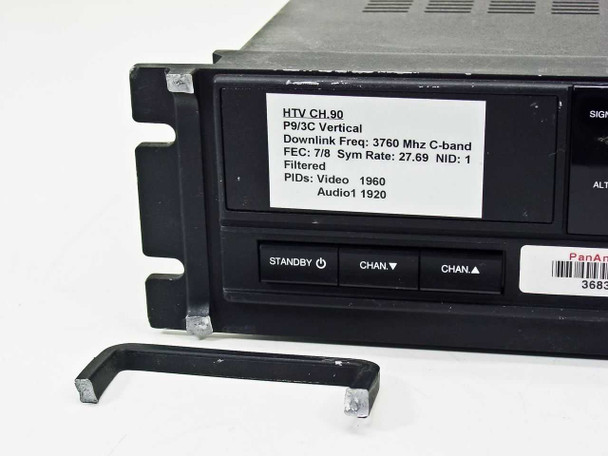

- Condition notes: front handle bracket is broken (detached piece included); rubber feet are missing
- Does not include programming, conditional access authorizations, cables, rack hardware, or service agreements
Applications
The PowerVu Plus platform was Scientific Atlanta's professional digital satellite receiver line for broadcast headend and cable television distribution facilities. These IRDs were widely deployed by cable operators, television networks, broadcast affiliates, and satellite uplink facilities throughout the 1990s and 2000s to receive encrypted and clear DVB-standard satellite feeds. The D9224 variant supports Scientific Atlanta's proprietary PowerVu conditional access system, which was commonly used for distributing network programming and sports content via C-band satellite to cable headends and broadcast stations across North America and internationally. Units like this are still found in legacy cable headend installations, satellite monitoring facilities, and surplus broadcast equipment inventories, and are sought by engineers maintaining or reverse-engineering older distribution infrastructure.
This Scientific Atlanta PowerVu Plus D9224 digital satellite receiver is in used condition with two cosmetic issues noted: the front handle bracket is broken (the detached piece is included), and the rubber feet are missing from the bottom of the chassis. The unit has not been powered up or tested at our facility, but it was pulled from a working operational environment where it was previously in service. Please note that this receiver does not include any programming, conditional access authorizations, or service agreements from content providers — securing any required clearances is the buyer's responsibility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Scientific-Atlanta |
Model: |
D9224 |
MPN: |
D9224 V 22TXDSBXXX 803-356 |
Secondary Model: |
PowerVu Plus |
SKU: |
39458 |
Type: |
Professional Digital Satellite Receiver / IRD |
Standard: |
DVB |
Frequency Band: |
C-Band / Ku-Band |
LNB Inputs: |
4 x F-type (LNB 1–4) |
RF Input: |
F-type RF IN |
RF Output: |
F-type RF OUT |
Digital Audio Output: |
2 x XLR (CH1, CH2) |
Balanced Audio: |
Balanced Audio 1 & 2 (terminal block) |
Digital Video Output: |
BNC |
DVB-ASI Output: |
BNC |
Video Output: |
BNC (Video + Monitor) |
Expansion Port: |
DB25 |
SWIFT Interface: |
SWIFT IN / SWIFT OUT |
LNB Power: |
13V / 19V (switchable) |
Relay Output: |
Terminal block |
AGC Port: |
Yes |
Power Requirements: |
100–230V AC, 50–60 Hz, 1.4A MAX |
Form Factor: |
2U Rackmount |
Country/Region of Manufacture: |
Canada |
Seller Notes: |
Receiver only — no programming, authorizations, cables, or rack hardware included. |
Condition Notes: |
This Scientific Atlanta PowerVu Plus D9224 satellite receiver has a broken front handle (piece included) and missing rubber feet. Not tested at our facility; pulled from a working environment. No programming or content authorizations included. |
