Schneider

Schneider LV431631 NSX250F 200A TM200D Molded Case Circuit Breaker 3-Pole w/

(No reviews yet) Write a Review
SKU:
52237
MPN:
LV431631
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
10.00 LBS
Shipping:
Calculated at Checkout
  • Schneider LV431631 NSX250F 200A molded case circuit breaker front view with rotary ON/OFF knob assembly
  • Schneider LV431631 NSX250F circuit breaker rear view showing 3-pole terminal lugs and label strip
  • Close-up of NSX250F rotary knob face plate showing ON, Trip, Reset, and OFF positions
  • Bottom terminal side of Schneider LV431631 NSX250F showing load-side terminal lugs labeled 2, 4, 6
  • Top (line-side) terminal view of NSX250F showing 3-pole terminals labeled 1, 3, 5 and 250F markings

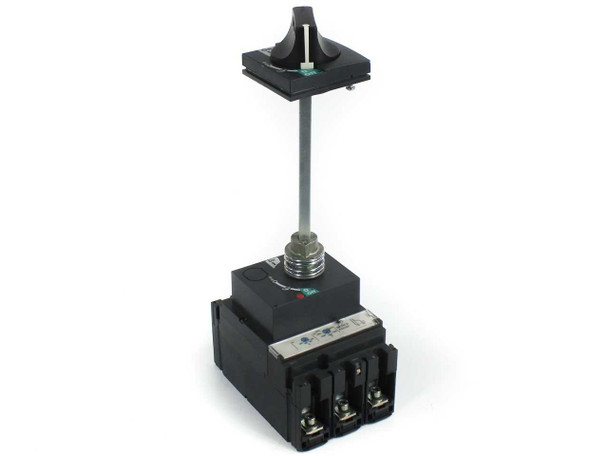

  • Side profile of Schneider LV431631 NSX250F circuit breaker with extended rotary shaft and knob

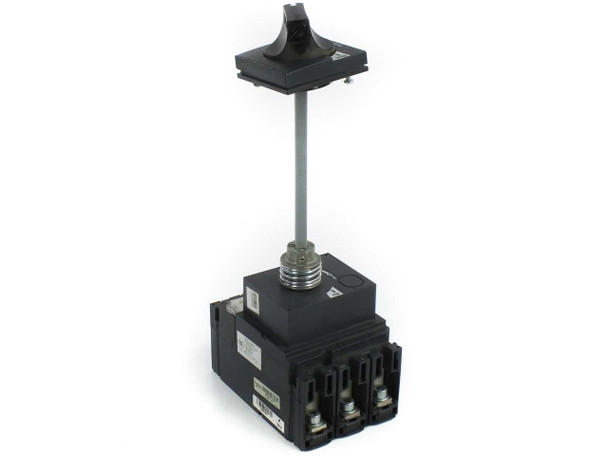

  • Alternate side profile of Schneider NSX250F with rotary knob extended shaft showing full assembly height
  • Rear label view of Schneider LV431631 NSX250F showing CCC certification, Schneider Electric branding, and part number LV431631
$550.00
Was: $1,100.00
Current Stock: 1

Sold Out

Description

Schneider LV431631 NSX250F 200A TM200D Molded Case Circuit Breaker 3-Pole w/ Knob

Molded case circuit breaker (MCCB) rated for 200A, 3-pole configuration with thermal-magnetic trip unit. Provides overcurrent and short-circuit protection in industrial and telecom power distribution systems.

Specifications & What's Included

  • Brand: Schneider Electric; Model: NSX250F; MPN: LV431631
  • Trip Unit: TM200D (thermal-magnetic)
  • Current Rating: 200A; 3-Pole
  • Ir Setting Range: 160–200A (adjustable); Im Setting Range: 1200–2000A (adjustable)
  • Actuator: Rotary ON/OFF knob with extended shaft
  • Mounting: Fixed panel mount; Dimensions: 13" x 7" x 4"
  • Certifications: CCC (China Compulsory Certification)

Applications

NSX250F MCCBs are used in industrial control panels, power distribution boards, and telecom infrastructure for load switching and fault protection. Compatible with Schneider's compact NSX frame series. Commonly deployed in manufacturing facilities, data centers, and utility switchgear where adjustable trip settings and manual control are required.

Condition: Used
This Schneider Electric LV431631 NSX250F 200A Molded Case Circuit Breaker has been inspected and ohm-tested at our facility. It passes the ohm meter test for both the ON and OFF functions and is in good working order. The breaker body and rotary knob assembly show normal wear consistent with prior use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Schneider Electric
Model:
NSX250F
MPN:
LV431631
Type:
Molded Case Circuit Breaker (MCCB)
SKU:
52237
Trip Unit:
TM200D
Current Rating:
200A
Number of Poles:
3
Frame Series:
Compact NSX250F
Compatible Frame:
NSX100 / NSX160 / NSX250
Ir Setting Range:
160–200A (adjustable per label)
Im Setting Range:
1200–2000A (adjustable per label)
Trip Class / Curve:
TM (thermal-magnetic)
Actuator Type:
Rotary ON/OFF knob (extended shaft)
Mounting:
Fixed / panel mount
Dimensions:
13" x 7" x 4" (overall with knob)
Country/Region of Manufacture:
China
Certifications:
CCC (China Compulsory Certification)
Condition:
Used – Inspected and Tested
Seller Notes:
Includes rotary ON/OFF knob assembly with extended shaft
Condition Notes:
Schneider LV431631 NSX250F 200A MCCB inspected and ohm-tested. Passes ON and OFF function tests. In good working condition. Normal wear from prior use. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

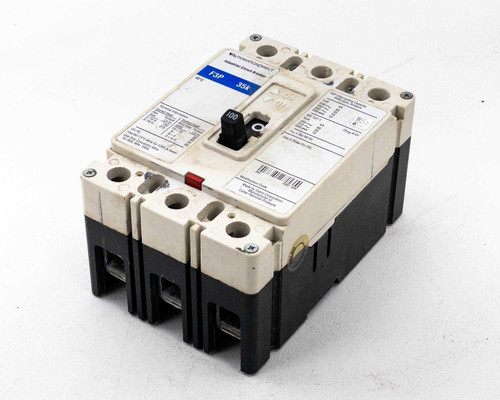

AutomationDirect F3P 35k molded case circuit breaker – three-quarter angle view showing full body, load-side terminals, and trip button AutomationDirect F3P 35k circuit breaker – top view showing three line-side terminal lugs and interrupting capacity rating label
