Schneider
-

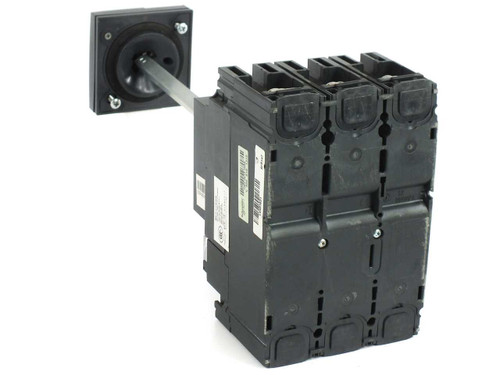

Schneider LV431631 NSX250F 200A TM200D Molded Case Circuit Breaker 3-Pole w/
Schneider
$550.00Was: $1,100.00Schneider LV431631 NSX250F 200A TM200D Molded Case Circuit Breaker 3-Pole w/ KnobMolded case circuit breaker (MCCB) rated for 200A, 3-pole configuration with thermal-magnetic trip unit. Provides...52237- SKU:
- 52237
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 10.00 LBS
- Brand:
- Schneider Electric
- Model:
- NSX250F
- MPN:
- LV431631
- Type:
- Molded Case Circuit Breaker (MCCB)
- SKU:
- 52237
- Trip Unit:
- TM200D
- Current Rating:
- 200A
- Number of Poles:
- 3
- Frame Series:
- Compact NSX250F
- Compatible Frame:
- NSX100 / NSX160 / NSX250
- Ir Setting Range:
- 160–200A (adjustable per label)
- Im Setting Range:
- 1200–2000A (adjustable per label)
- Trip Class / Curve:
- TM (thermal-magnetic)
- Actuator Type:
- Rotary ON/OFF knob (extended shaft)
- Mounting:
- Fixed / panel mount
- Dimensions:
- 13" x 7" x 4" (overall with knob)
- Country/Region of Manufacture:
- China
- Certifications:
- CCC (China Compulsory Certification)
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Includes rotary ON/OFF knob assembly with extended shaft
- Condition Notes:
- Schneider LV431631 NSX250F 200A MCCB inspected and ohm-tested. Passes ON and OFF function tests. In good working condition. Normal wear from prior use. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$550.00Was: $1,100.00 -
Crouzet Crydom GMS-ODC 84130104 DIN Rail Solid State Relay 4-32VDC 5-48VDC 3A
Schneider
$28.00Was: $60.00Crouzet Crydom GMS-ODC 84130104 DIN Rail Solid State Relay 4-32VDC 5-48VDC 3AThe Crouzet Crydom GMS-ODC is a compact DIN-rail-mounted solid state relay (SSR) designed for DC output switching in...47030- SKU:
- 47030
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Crouzet
- Model:
- GMS-ODC
- MPN:
- 84130104
- Secondary Model:
- 84130104
- SKU:
- 47030
- Type:
- Solid State Relay (SSR)
- Form Factor:
- DIN Rail Mount
- Input Voltage:
- 4-32 VDC
- Output Voltage:
- 5-48 VDC
- Output Current:
- 3 A
- Output Type:
- DC (ODC)
- Fuse:
- Littelfuse 229003S, 3 Amp
- Certifications:
- CE, UL (cULus)
- Country/Region of Manufacture:
- Mexico
- Seller Notes:
- Includes installed Littelfuse 229003S 3A fuse. Unit only, no additional accessories.
- Compatible With:
- Standard 35mm DIN rail installations
- Co-Brand:
- Crydom
- Condition Notes:
- Crouzet Crydom GMS-ODC 84130104 DIN-rail SSR inspected and in good used condition. Pulled from a working environment. Littelfuse 3A fuse installed and intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$28.00Was: $60.00
