Samsung MR18R0824BN1-CK8 64MB PC800-45 ECC Rambus RDRAM RIMM Memory Pair

Samsung MR18R0824BN1-CK8 64MB PC800-45 ECC Rambus RDRAM RIMM Memory Pair

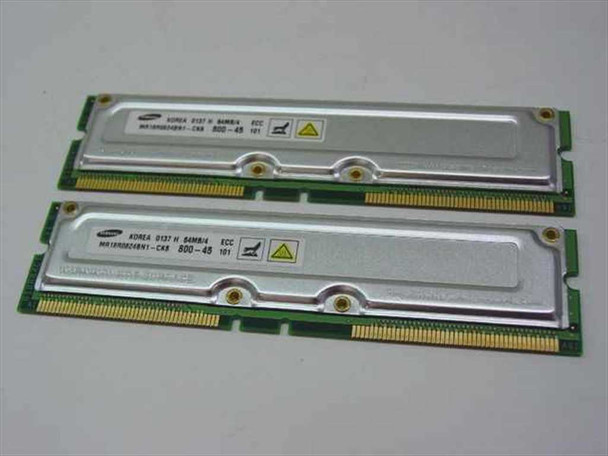

This listing is for a matched pair of Samsung MR18R0824BN1-CK8 RDRAM RIMM modules, providing 64MB per stick (128MB total) at PC800-45 speed with ECC error correction. Both modules carry Samsung's heat spreader design — standard for RDRAM, which runs significantly hotter than conventional DRAM — and are matched for use as a pair in RDRAM-based systems that require channels to be filled in identical pairs.

Specifications & What's Included

• Brand: Samsung
• Part Number: MR18R0824BN1-CK8
• Type: Rambus RDRAM (RIMM)
• Form Factor: 184-pin RIMM
• Capacity: 64MB per module — 128MB total (matched pair of 2)
• Chips per module: 4 (64MB/4 as printed on label)
• Speed: PC800-45 (800MHz, 45ns latency)
• ECC: Yes
• Made in: South Korea (date code 0137 — Week 37, 2001)
• Heat spreader: Silver aluminum heat spreader on component side
• Quantity: 1 matched pair (2 modules)

Applications

Rambus RDRAM was Intel's high-bandwidth memory technology of the late 1990s and early 2000s, introduced alongside the Pentium 4 platform. These modules are compatible with motherboards using Intel's 820, 840, 850, and 850E chipsets — platforms that required RDRAM exclusively and mandated matched pairs (or CRIMM continuity modules) in all slots. Systems that used this memory include early Pentium 4 desktops and Intel workstations from approximately 2000–2002. RDRAM was subsequently replaced by DDR SDRAM, making these modules relevant today primarily for maintaining, restoring, or upgrading legacy Pentium 4 systems from that era. ECC variants like this one were targeted at workstation and server platforms requiring error-correcting memory.
