Rohm

Rohm KF1504-AA Thermal Printhead Replacement Label Barcode Printer Head

(No reviews yet) Write a Review
SKU:
42616
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

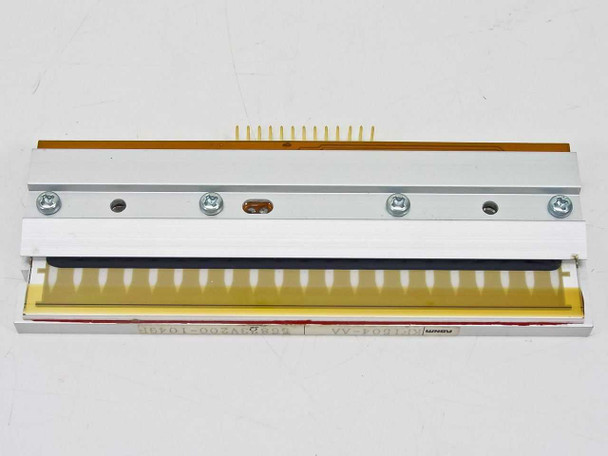

  • Rohm KF1504-AA thermal printhead – front view showing heating element strip and gold flex cable connector
  • Rohm KF1504-AA thermal printhead – rear view showing PCB with gold pin header connector and orange LED indicator

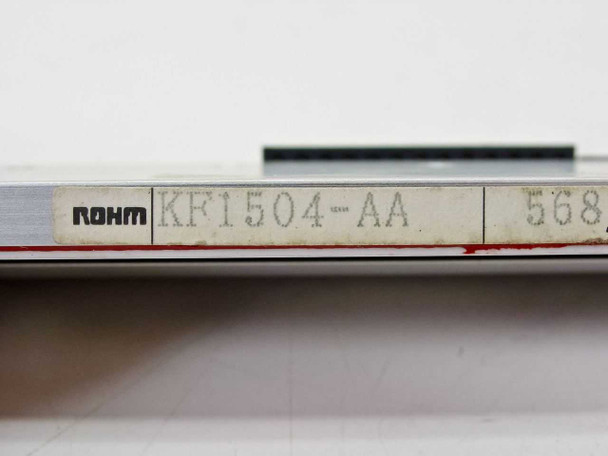

  • Rohm KF1504-AA thermal printhead – side label closeup showing model number KF1504-AA and Rohm branding

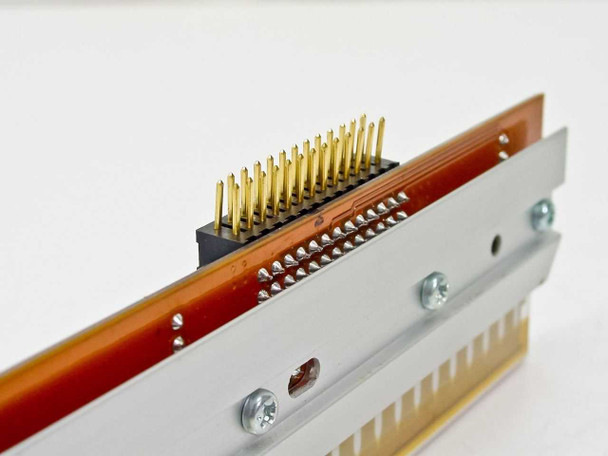

  • Rohm KF1504-AA thermal printhead – angled closeup of gold pin connector and PCB ribbon cable attachment
$40.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Rohm KF1504-AA Thermal Printhead Replacement Label Barcode Printer Head

The Rohm KF1504-AA is a thermal printhead designed as a direct replacement component for thermal label and barcode printers. It features a full-width heating element strip along the print edge and a gold pin header connector on the PCB for interface with the printer's control board. The aluminum mounting bar provides structural support and heat dissipation during operation.

Specifications & What's Included

  • Manufacturer: Rohm
  • Model / Part Number: KF1504-AA
  • Type: Thermal Printhead
  • Connector: Gold pin header (dual-row, approximately 28 pins visible)
  • Print element: Full-width resistive heating strip along bottom edge
  • Mounting: Aluminum bar with multiple screw mounting holes
  • PCB: Integrated flexible PCB ribbon connecting heating element to pin header
  • Includes: Printhead only — no cables, mounting hardware, or printer

Applications

Thermal printheads like the Rohm KF1504-AA are core consumable components in direct thermal and thermal transfer label printers, barcode printers, and point-of-sale receipt printers. The printhead contains a linear array of tiny resistive heating elements that selectively heat thermal paper or thermal transfer ribbon to produce text, barcodes, and graphics. Rohm is a Japanese semiconductor and electronic components manufacturer with a long history of producing OEM thermal printhead modules used across a wide range of industrial and commercial label printing platforms. Replacement printheads are commonly needed after extended print runs cause wear to the heating element, or following physical damage. This part is suitable for technicians servicing compatible printers or for stocking as a spare.

Condition: Used
This Rohm KF1504-AA Thermal Printhead is in used condition and has been visually inspected. The heating element strip and gold pin connector both appear clean and intact with no obvious damage visible in photos. The aluminum mounting bar shows light handling marks consistent with normal use. The label on the edge of the unit is intact and legible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Rohm
Model:
KF1504-AA
MPN:
KF1504-AA
Type:
Thermal Printhead
SKU:
42616
Connector Type:
Gold Pin Header
Compatible With:
Label and barcode thermal printers
Seller Notes:
Printhead only — no cables or mounting hardware included.
Country/Region of Manufacture:
Japan
Condition Notes:
This Rohm KF1504-AA Thermal Printhead has been visually inspected and appears to be in good used condition. Heating element and gold pin connector look clean and intact. Not bench-tested. Please contact us with questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
