Intermec

Intermec 8636AT Thermal Label Printer No Printhead Parts Repair 120V Serial

(No reviews yet) Write a Review
SKU:
8026
MPN:
8636AT
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
40.00 LBS
Shipping:
Calculated at Checkout
  • Intermec 8636AT thermal label printer – front and right-side view showing STATUS LED and control buttons

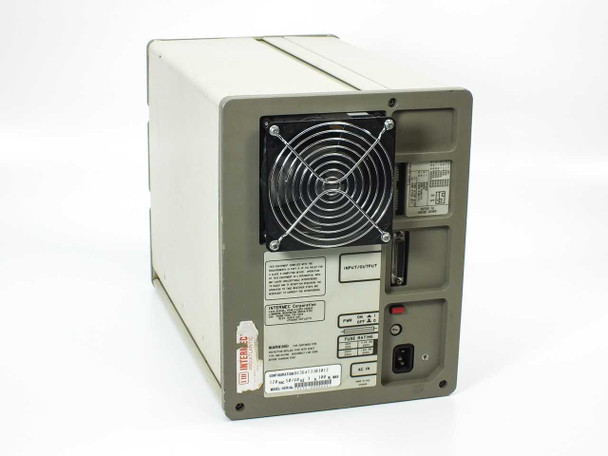

  • Intermec 8636AT thermal label printer – rear view showing large cooling fan, serial port, and AC inlet panel
  • Intermec 8636AT rating label showing configuration 8636AT3303012, 120VAC 50/60Hz 3A 300W Max, and fuse ratings
  • Intermec 8636AT front panel controls – STATUS indicator, SKIP, RELOAD, and SELF STRIP/BATCH buttons
  • Intermec 8636AT rear DIP switch panel showing baud rate, parity, and stop-bit configuration settings

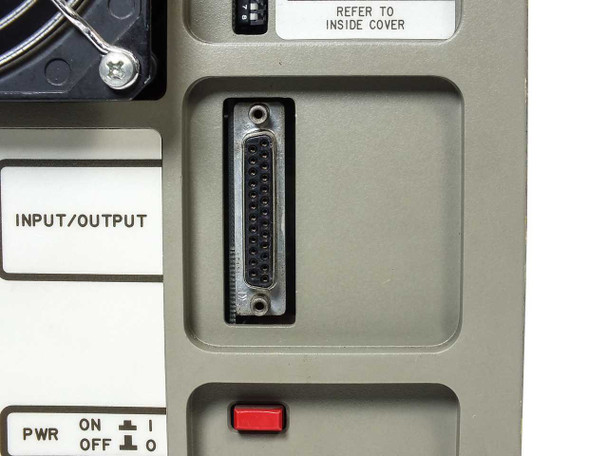

  • Intermec 8636AT rear panel INPUT/OUTPUT DB-25 serial connector and power switch
  • Intermec 8636AT rear AC inlet area showing power switch, fuse holder, and IEC AC inlet

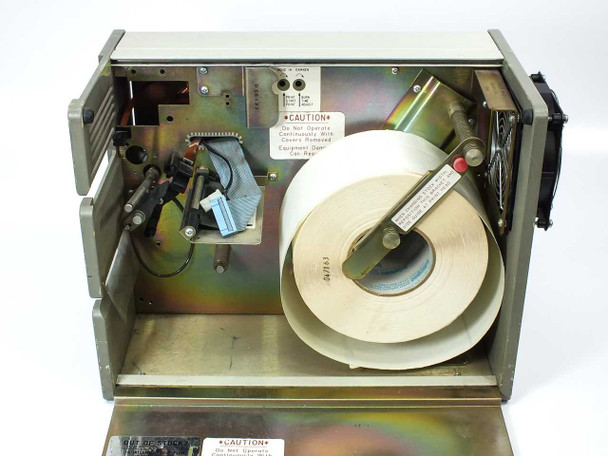

  • Intermec 8636AT interior view with cover open – label roll stock loaded, internal mechanism visible, printhead absent
  • Intermec 8636AT interior close-up – printhead mount area empty, ribbon cable and label path visible
  • Intermec 8636AT interior view – label roll stock on spindle and internal fan visible with cover open

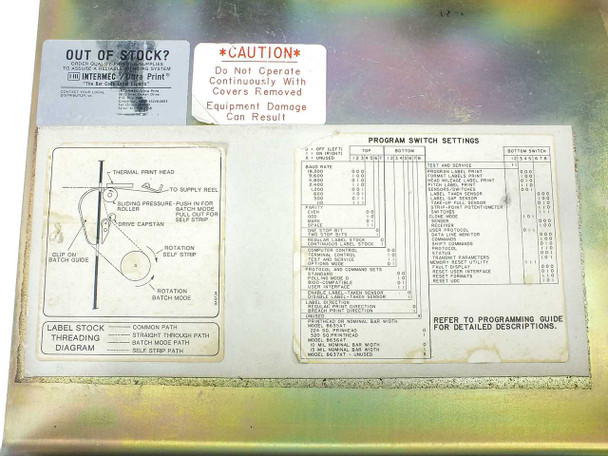

  • Intermec 8636AT Thermal Label Printer - No Print Head - As Is / Parts Unit
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Intermec 8636AT Thermal Label Printer No Printhead Parts Repair 120V Serial

Desktop thermal label printer designed for direct or transfer thermal printing. The 8636AT was used in industrial and logistics environments for barcode and label production via serial connection.

Specifications & What's Included

  • Model: 8636AT (MPN 8636AT3303012)
  • Power: 120V AC, 50/60 Hz, 300W max, 3A fuse
  • Interface: Serial DB-25, baud rates 110–19,200
  • Print Technology: Direct or Transfer thermal
  • Front controls: Status LED, Skip, Reload, Self Strip/Batch
  • Included: Chassis, transport mechanism, control board, label stock
  • Missing: Printhead

Applications

The 8636 series was deployed in warehousing, shipping, retail, and manufacturing operations for thermal label printing. Units communicated via RS-232 serial interface with host systems and terminals. Compatible with Intermec 8636 series peripherals and legacy industrial control systems using serial protocols.

Condition: For Parts or Not Working
This Intermec 8636AT Thermal Label Printer is missing its printhead and is being sold as-is for parts or repair. The unit is not guaranteed functional and has not been tested. The chassis, internal frame, label transport mechanism, control board, power supply section, and label roll stock (visible in photos) are all present. The front-panel controls (Status LED, Skip, Reload, and Self Strip/Batch buttons) and the rear serial DB-25 interface and IEC AC inlet are intact and appear undamaged. The exterior shows general wear consistent with prior use — some scuffing and minor marks on the panels. This is a parts-only listing; the missing printhead makes the unit non-operational as-is. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Intermec
Model:
8636AT
MPN:
8636AT3303012
Type:
Thermal Label Printer
SKU:
8026
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Printhead is missing. Label roll stock present. Sold as-is for parts or repair.
Configuration:
8636AT3303012
Power Requirements:
120 VAC, 50/60 Hz, 3A, 300W Max
Voltage:
120V AC
Fuse Rating (100V/120V):
3.0A SB, 250V
Fuse Rating (220V/240V):
1.6A SB, 250V
Interface Type:
Serial (DB-25)
Connector Type:
DB-25 (Input/Output), IEC AC inlet
Baud Rate:
110, 300, 600, 1200, 2400, 4800, 9600, 19200 baud
Print Technology:
Thermal (Direct or Transfer)
Form Factor:
Desktop
Country/Region of Manufacture:
United States
Front Panel Controls:
Status LED, Skip, Reload, Self Strip/Batch (Shift Roller)
Compatible With:
Intermec 8636 series label printers
Missing Parts:
Printhead not included
Condition Notes:
Intermec 8636AT thermal label printer sold as-is for parts — printhead is missing. Unit is not tested or guaranteed functional. Chassis, transport mechanism, control board, and label stock present. Exterior shows normal wear.
View AllClose

Related Products

Related Products

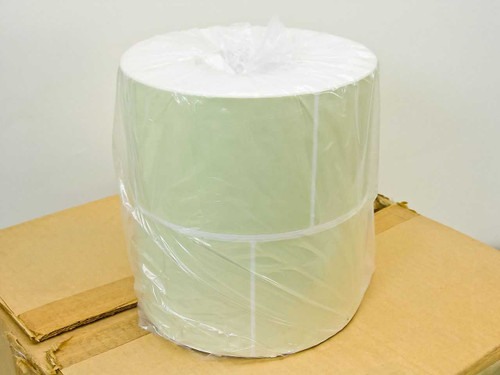

Intermec 050469 4x6 thermal label roll case — box with handwritten label reading 'Labels for Intermec 8636AT' Intermec 050469 thermal label roll — single large roll in plastic wrap sitting on top of shipping box
Add to Cart
Quick view

Intermec 050469 4x6 Thermal Printer Roll Labels 8 Rolls/Case for 8636AT

$35.00
Was: $70.00
Intermec 050469 4x6 Thermal Printer Roll Labels 8 Rolls/Case for 8636ATThermal roll labels for use with Intermec 8636AT thermal printers. Designed for direct thermal or thermal transfer printing in...
38559
SKU:
38559
Availability:
Usually ships within 1-2 business days.
Weight:
41.00 LBS
Brand:
Intermec
Model:
050469
MPN:
050469
Type:
Thermal Printer Roll Labels
SKU:
38559
Label Size:
4 x 6 inches (4.0 x 6.0)
Quantity:
8 Rolls Per Case
Compatible With:
Intermec 8636AT
Media Type:
Thermal Roll Labels
Print Technology:
Thermal (Direct Thermal or Thermal Transfer)
Seller Notes:
Case of 8 rolls. New old stock — new but may be outside original box.
Country/Region of Manufacture:
United States
Date Code:
041489
Condition Notes:
Intermec 050469 4x6 thermal labels, 8 rolls/case. New old stock — labels are unused. Outer box shows storage wear; may be outside original inner packaging.

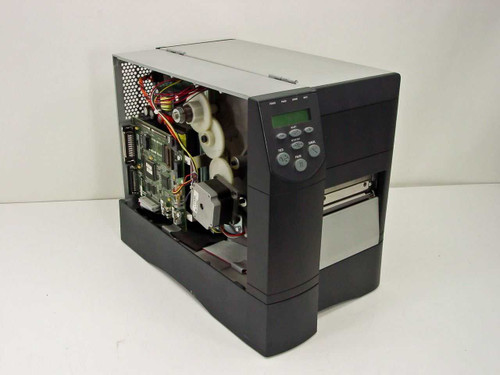

Zebra Z4 label printer left side view with cover removed exposing internal mainboard and mechanism Zebra Z4 label printer right side view showing media compartment and label exit slot
