RJD Controls Model 10 Domain Aligner & Power Supply 588638 Applied Magnetics Lab

(No reviews yet) Write a Review
SKU:
22550
MPN:
Model 10
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
30.00 LBS
Shipping:
Calculated at Checkout
  • RJD Controls Model 10 Domain Aligner Power Supply 588638 — full system view showing power supply unit left and aligner head right on white background
  • RJD Controls Model 10 Domain Aligner Power Supply 588638 — close-up of label on power supply unit showing part number 588638 and model name
  • RJD Controls Model 10 Domain Aligner — front panel of aligner head showing Power, Device Ready, Coil Over Temp, and Flux FWD/REV indicator LEDs
  • RJD Controls Model 10 Domain Aligner Power Supply — close-up of front panel analog meters showing Coil Voltage (DC Volts 0–50) and Coil Current (DC Amperes 0–4)
  • RJD Controls Model 10 Domain Aligner — three-quarter view showing aligner head with coil fixture assembly and flux level indicator
  • RJD Controls Model 10 Domain Aligner — rear panel of aligner head showing Applied Magnetics property tag, serial number, high voltage warning label, coil power input, and program interlock connector
  • RJD Controls Model 10 Domain Aligner Power Supply — rear panel showing serial number 106, coil output banana jacks, control output connector, fuse holders, line switch, and IEC 115-125VAC input
  • RJD Controls Model 10 Domain Aligner Power Supply — close-up of rear panel showing coil fuse 4A, line fuse, push-to-recirculate button, coil output terminals, control output connector, and 115-125VAC IEC inlet
$144.00
Was: $307.00
Current Stock: 1

Sold Out

Description

RJD Controls Model 10 Domain Aligner & Power Supply 588638 Applied Magnetics Lab

The RJD Controls Model 10 is a benchtop magnetic domain alignment system consisting of a dedicated power supply unit and a companion domain aligner head. The power supply generates controlled DC current through a coil in the aligner fixture, allowing the operator to apply a precisely metered magnetic field to a sample in the forward or reverse flux direction. Front-panel analog meters display coil voltage (0–50 VDC) and coil current (0–4 A) in real time, and the aligner head includes indicator LEDs for Power, Device Ready, Coil Over Temperature, and Flux Forward/Reverse status. This unit came out of a working laboratory at Applied Magnetics.

Specifications & What's Included

  • Manufacturer: RJD Controls (also labeled AMG Test Engineering)
  • Model: Model 10 Domain Aligner and Power Supply
  • Part Number: 588638
  • System configuration: two-unit benchtop system — power supply chassis + domain aligner head with coil fixture
  • Input power: 115–125 VAC, 60 Hz (IEC inlet, rear of power supply)
  • DC supply outputs: +12 VDC, +5 VDC (labeled on power supply front panel)
  • Coil voltage display: analog panel meter, 0–50 VDC scale
  • Coil current display: analog panel meter, 0–4 DC Amperes scale
  • Coil fuse: 4 Amp (rear panel, labeled COIL FUSE 4 AMP)
  • Line fuse: rear panel fuse holder (PUSH TO RECIRCULATE)
  • Flux direction control: Forward (FWD) / Reverse (REV) — LED-indicated
  • Aligner head indicators: Power (red), Device Ready (blue), Coil Over Temp (red), Flux FWD (green), Flux REV (yellow)
  • Flux level indicator: LOW (visible on aligner head front panel)
  • Rear of aligner head: Coil Power Input (banana jacks, HIGH VOLTAGE warning), Program Interlock connector
  • Rear of power supply: Coil Output (banana jacks), Control Output (multi-pin connector), IEC AC inlet, power rocker switch
  • Coil fixture assembly: mounted on base of aligner head, with adjustable jaw/clamp mechanism for sample positioning
  • Cables: power and control cables attached as shown in photos
  • Property of Applied Magnetics (error number 15324 on aligner head label)

Applications

Magnetic domain aligners are used in magnetics research and magnetic media manufacturing to apply a controlled, uniform magnetic field to a material sample in order to align its magnetic domains in a specific direction. This process is fundamental in the development and testing of magnetic recording media (such as hard disk platters, magnetic tape, and floppy disk substrates), permanent magnets, and magneto-optical materials. The forward/reverse flux capability allows researchers to cycle a sample through opposing field directions, which is useful for hysteresis characterization and demagnetization studies. Equipment of this type was widely used in industrial magnetics labs and R&D facilities from the 1980s through the 2000s — notably at companies like Applied Magnetics, which was a major U.S. manufacturer of magnetic recording heads and media components based in Santa Barbara, California. Domain aligners remain relevant today in academic magnetics research, magnetic sensor development, and legacy magnetic media production environments.

Condition: Used
This RJD Controls Model 10 Domain Aligner and Power Supply (588638) has been inspected and appears to be in good used condition. It was pulled from a working laboratory environment at Applied Magnetics, where it was in active use. The power supply housing shows minor surface scuffs consistent with lab use; the front-panel analog meters for coil voltage and coil current are intact and the scales are legible. The aligner head and coil fixture appear complete and undamaged. Cables are attached as shown in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
RJD Controls
Model:
Model 10
MPN:
588638
Secondary Model:
AMG Test Engineering Model 10
Type:
Domain Aligner and Power Supply
SKU:
22550
Condition:
Used – Pulled from Working Environment
Application / Use Case:
Magnetic domain alignment, magnetics lab, magnetic media research
Form Factor:
Benchtop, 2-unit system (power supply + aligner head)
Power Requirements:
115-125VAC, 60Hz
Coil Fuse Rating:
4 Amp
Coil Voltage Range:
0–50 VDC (analog meter scale)
Coil Current Range:
0–4 DC Amperes (analog meter scale)
Supply Outputs:
+12 VDC, +5 VDC
Flux Direction Control:
Forward (FWD) / Reverse (REV)
Indicators:
Power, Device Ready, Coil Over Temp, Flux FWD, Flux REV
Rear Connectors:
Coil Output (banana jacks), Control Output (multi-pin), IEC AC inlet
Program Interlock:
Yes — interlock connector on rear of aligner head
Associated Manufacturer:
Applied Magnetics (property tag on aligner head)
Seller Notes:
Includes Model 10 power supply unit and Model 10 domain aligner head with coil fixture; cables attached
Country/Region of Manufacture:
United States
Condition Notes:
RJD Controls Model 10 Domain Aligner & Power Supply 588638 pulled from a working Applied Magnetics lab. Inspected and in good used condition. Power supply and aligner head both included with cables. Minor surface wear.
View AllClose

Related Products

Related Products

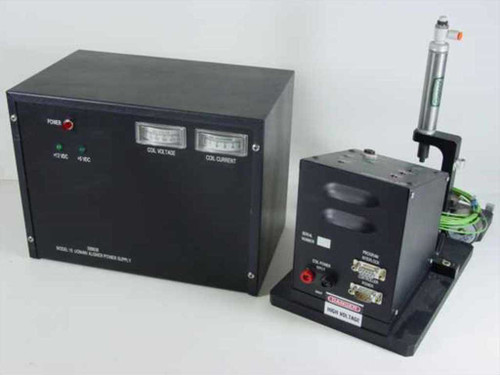

HSA Model 10 Domain Aligner full system front view – power supply unit at left with analog meters, pneumatic actuator stage at right on black base HSA Model 10 Domain Aligner system rear three-quarter view – power supply rear panel visible with coil output and IEC inlet, actuator stage with green cabling
Add to Cart
Quick view

HSA Model 10 Domain Aligner Pneumatic Actuated Power Supply 115VAC Lab

HSA

$500.00
Was: $1,000.00
HSA Model 10 Domain Aligner Pneumatic Actuated Power Supply 115VAC LabMagnetic domain aligner for laboratory use. Applies controlled DC voltage and current to ferrite and magnetic devices while...
26676
SKU:
26676
Availability:
Usually ships within 1–2 business days.
Weight:
20.00 LBS
Brand:
HSA
Model:
Model 10
MPN:
588638
SKU:
26676
Type:
Magnetic Domain Aligner
Condition:
Used – Pulled from Working Environment
Power Requirements:
115–125VAC, 50–60Hz
Coil Fuse:
4 Amp
Coil Voltage Range:
0–50 DC Volts (analog meter)
Coil Current Range:
0–4 DC Amperes (analog meter)
Actuation Type:
Pneumatic
Outputs:
Coil Output (banana posts), Controller Output (DB9)
Indicators:
Power, Device Ready, Coil Over Temp, Flux FWD, Flux REV, Flux Level Low
Magnet Assembly:
Blue anodized aluminum permanent magnet block, N–S poles labeled
Form Factor:
Benchtop System
Application:
Magnetic domain alignment, magnetics research, ferrite device testing
Seller Notes:
Includes power supply unit, pneumatic actuator stage, and magnet assembly block.
Country/Region of Manufacture:
United States
Condition Notes:
HSA Model 10 Domain Aligner pulled from a working lab where it was in active use and functional. Inspected and in good condition; normal bench wear. Includes power supply, pneumatic stage, and magnet block. Please contact us with any questions.
RJD Controls Model 3 Variac Voltage Timer Control – front panel showing voltage control knob, coil switch, DC ammeter, and power LED RJD Controls Model 3 Variac – rear panel showing Time Ranger timer module, AMP selector, push-to-start button, DB9 output connector, IEC power inlet, and 115VAC marking
Add to Cart
Quick view

RJD Controls Model 3 Variac Voltage Timer Control 115VAC DC Ammeter Benchtop

RJD Controls

$75.00
Was: $150.00
RJD Controls Model 3 Variac Voltage Timer Control 115VAC DC Ammeter BenchtopBenchtop variac control unit with integrated Time Ranger timer module. Provides variable AC voltage output with integrated...
26686
SKU:
26686
Availability:
Usually ships within 1–2 business days.
Weight:
7.00 LBS
Brand:
RJD Controls
Model:
Model 3
MPN:
Model 3
Type:
Variac Voltage & Timer Control
SKU:
26686
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts or repair; includes Time Ranger timer module
Form Factor:
Benchtop
Power Requirements:
115VAC
Input Voltage:
115VAC
Output Connector:
DB9 (9-pin D-sub)
Current Meter Range:
0–5 DC Amperes
Controls:
Voltage knob, Coil switch, Power switch, Push-to-start
Timer Module:
Time Ranger (integrated)
Indicators:
Power LED (green), Current meter
Country/Region of Manufacture:
United States
Condition Notes:
RJD Controls Model 3 Variac Voltage Timer Control sold AS-IS for parts or repair. Not tested or guaranteed functional. Cosmetically intact with normal wear. All visible components present. Contact us with questions.

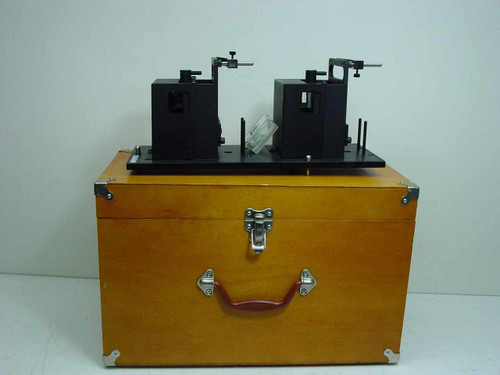

Applied Magnetics EL97083713 AB Alignment Assembly mounted on base plate, resting on top of closed wooden carrying case — front view Applied Magnetics EL97083713 dual alignment fixture modules on yellow base plate — front view out of case, accessories visible at left
