HSA Model 10 Domain Aligner Pneumatic Actuated Power Supply 115VAC Lab

(No reviews yet) Write a Review
SKU:
26676
MPN:
Model 10
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
20.00 LBS
Shipping:
Calculated at Checkout

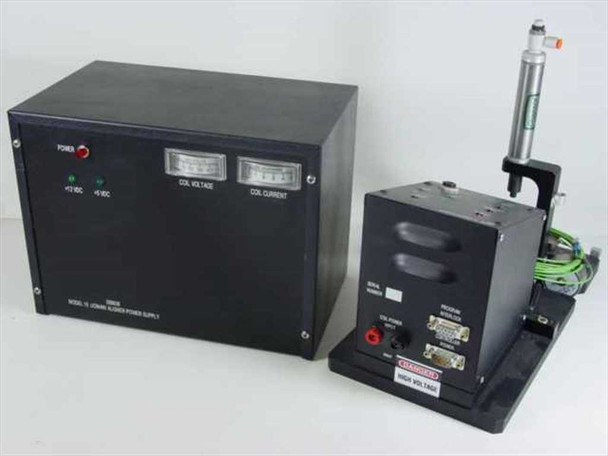

  • HSA Model 10 Domain Aligner full system front view – power supply unit at left with analog meters, pneumatic actuator stage at right on black base
  • HSA Model 10 Domain Aligner system rear three-quarter view – power supply rear panel visible with coil output and IEC inlet, actuator stage with green cabling
  • HSA Model 10 pneumatic actuator close-up – vertical pneumatic cylinder, magnet assembly holder, and green signal cables on black mounting base
  • HSA Model 10 Domain Aligner power supply front panel – LED indicators for Power, Device Ready, Coil Over Temp, Flux FWD, Flux REV, and Flux Level Low
  • HSA Model 10 Domain Aligner Power Supply label – model number 588638 printed on bottom of chassis
  • HSA Model 10 power supply analog meters close-up – Coil Voltage meter (0–50 DC Volts) and Coil Current meter (0–4 DC Amperes)
  • HSA Model 10 power supply rear panel – Coil Fuse 4 Amp, Coil Output banana posts, Controller Output DB9, IEC AC inlet labeled 115–125VAC 50–60Hz
  • HSA Model 10 magnet assembly block top view – blue anodized aluminum square block with central aperture, four mounting screws
  • HSA Model 10 magnet assembly block underside view – N and S pole faces visible on brushed aluminum magnet, blue anodized housing with aperture
$500.00
Was: $1,000.00
Current Stock: 6

Sold Out

Description

HSA Model 10 Domain Aligner Pneumatic Actuated Power Supply 115VAC Lab

Magnetic domain aligner for laboratory use. Applies controlled DC voltage and current to ferrite and magnetic devices while pneumatic actuation positions the sample against a permanent magnet assembly for domain alignment and measurement.

Specifications & What's Included

  • Brand: HSA | Model: 10 | MPN: 588638
  • Power: 115–125VAC, 50–60Hz, 4A coil fuse
  • Coil output: 0–50VDC, 0–4ADC (analog meters)
  • Outputs: Coil banana posts, DB9 controller port
  • Indicators: Power, device ready, coil over-temp, flux direction and level
  • Includes power supply unit, pneumatic actuator stage, blue anodized aluminum magnet block with labeled poles

Applications

Used in ferrite core testing, magnetic materials research, and domain alignment procedures for telecommunications and industrial magnetics work. Applies repeatable magnetic field conditioning and electrical stress to characterize device behavior under controlled lab conditions.

Condition: Used
This HSA Model 10 Domain Aligner was pulled from a working laboratory environment where it was in active use and functional. The system has been inspected and appears to be in good condition. The power supply housing shows minor surface scuffs typical of bench use, and the pneumatic actuator stage and base plate show normal handling marks. The analog coil voltage and current meters on the front of the power supply appear intact, and the front panel indicator LEDs are present and undamaged. The magnet assembly block is clean with no visible damage. The rear panel connectors — coil output banana posts, DB9 controller output, and IEC AC inlet — appear in good order. Green interconnect cabling is included and visible in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
HSA
Model:
Model 10
MPN:
588638
SKU:
26676
Type:
Magnetic Domain Aligner
Condition:
Used – Pulled from Working Environment
Power Requirements:
115–125VAC, 50–60Hz
Coil Fuse:
4 Amp
Coil Voltage Range:
0–50 DC Volts (analog meter)
Coil Current Range:
0–4 DC Amperes (analog meter)
Actuation Type:
Pneumatic
Outputs:
Coil Output (banana posts), Controller Output (DB9)
Indicators:
Power, Device Ready, Coil Over Temp, Flux FWD, Flux REV, Flux Level Low
Magnet Assembly:
Blue anodized aluminum permanent magnet block, N–S poles labeled
Form Factor:
Benchtop System
Application:
Magnetic domain alignment, magnetics research, ferrite device testing
Seller Notes:
Includes power supply unit, pneumatic actuator stage, and magnet assembly block.
Country/Region of Manufacture:
United States
Condition Notes:
HSA Model 10 Domain Aligner pulled from a working lab where it was in active use and functional. Inspected and in good condition; normal bench wear. Includes power supply, pneumatic stage, and magnet block. Please contact us with any questions.
