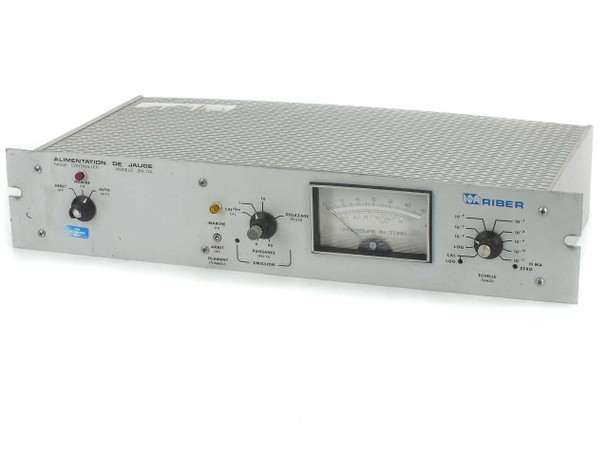

The Riber JBA 12A (also labeled "Alimentation de Jauge" — French for Gauge Power Supply/Controller) is a 2U rackmount vacuum pressure gauge controller designed by ISA Riber for use with ionization gauge tubes in high-vacuum and ultra-high-vacuum systems. It provides the regulated high-voltage supply and measurement readout needed to operate ionization gauges across a wide logarithmic pressure range, displaying chamber vacuum level on a front-panel analog meter.

Specifications & What's Included

• Manufacturer: ISA Riber (France)
• Model: JBA 12A

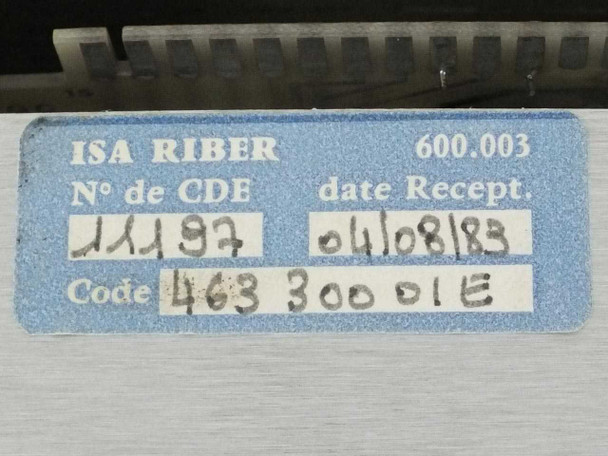

• Internal Code: 463 300 01E
• Form Factor: 2U Rackmount, 19" rack-standard
• Dimensions: 19" W x 11" D x 4" H
• Display: Front-panel analog needle meter

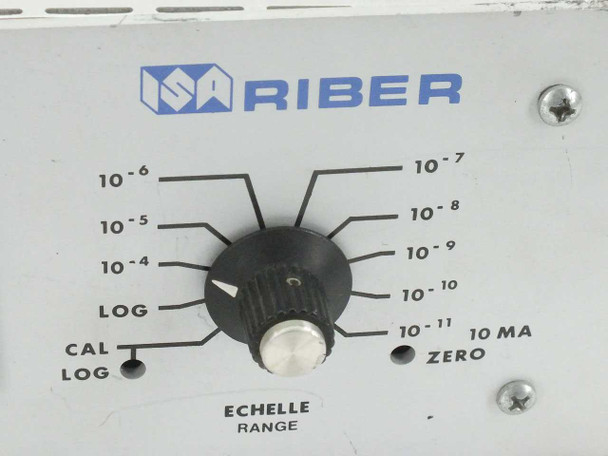

• Range Selector (ECHELLE): Rotary knob — LOG, CAL LOG, 10⁻⁴, 10⁻⁵, 10⁻⁶, 10⁻⁷, 10⁻⁸, 10⁻⁹, 10⁻¹⁰, 10⁻¹¹, 10 mA, ZERO positions

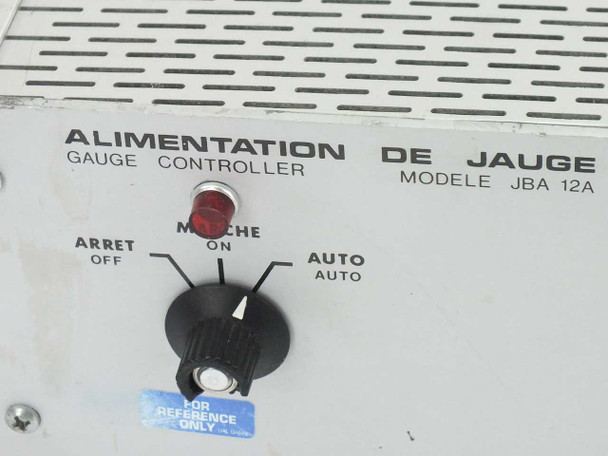

• Power Switch: ARRET (OFF) / MARCHE (ON) / AUTO — with red ON indicator lamp
• Power Input: 210V AC, 50-60 Hz (per rear panel label)
• Rear Connectors: Multi-pin gauge tube connector, Recorder output (10mV/V), HEC and GND terminals, IEC AC power inlet
• Additional rear label: "DANGER HIGH VOLTAGE" warning
• Sold as unit only — no gauge tube or external cables included

Applications

The Riber JBA 12A is a vacuum gauge controller of the type used in physical vapor deposition (PVD) systems, including magnetron sputtering, thermal evaporation, and molecular beam epitaxy (MBE) chambers — all areas where Riber was a well-known French manufacturer. This class of instrument provides the high-voltage excitation current for hot-cathode or cold-cathode ionization gauge tubes and reads the resulting ion current as a calibrated pressure value, typically in the high-vacuum to ultra-high-vacuum range (roughly 10⁻⁴ to 10⁻¹¹ Torr). The analog logarithmic readout was standard on vacuum controllers of this era — the receipt date on the internal label (April 1983) places this unit firmly in the early-1980s generation of laboratory and industrial thin-film deposition equipment. Riber instruments like this were commonly found in semiconductor research labs, university physics departments, and industrial thin-film coating facilities. Today, collectors, repair technicians, and researchers maintaining legacy Riber MBE or sputtering systems are the primary buyers for this type of controller.
