Description
RFVII RF-20-XXVII 2000W RF Generator 27.12 MHz 200-240VAC ICP Plasma 19" Rack
RF generator for ICP plasma, inductively coupled plasma mass spectrometry, induction heating, and medical applications. Delivers 2000 watts at 27.12 MHz with air-cooled operation in a 19" rackmount form factor.
Specifications & What's Included
- Output power: 2000 watts at 27.12 MHz
- Input: 200-240VAC, single phase, 20A
- Remote control: 0-5 Vdc (10 Vdc option) and RS-232 serial
- Pulsing: 1-999 Hz with 5-95% duty cycle
- Front panel incident and reflectant power meters (4-digit LED display)
- Large coaxial RF output connector; DB9 remote interface; 200-240VAC twist-lock power inlet
- Unit only; no accessories included
Applications
Used for ICP plasma, mass spectrometry plasma, induction heating, and medical plasma applications.
Condition: Used

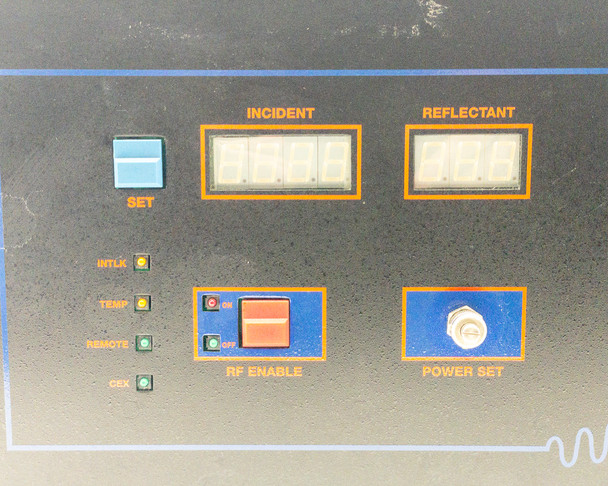

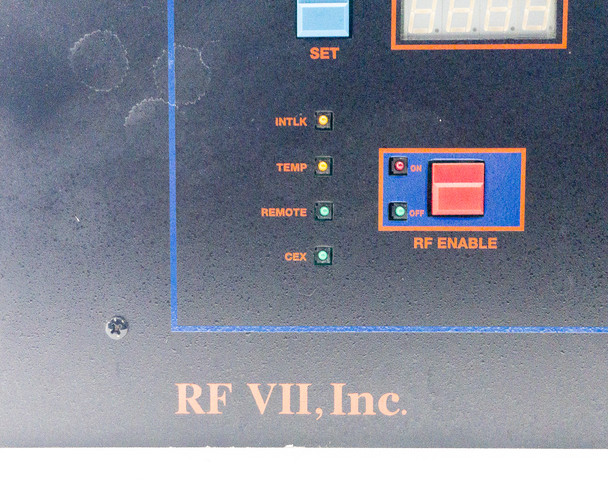

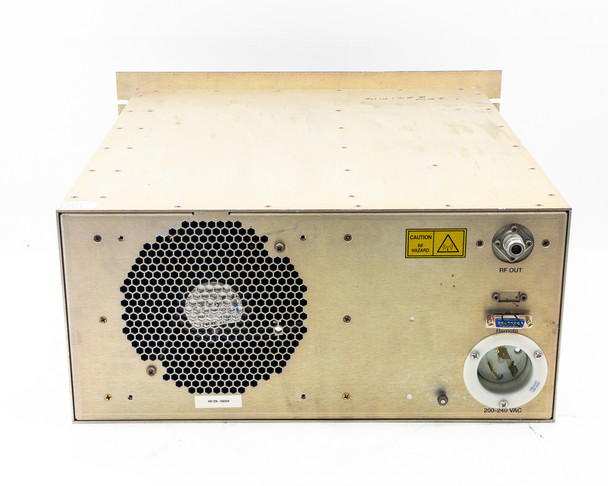

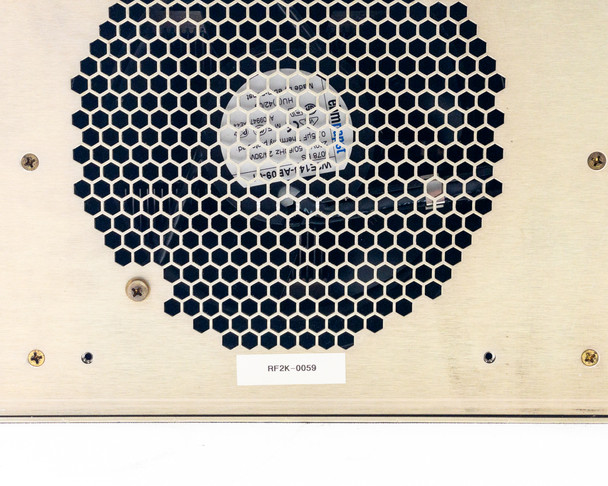

This RFVII RF-20-XXVII 2000W 27.12 MHz RF Generator has been inspected and is in good used condition. The unit was pulled from a working environment where it was previously in active service. Cosmetically, the front panel shows some light surface marks and minor scuffing consistent with normal lab use; the rear panel aluminum chassis has a few small spots and surface oxidation visible near the connectors, but nothing structurally significant. The front panel displays, RF Enable switch, Power Set knob, and status indicator LEDs are all present and intact. The rear panel RF OUT coaxial connector, DB9 Remote serial port, and 200-240VAC twist-lock power inlet are all in place and appear undamaged. The cooling fan is present. Please view our photo set and contact us if you have any questions.
This RFVII RF-20-XXVII 2000W 27.12 MHz RF Generator has been inspected and is in good used condition. The unit was pulled from a working environment where it was previously in active service. Cosmetically, the front panel shows some light surface marks and minor scuffing consistent with normal lab use; the rear panel aluminum chassis has a few small spots and surface oxidation visible near the connectors, but nothing structurally significant. The front panel displays, RF Enable switch, Power Set knob, and status indicator LEDs are all present and intact. The rear panel RF OUT coaxial connector, DB9 Remote serial port, and 200-240VAC twist-lock power inlet are all in place and appear undamaged. The cooling fan is present. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
RFVII (RF VII, Inc.) |
Model: |
RF-20-XXVII |
MPN: |
RF-20-XXVII |
SKU: |
53328 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no accessories observed in photos. |
Country of Manufacture: |
USA |
Form Factor: |
19" Rackmount |
Power Requirements: |
200-240VAC, Single Phase, 20A |
Output Frequency: |
27.12 MHz |
Output Power: |
2000 Watts (2 kW) |
Cooling Method: |
Air Cooled |
Remote Control: |
0-5 Vdc (10 Vdc option); RS-232 Serial |
Pulsing: |
1-999 Hz / Duty Cycle 5-95% |
RF Output Connector: |
Large coaxial RF OUT connector (rear panel) |
Remote Interface: |
DB9 Serial (RS-232), rear panel |
Power Connector: |
200-240VAC twist-lock (rear panel) |
Front Panel Displays: |
Incident & Reflectant power meters (4-digit LED) |
Application: |
ICP Plasma, MassSpec Plasma, Induction Heating, Medical |
Compatible With: |
Replaces RFPP 2KW 27.12 MHz ICP Generator |
Condition Notes: |
This RFVII RF-20-XXVII 2000W 27.12 MHz RF Generator has been inspected and is in good used condition. The unit was pulled from a working environment where it was previously in active service. |
