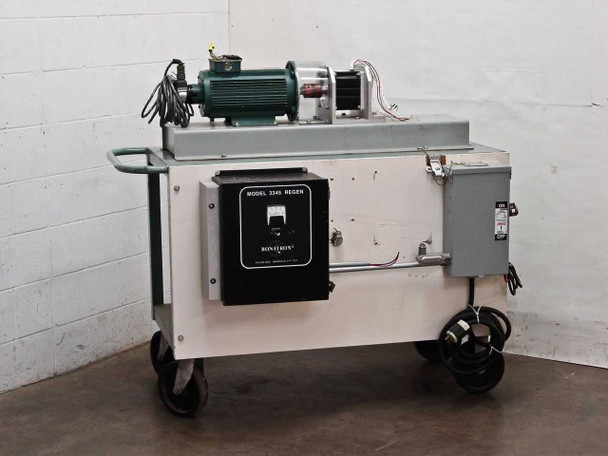

Reliance Electric P18A6103R-XZ Duty Master AC Motor Torque Tester 230/460V 3HP
Mobile cart-mounted AC motor torque testing system combining a 3 HP Duty Master Vector motor with integrated Bonitron regenerative unit and Murray heavy-duty enclosed switch. Used for measuring motor torque output and performance characteristics in industrial and telecom applications.
Specifications & What's Included
- Motor: Reliance Electric Duty Master Vector, 3 HP, 1726 RPM, three-phase
- Voltage: 230/460V AC, 60 Hz, rated 8.8A @ 230V / 4.4A @ 460V
- Frame: WF1821C, Type D, Insulation Class F+, continuous duty
- Regen Unit: Bonitron Model 3345 with 0–20 DC Ammeter
- Switch: Murray HH361AW, 30A 600V AC, 7.5 HP standard / 20 HP maximum
- Enclosure: Type 5R outdoor/indoor mobile cart form factor
- Features: Thermostat protected, energy saving design
Applications
Motor torque testers are used to verify motor performance, diagnose mechanical issues, and validate repair work on industrial AC motors. The regenerative braking unit allows controlled loading and measurement of torque output across the motor's operating range. This configuration supports testing three-phase motors in manufacturing, facility maintenance, and motor service operations where portable load testing is required.
This Reliance Electric P18A6103R-XZ Duty Master AC Motor Torque Tester Cart has been inspected and is in good used condition. The cart structure and lower shelf show typical paint scuffs and wear consistent with shop use. The Reliance Electric Duty Master Vector AC motor is intact and shows no obvious damage. The Bonitron Model 3345 Regen unit's front panel and DC ammeter appear intact, and the internal circuit board assembly visible in the photos looks complete with no obvious damage. The Murray HH361AW Heavy Duty Enclosed Switch and its internal three-pole fuse block are present and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Reliance Electric |
Model: |
P18A6103R-XZ |
MPN: |
P18A6103R-XZ |
Secondary Model: |
Bonitron 1RG42015 / M3345-41BM00 |
Type: |
AC Motor Torque Tester Cart |
SKU: |
43792 |
Motor Series: |
Duty Master Vector |
Frame: |
WF1821C |
Motor Type: |
Type D (Three Phase AC) |
Horsepower: |
3.0 HP |
Voltage Rating: |
230/460V AC |
Current Rating (Amps): |
8.8A @ 230V / 4.4A @ 460V |
No Load Amps: |
4.8A @ 230V / 2.4A @ 460V |
Phase: |
Three Phase |
Frequency: |
60 Hz |
RPM: |
1726 |
Service Factor: |
1.0 |
Time Rating: |
Continuous (CONT) |
Insulation Class: |
F |
Insulation Type: |
F+ |
Ambient Temperature: |
40°C |
Energy Saving Design: |
Yes |
Thermostat Protected: |
Yes |
Regen Unit Brand: |
Bonitron |
Regen Unit Model: |
Model 3345 Regen |
Regen Unit Part Number: |
1RG42015 / M3345-41BM00 |
Regen DC Ammeter Range: |
0–20 DC Amperes |
Enclosed Switch Brand: |
Murray (Siemens Energy & Automation) |
Enclosed Switch Model: |
HH361AW |
Enclosed Switch Rating: |
30A, 600V AC, 3-Phase |
Enclosed Switch HP Rating: |
7.5 HP Std / 20 HP Max |
Enclosure Type: |
Type 5R Outdoor/Indoor |
Form Factor: |
Mobile Cart / Portable |
Power Requirements: |
230/460V AC, 3-Phase, 60Hz |
Seller Notes: |
Includes Bonitron Model 3345 Regen unit and Murray HH361AW Heavy Duty Enclosed Switch |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected and in Good Condition |
Condition Notes: |
Reliance Electric P18A6103R-XZ Duty Master AC Motor Torque Tester Cart. Inspected, good used condition. Includes Bonitron 3345 Regen unit and Murray HH361AW enclosed switch. Cart shows normal shop wear. |
