Red Lion Controls MLPS MLPS0000 AC Input Power Supply 115/230VAC to 12VDC 80mA

(No reviews yet) Write a Review
SKU:
35802
MPN:
MLPS
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

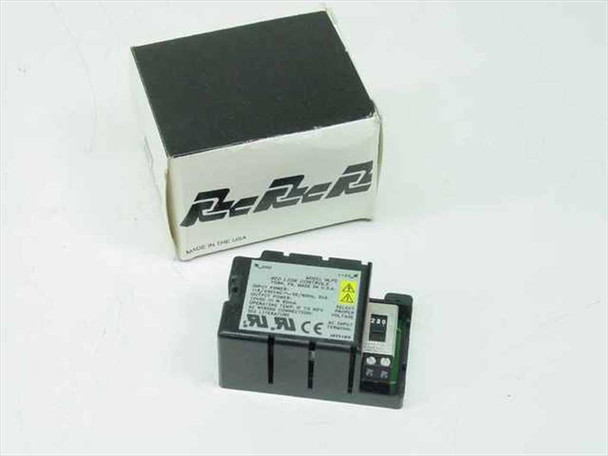

  • Red Lion Controls MLPS power supply module shown with original Red Lion branded box — front angle view

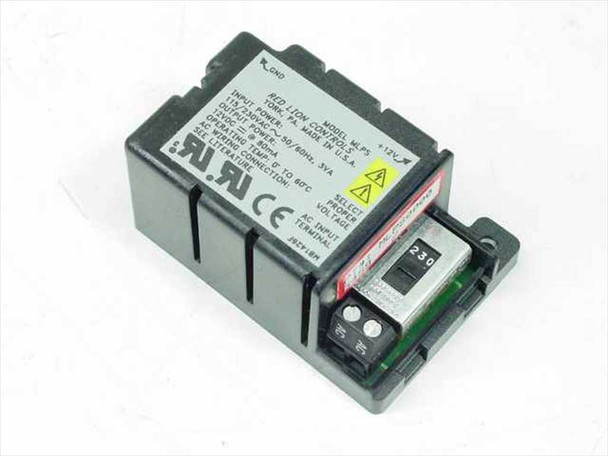

  • Red Lion Controls MLPS AC input power supply — top label showing model, input/output specs, UL and CE marks

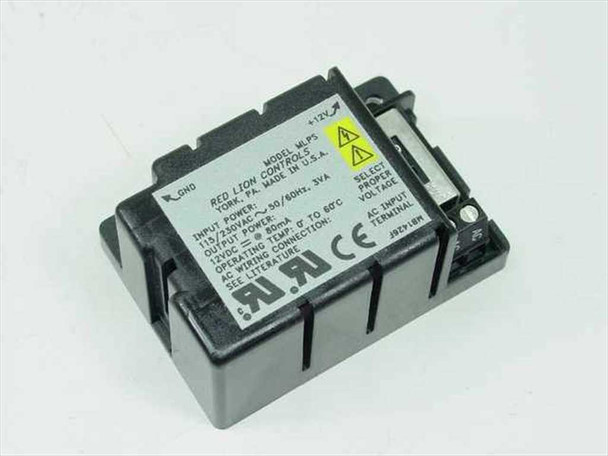

  • Red Lion Controls MLPS power supply — angled top view showing full label with voltage selector and AC terminal markings

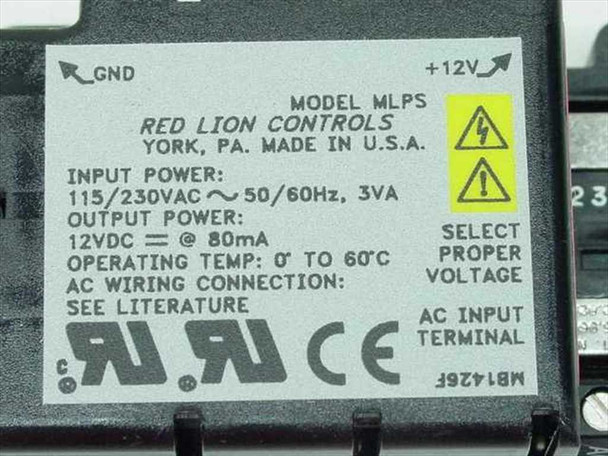

  • Red Lion Controls MLPS rating label close-up — 115/230VAC 50/60Hz 3VA input, 12VDC 80mA output, 0–60°C operating temp
  • Red Lion Controls MLPS box label showing part number MLPS0000 with Red Lion lion logo

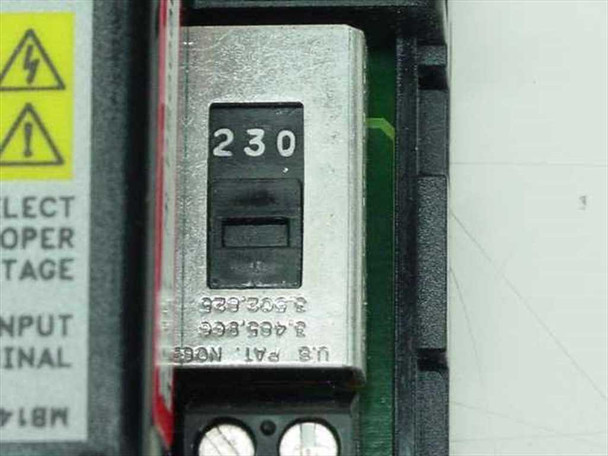

  • Red Lion Controls MLPS voltage selector switch close-up — set to 230V position with screw terminal connections visible

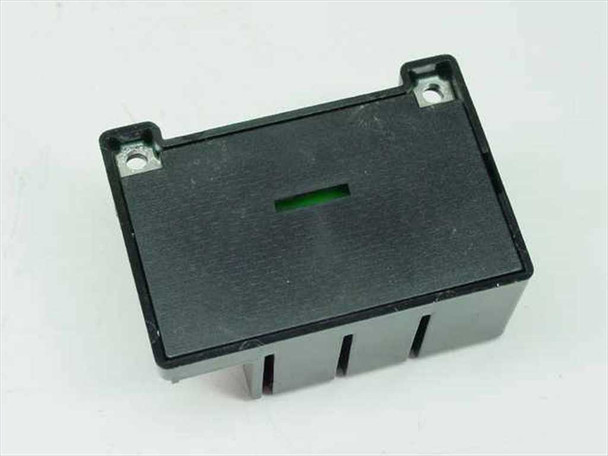

  • Red Lion Controls MLPS power supply — bottom view showing green LED indicator and mounting bracket tabs
$18.00
Was: $40.00
Current Stock: 2

Sold Out

Description

Red Lion Controls MLPS MLPS0000 AC Input Power Supply 115/230VAC to 12VDC 80mA

The Red Lion Controls MLPS is a compact AC-to-DC power supply module designed to convert 115VAC or 230VAC line power to a regulated 12VDC output. It features a user-selectable input voltage switch on the side of the module, allowing the same unit to be used in both North American (115V) and international (230V) applications. The MLPS is a standard accessory power supply within the Red Lion Controls product ecosystem, commonly used to power Red Lion panel meters, displays, and similar 12VDC instrumentation.

Specifications & What's Included

  • Model: MLPS / Part Number: MLPS0000
  • Manufacturer: Red Lion Controls, York, PA — Made in USA
  • Input Voltage: 115/230VAC, selectable via side-mounted switch
  • Input Frequency: 50/60Hz
  • Input Power: 3VA
  • Output Voltage: 12VDC
  • Output Current: 80mA
  • Operating Temperature: 0°C to 60°C
  • Certifications: UL listed, CE marked
  • AC wiring connection: per Red Lion literature (screw terminals)
  • Green power indicator LED on bottom face
  • Mounting tabs on bottom for panel or chassis mounting
  • Includes original Red Lion Controls box

Applications

The Red Lion Controls MLPS is a dedicated accessory power supply for Red Lion panel meters, batch controllers, rate meters, and process displays that require a 12VDC supply — particularly units in the Modular Lion Panel System (MLPS) family. It is commonly used in industrial control panels, process monitoring systems, and factory automation environments where a compact, panel-mountable AC-to-DC supply is needed alongside a Red Lion display or meter. The selectable 115/230VAC input makes it suitable for both domestic and export machine builds. Red Lion Controls is a well-established US manufacturer of process control instrumentation and industrial displays, and the MLPS supply remains in use in legacy and current panel installations alike.

Condition: Open Box
This Red Lion Controls MLPS AC Input Power Supply (MLPS0000) is new and unused. The unit may be out of its original packaging, but it has not been used or installed. The original Red Lion box is included, as seen in the photos. The unit is clean with no signs of wear or use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Red Lion Controls
Model:
MLPS
MPN:
MLPS0000
SKU:
35802
Type:
AC to DC Power Supply Module
Input Voltage:
115/230VAC (selectable)
Input Frequency:
50/60Hz
Input Power:
3VA
Output Voltage:
12VDC
Output Current:
80mA
Operating Temperature:
0° to 60°C
Voltage Selection:
Selectable via side-mounted switch (115V or 230V)
Certifications:
UL, CE
Country/Region of Manufacture:
United States
Form Factor:
Panel Mount / DIN-style Module
Condition:
New – Open Box
Seller Notes:
New unit; may be out of original box. Includes original Red Lion box.
Condition Notes:
Red Lion Controls MLPS MLPS0000 AC power supply is new and unused. May be out of original box; box is included. No signs of use or wear. Please contact us with any questions.
