Racore

Racore A8107-000 LANpac II 16-Bit ISA Network Card RPL 3000-0068 Rev A

(No reviews yet) Write a Review
SKU:
41041
MPN:
A8107-000
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

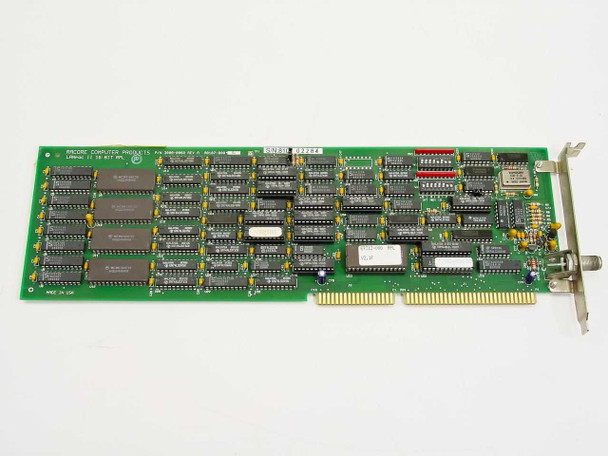

  • Racore A8107-000 LANpac II 16-bit ISA network card – top component side showing full PCB layout and BNC bracket connector
  • Racore A8107-000 LANpac II ISA NIC – solder side (bottom of PCB) with ISA edge connector and BNC port visible
  • Racore A8107-000 close-up of PCB silkscreen label reading RACORE COMPUTER PRODUCTS P/N 3000-0068 Rev A LANpac II 16 BIT RPL with Motorola MCM6164C55 memory chips and SN74ALS574BN logic ICs
  • Racore A8107-000 LANpac II ISA NIC – top-right PCB area showing Toyocom oscillator, additional logic ICs, and firmware chips

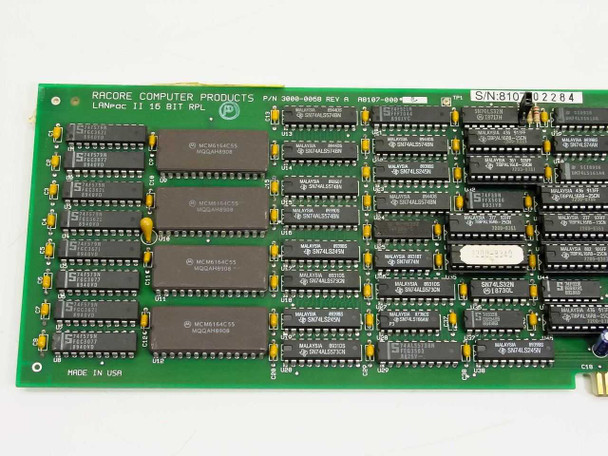

  • Racore A8107-000 LANpac II PCB close-up showing four Motorola MCM6164C55 SRAM chips, SN74ALS574BN and SN74ALS245N logic ICs, and MADE IN USA marking

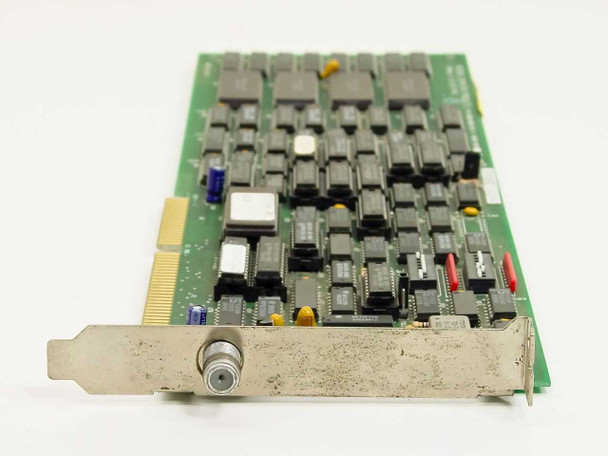

  • Racore A8107-000 LANpac II ISA network card – angled view showing card thickness, BNC bracket connector with dust and wear, and full-length ISA edge connector
$35.00
Was: $70.00
Current Stock: 1

Sold Out

Description

Racore A8107-000 LANpac II 16-Bit ISA Network Card RPL 3000-0068 Rev A

16-bit ISA network interface card with Remote Program Load (RPL) support. Designed for legacy IBM PC/AT compatible systems requiring coaxial network connectivity.

Specifications & What's Included

  • Model: A8107-000 / LANpac II
  • Bus Interface: 16-bit ISA
  • Connector: BNC (coaxial)
  • Memory: Motorola MCM6164C55 chips
  • Features: RPL support
  • Form Factor: Full-length ISA card
  • Revision: Rev A
  • Card only; no accessories included

Applications

LANpac II cards were used in 1980s-1990s networked systems to provide coaxial network connectivity. Compatible with ISA-bus PCs and IBM PC/AT compatible machines. Commonly found in enterprise and industrial systems requiring network boot capability via RPL protocol.

Condition: Used
This Racore A8107-000 LANpac II 16-bit ISA network card has been inspected and is in good used condition. The PCB is clean and shows no signs of physical damage. The BNC bracket connector shows some surface dust and light wear consistent with prior installation use. All visible components appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Racore
Model:
A8107-000
MPN:
A8107-000
Secondary Model:
3000-0068
Type:
ISA Network Interface Card (NIC)
SKU:
41041
Product Name:
LANpac II
Bus Interface:
ISA (16-bit)
Data Width:
16-bit
Board Revision:
Rev A
Features:
RPL (Remote Program Load) support
Main Memory Chips:
Motorola MCM6164C55 (x4 visible)
Logic ICs:
SN74ALS574BN, SN74ALS245N (Texas Instruments)
Connector:
BNC (coaxial, on bracket)
Form Factor:
Full-length ISA card
Country/Region of Manufacture:
USA
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no accessories included.
Compatible With:
ISA-bus PCs, IBM PC/AT compatible systems
Condition Notes:
Racore A8107-000 LANpac II 16-bit ISA network card. Inspected and in good used condition. PCB is clean, no visible damage. BNC bracket shows light wear from prior use.
View AllClose

Related Products

Related Products

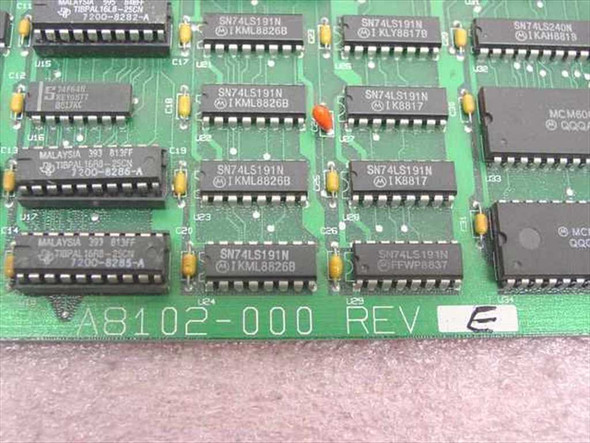

Racore A8102-000 LANPAC II 8-bit ISA network card – angled top view showing full PCB and BNC connector on bracket Racore A8102-000 LANPAC II PCB close-up showing SN74LS191N logic ICs and part number A8102-000 REV E silkscreen
