Pacific Trinetics Corporation

PTC Pacific Trinetics BF-200 Semi-Automatic Blanker Framer 120V 10A J-152

(No reviews yet) Write a Review
SKU:
44930
MPN:
BF-200
Condition:
Used
Availability:
This item requires freight shipment. Contact us for a shipping quote before purchasing.
Weight:
700.00 LBS
Shipping:
Calculated at Checkout

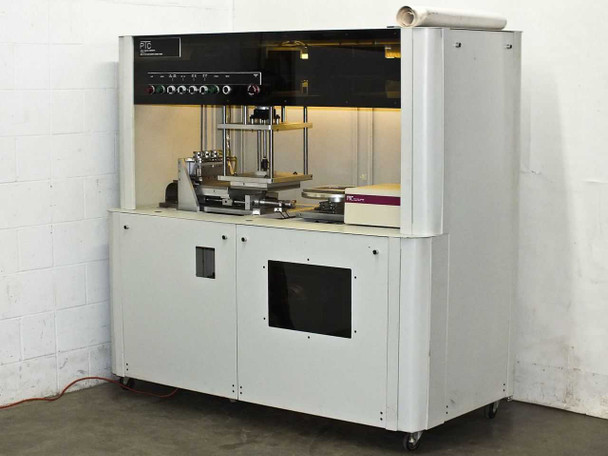

  • Pacific Trinetics PTC BF-200 Semi-Automatic Blanker Framer – full front view of large freestanding cabinet on casters with open work area and control panel
  • PTC BF-200 control panel close-up showing brand label reading 'Pacific Trinetics Corporation – Model BF-200 Semi-Automatic Blanker Framer' with alarm, motor, run, step, tab, blade, cut, and emergency stop controls
  • BF-200 framing stage area with vertical press columns, upper platen assembly, and tape cut head platform visible from the front
  • Close-up of pneumatic cylinder actuator block with multiple Bimba-brand cylinders mounted on the BF-200 slide assembly
  • BF-200 tape cut head detail – aluminum platen labeled 'TAPE CUT HEAD' with central cutting tool and four corner locating pins
  • BF-200 vacuum stage platen – round aluminum stage with square frame aperture and circular vacuum hole pattern on center plate

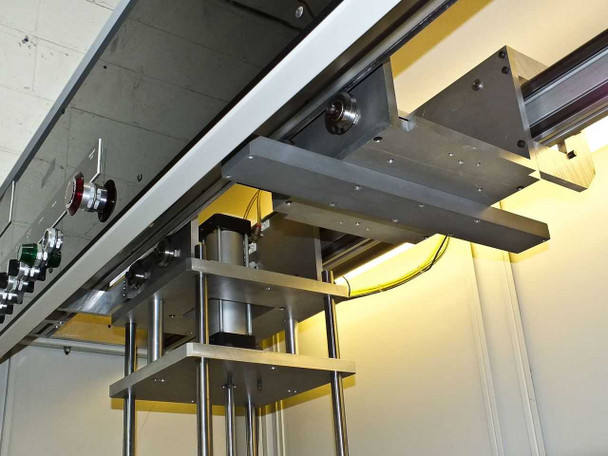

  • Overhead view of BF-200 upper transport/bridge assembly showing linear actuators, rollers, and illuminated work area beneath
  • PTC Model J-152 controller unit – separate off-white enclosure with PTC Pacific Trinetics Corporation San Marcos California USA label on front
  • Close-up of Bimba pneumatic actuator cylinder with red Bimba brand marking mounted in the BF-200 mechanism

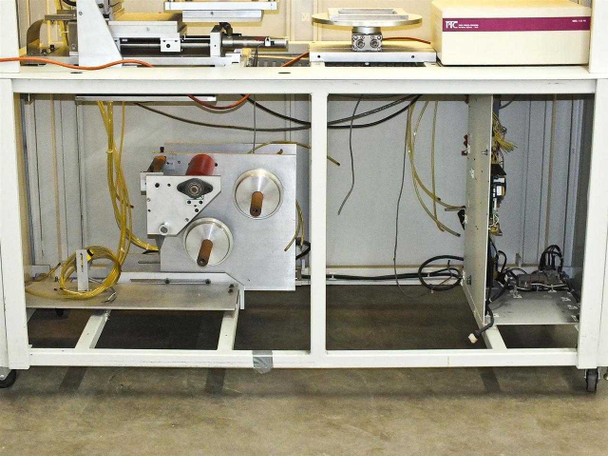

  • Rear undercarriage view of BF-200 with cabinet doors open showing tape reel drive assembly and wiring harnesses
  • BF-200 tape reel mechanism detail – large aluminum drive plate with two wooden-core tape reels and red rubber pressure roller
  • BF-200 rubber feed roller assembly close-up – large red silicone/rubber roller and wooden-core capstan roller with pneumatic drive cylinder below
  • Large roll of pneumatic engineering drawings for PTC BF-200 Blanker Framer opened to show schematic pages
  • Close-up of PTC Pneumatic Drawing title block: 'Blanker Framer Model BF-200 – Pneumatic Drawing BF990179' dated 3/5/98, Pacific Trinetics Corporation, Carlsbad CA

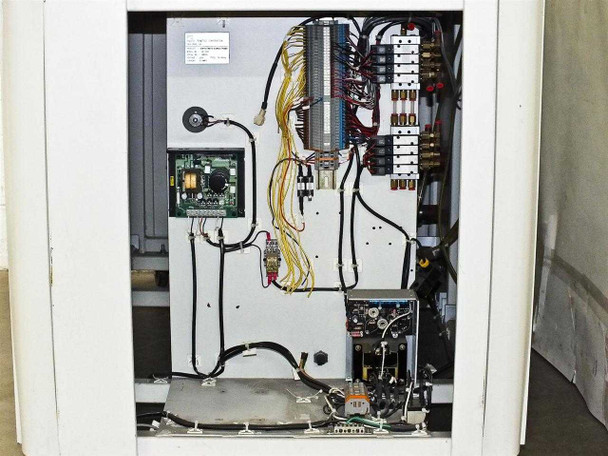

  • BF-200 right electrical cabinet interior with control board, wiring harness, pneumatic solenoid valve bank, and terminal strip panel

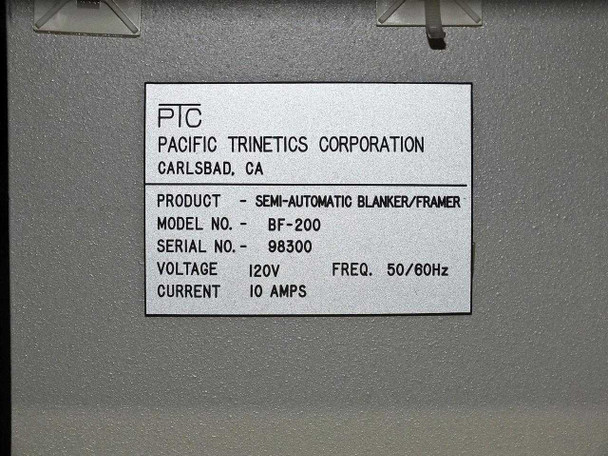

  • PTC BF-200 rating plate label showing: Semi-Automatic Blanker/Framer, Model BF-200, Serial 98300, Voltage 120V, Freq 50/60Hz, Current 10 Amps – Pacific Trinetics Corporation, Carlsbad CA

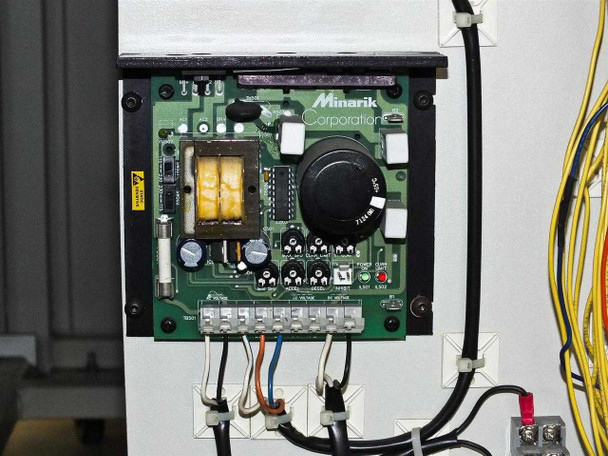

  • Minarik Corporation DC motor speed controller board mounted inside BF-200 cabinet – green PCB with speed control potentiometer and terminal block wiring

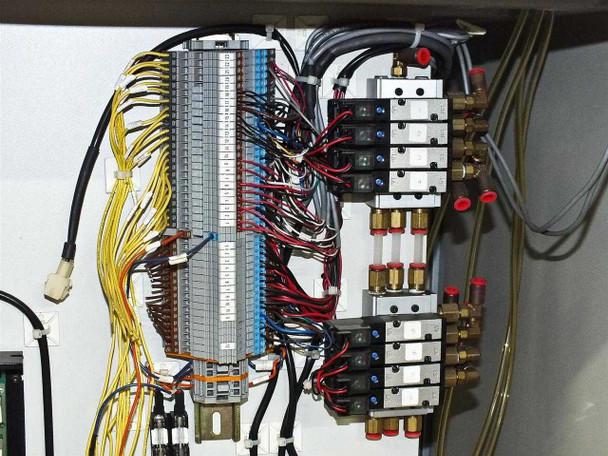

  • BF-200 interior pneumatic and electrical panel detail – numbered terminal strip, solenoid valve manifold bank with brass fittings, and bundled multi-color wiring

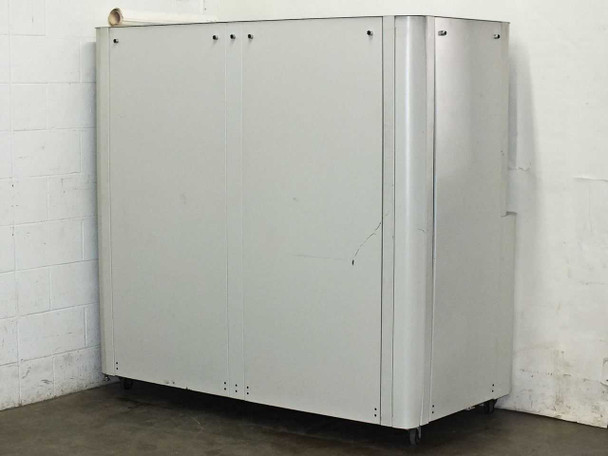

  • BF-200 rear exterior panel view showing full-height grey cabinet with light scuffing and scratch on rear surface

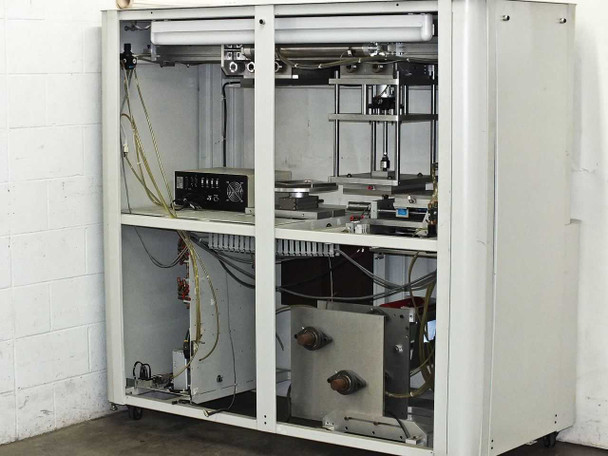

  • BF-200 with side panels removed showing full internal layout – upper framing/transport mechanism, lower reel drive assembly, and electrical cabinet compartments
  • Pacific Trinetics Corporation BF-200 Semi-Automatic Blanker/Framer PTC 110v 60Hz
  • Pacific Trinetics Corporation BF-200 Semi-Automatic Blanker/Framer PTC 110v 60Hz
  • Pacific Trinetics Corporation BF-200 Semi-Automatic Blanker/Framer PTC 110v 60Hz
  • Pacific Trinetics Corporation BF-200 Semi-Automatic Blanker/Framer PTC 110v 60Hz
  • Pacific Trinetics Corporation BF-200 Semi-Automatic Blanker/Framer PTC 110v 60Hz
  • Pacific Trinetics Corporation BF-200 Semi-Automatic Blanker/Framer PTC 110v 60Hz
$3,500.00
Was: $7,000.00
Current Stock: 1

Sold Out

Description

PTC Pacific Trinetics BF-200 Semi-Automatic Blanker Framer 120V 10A J-152

Semi-automatic blanker framer for semiconductor tape-and-reel processing. Handles lead frame blanking operations with a maximum tape width of 6.5 inches and frame stage dimensions of 8.5 x 8.5 inches.

Specifications & What's Included

  • Model: BF-200 with J-152 controller
  • Power: 120V AC, Single Phase, 50/60Hz, 10A
  • Motor Controller: Minarik Corporation DC motor controller
  • Form Factor: Freestanding cabinet on casters
  • Includes PTC Model J-152 controller and pneumatic drawing set BF990179 (dated 3/5/98)
  • Country of Manufacture: United States

Applications

The BF-200 was used in semiconductor manufacturing for blanking and framing lead frames on tape-and-reel carriers. Equipment of this type is employed in automated component preparation workflows where precision blanking of metal frames is required prior to downstream assembly or packaging processes. The included pneumatic drawings support maintenance and setup for air-actuated components integral to the blanking mechanism.

Condition: Used
This Pacific Trinetics BF-200 Semi-Automatic Blanker/Framer has been inspected and appears to be in good condition overall. It has not been powered or tested at our facility. The machine shows normal wear consistent with prior industrial use. The cabinet exterior is clean with minor scuffing and a light scratch on the rear panel. The internal wiring, solenoid valve bank, pneumatic plumbing, and Minarik motor controller all appear intact and undisturbed. The J-152 controller unit and a full set of pneumatic drawings (BF990179) are included. This machine is large and heavy and will require freight shipment — please contact us for a shipping quote before placing your order. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Pacific Trinetics Corporation
Model:
BF-200
MPN:
BF-200
Secondary Model:
J-152
SKU:
44930
Type:
Semi-Automatic Blanker/Framer
Condition:
Used – Inspected, Not Bench-Tested
Voltage:
120V
Current Rating:
10 Amps
Frequency:
50/60 Hz
Phase:
Single Phase
Power Requirements:
120V AC, Single Phase, 50/60Hz, 10A
Maximum Tape Width:
6.5 inches
Frame Stage Dimensions:
8.5 x 8.5 inches
Included Controller:
PTC Model J-152, 110V Single Phase, 60Hz, 5A
Documentation Included:
Pneumatic Drawing Set BF990179 (dated 3/5/98)
Motor Controller:
Minarik Corporation DC motor controller
Pneumatic Drawing Number:
BF990179
Form Factor:
Freestanding Cabinet on Casters
Application:
Semiconductor tape-and-reel, lead frame blanking
Country/Region of Manufacture:
United States
Seller Notes:
Includes PTC J-152 controller and pneumatic drawing set BF990179. Freight shipment required.
Condition Notes:
PTC BF-200 Semi-Automatic Blanker/Framer inspected, appears in good condition, not powered or tested at our facility. J-152 controller and pneumatic drawings included. Freight shipment required.
