Power Techniques

Power Techniques PT630D Dual Hot-Swap 2U Rackmount AC Power Supply 220-240V 24A

(No reviews yet) Write a Review
SKU:
39522
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
37.00 LBS
Shipping:
Calculated at Checkout
  • Power Techniques PT630D 2U rackmount hot-swap power supply – front view with dual drawer modules and 30A twist-lock power cable draped on top
  • PT630D left hot-swap module front panel – POWER APPLIED and ON indicator LEDs, IEC C14 inlet, power button, and pull handle

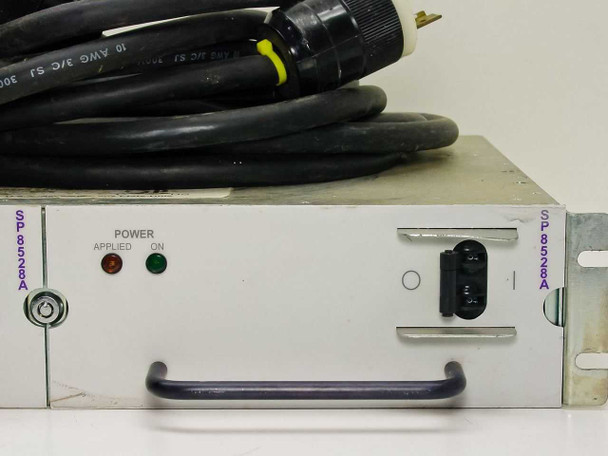

  • PT630D right hot-swap module front panel – POWER APPLIED and ON indicator LEDs, IEC C14 inlet, and pull handle; asset tag SP 8528A visible
  • Close-up of 30A 250V twist-lock input plug (NEMA L6-30P style) included with the PT630D power supply

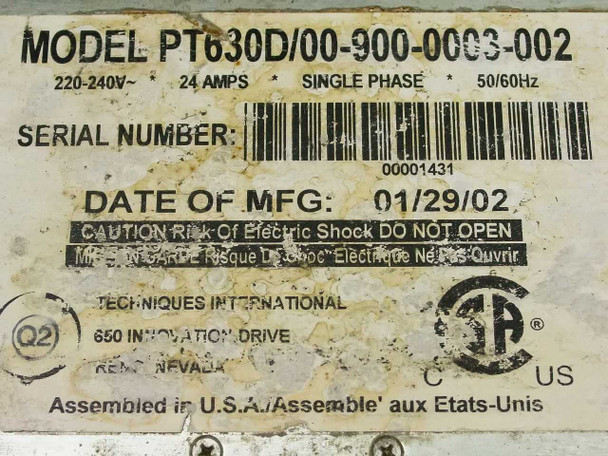

  • Power Techniques PT630D rating label – model PT630D/00-900-0003-002, 220-240V, 24 Amps, Single Phase, 50/60Hz, manufactured 01/29/02, Techniques International Reno NV
  • Power Techniques PT630D rear view – 12 IEC C13 output receptacles and dual power cable inputs visible
  • PT630D rear output panel close-up – two banks of 6 IEC C13 receptacles (12 total) for rack-mounted equipment

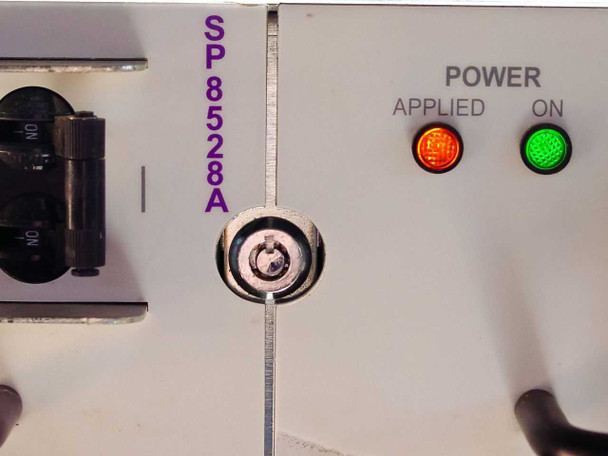

  • PT630D center seam close-up – key lock cylinder between the two hot-swap modules, POWER APPLIED (red) and ON (green) indicator LEDs illuminated
$13.90
Was: $230.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Power Techniques PT630D Dual Hot-Swap 2U Rackmount AC Power Supply 220-240V 24A

The Power Techniques PT630D is a 2U rackmount fault-tolerant AC power distribution unit built around two independent hot-swap modules. Each module accepts its own AC input, processes it through an internal circuit breaker, line filter, and MOV transient suppressor, then feeds AC power to one bank of output receptacles on the rear of the chassis. Because the two inputs are completely independent, the system supports N+1 redundancy — if one module fails or needs replacement, it can be swapped out without powering down the rack. Manufactured by Techniques International of Reno, Nevada.

Specifications & What's Included

  • Model: PT630D / PT630D/00-900-0003-002
  • Input Voltage: 220-240V AC
  • Input Current: 24 Amps
  • Phase: Single Phase
  • Frequency: 50/60 Hz
  • Input Connector: 30A / 250V twist-lock plug (NEMA L6-30P style)
  • Output Receptacles: 12 × IEC C13 (two banks of 6, one bank per hot-swap module)
  • Hot-Swap Modules: 2 (independent, each with its own IEC C14 AC inlet, circuit breaker, line filter, MOV protection)
  • Front Panel Indicators: POWER APPLIED (red LED) and POWER ON (green LED) per module
  • Protection: Circuit breaker, line filtering, MOV surge/transient protection per module
  • Form Factor: 2U Rackmount
  • Redundancy: N+1 fault-tolerant; supports dual-corded rack equipment
  • Certifications: CSA, UL
  • Date of Manufacture: January 29, 2002
  • Manufacturer: Techniques International, 650 Innovation Drive, Reno, NV (USA)
  • Includes: 30A/250V twist-lock input power cable

Applications

The PT630D is designed for data center and telecommunications rack environments where power continuity is critical. It provides fault-tolerant AC distribution for rack-mounted servers, network equipment, and other devices with IEC C14 power inlets. By routing each independent AC input to a separate bank of outputs, the unit allows dual-corded equipment — servers and switches with two power supplies — to draw from two separate circuits, so a single power path failure does not interrupt operation. The hot-swap design also lets a failed input module be replaced during live operation without shutting down the rack. This type of redundant rackmount PDU was commonly used in late-1990s and early-2000s data center buildouts and co-location environments where N+1 power architecture was a standard requirement for high-availability systems.

Condition: Used
This Power Techniques PT630D Dual Hot-Swap Rackmount AC Power Supply has been pulled from a working environment where it was previously in use. The unit is in good used condition overall — the chassis shows typical surface scuffing and handling marks consistent with rack service, and both module front panels carry an asset tag written in purple marker. The 30A/250V twist-lock input cable is included. Both hot-swap modules are present and appear complete. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Power Techniques / Techniques International
Model:
PT630D
MPN:
PT630D/00-900-0003-002
Type:
Dual Hot-Swap Rackmount AC Power Distribution Unit
SKU:
39522
Input Voltage:
220-240V AC
Input Current:
24 Amps
Phase:
Single Phase
Frequency:
50/60 Hz
Input Connector:
30A 250V Twist-Lock (NEMA L6-30P)
Output Receptacles:
12 x IEC C13
Number of Hot-Swap Modules:
2
Form Factor:
2U Rackmount
Redundancy:
N+1 Fault Tolerant, Hot-Swap
Protection:
Circuit Breaker, Line Filter, MOV
Date of Manufacture:
01/29/2002
Country/Region of Manufacture:
United States
Certifications:
CSA, UL
Seller Notes:
Includes 30A/250V twist-lock power cable
Condition Notes:
This Power Techniques PT630D hot-swap rackmount AC power supply was pulled from a working environment. Both modules are present and intact. Chassis shows normal rack-service wear. Includes 30A/250V twist-lock cable.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

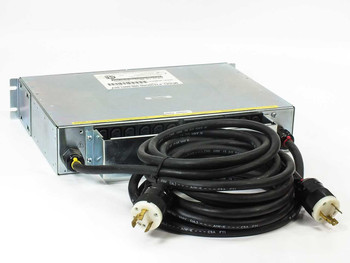

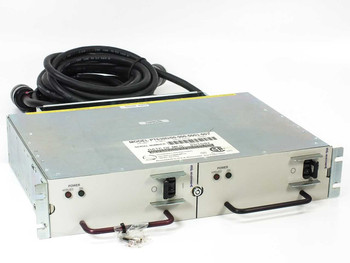

Techniques PT630D/00-900-0003-002 Fault Tolerant Power Controller front view showing two SP8528A modules in 2U rackmount chassis with power cables attached Techniques PT630D power controller right-side view showing chassis depth and twist-lock power cables coiled alongside
