Techniques PT630D 00-900-0003-002 Fault Tolerant Power Controller 220V 24A 2U

(No reviews yet) Write a Review
SKU:
49753
MPN:
PT630D/00-900-0003-002
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
40.00 LBS
Shipping:
Calculated at Checkout

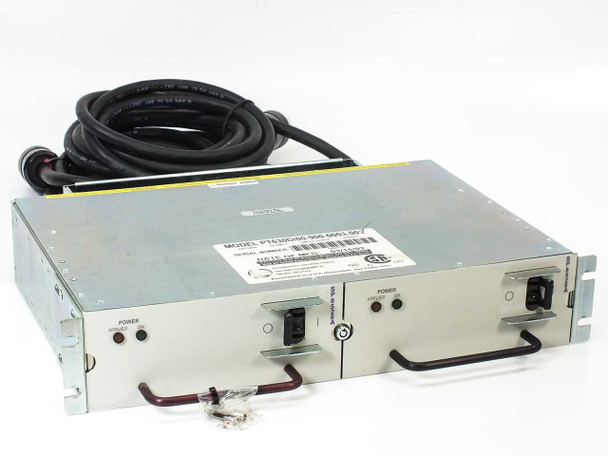

  • Techniques PT630D/00-900-0003-002 Fault Tolerant Power Controller front view showing two SP8528A modules in 2U rackmount chassis with power cables attached
  • Techniques PT630D power controller right-side view showing chassis depth and twist-lock power cables coiled alongside

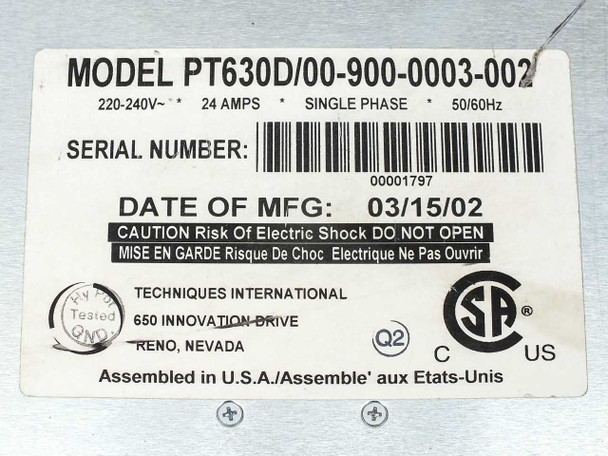

  • Techniques PT630D rating plate label showing model PT630D/00-900-0003-002, 220-240V, 24 Amps, Single Phase, 50/60Hz, serial number, date of manufacture 03/15/02, and Techniques International CSA markings

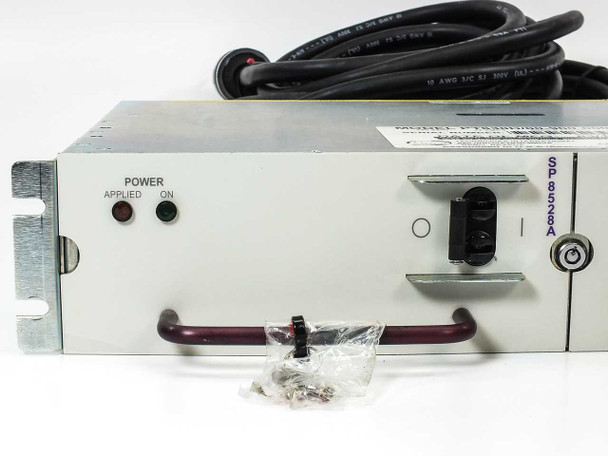

  • SP8528A module close-up showing front panel with POWER APPLIED and POWER ON indicator LEDs, IEC C14 inlet, and included hardware bag with keys
  • Close-up of included accessories bag containing keys and hardware for the Techniques PT630D power controller
  • Second SP8528A module front panel showing POWER APPLIED and ON indicator LEDs, IEC C14 inlet, and on/off switch

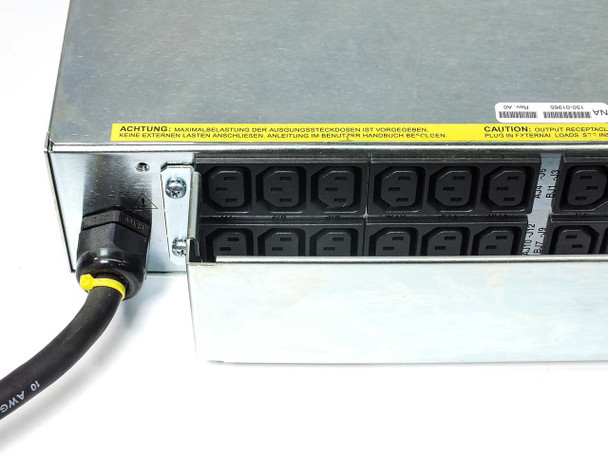

  • Techniques PT630D rear panel showing one bank of 12 IEC C13 output receptacles with yellow warning caution label and input power cable connector

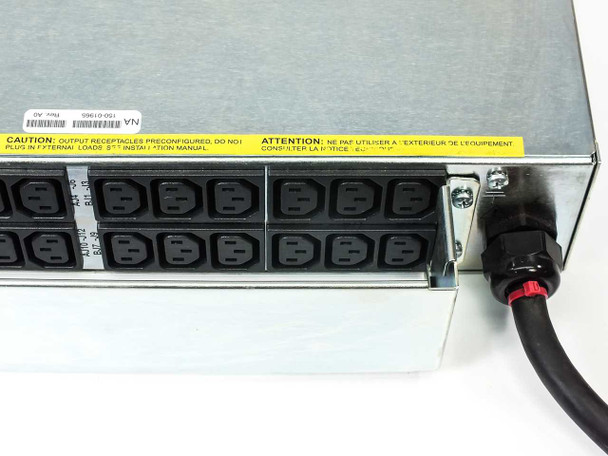

  • Techniques PT630D rear panel opposite end showing second bank of 12 IEC C13 output receptacles, caution label, and input cable connection point
  • Techniques PT630D included twist-lock power input cable detail showing 10 AWG, 300V rating, and NEMA twist-lock plug end

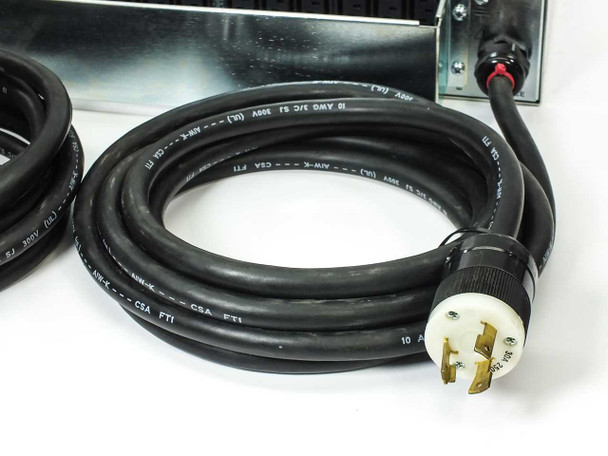

  • Techniques PT630D second included twist-lock power cable showing NEMA twist-lock plug and 10 AWG cable markings
$175.00
Was: $350.00
Current Stock: 1

Sold Out

Description

Techniques PT630D 00-900-0003-002 Fault Tolerant Power Controller 220V 24A 2U

Single-phase fault tolerant power distribution unit (PDU) for 19-inch rackmount environments. Distributes 220-240VAC input across 24 IEC C13 outlets arranged in 2 banks of 12, supporting up to 24 amps.

Specifications & What's Included

  • Input: 220-240VAC, 50/60 Hz, single phase
  • Current Rating: 24 Amps
  • 24 IEC C13 outlets (2 banks of 12)
  • Form Factor: 2U rackmount, 19-inch
  • Includes: 2x SP8528A power modules, twist-lock power cables, keys
  • Certification: CSA (C/US)
  • Manufactured: 2002, United States

Applications

Used in server rooms, data centers, and telecom facilities where controlled power distribution and fault tolerance are required. The PT630D distributes AC power to multiple rack-mounted devices with redundancy via dual power modules. Compatible with standard 19-inch rack infrastructure supporting equipment requiring IEC C13 connectors.

Condition: Used
This Techniques PT630D/00-900-0003-002 Fault Tolerant Power Controller has been tested at our facility and is in good working order. The chassis and both SP8528A modules are clean overall with light cosmetic wear typical of used rack equipment. The front panels show minor scuffing and the labels are intact and fully legible. Both banks of IEC C13 output receptacles on the rear appear clean and undamaged. The unit includes the two twist-lock power input cables and the original keys. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Techniques International
Model:
PT630D
MPN:
PT630D/00-900-0003-002
Secondary Model:
00-900-0003-002
Type:
Fault Tolerant Power Controller / PDU
SKU:
49753
Input Voltage:
220-240VAC
Current Rating:
24 Amps
Phase:
Single Phase
Frequency:
50/60 Hz
Number of Outlets:
24 (2 banks of 12)
Outlet Type:
IEC C13
Form Factor:
2U Rackmount, 19-inch
Included Modules:
2x SP8528A Power Modules
Includes:
Power cables (twist-lock), keys
Country/Region of Manufacture:
United States
Date of Manufacture:
03/15/2002
Certifications:
CSA (C/US)
Condition:
Used – Inspected and Tested
Seller Notes:
Includes 2x SP8528A modules, twist-lock power cables, and keys. Tested and in working order.
Condition Notes:
Techniques PT630D/00-900-0003-002 Fault Tolerant Power Controller. Tested and in good working order. Includes 2x SP8528A modules, twist-lock power cables, and keys. Light cosmetic wear typical of used rack equipment.
View AllClose

Related Products

Related Products

Varian VJC6767S1AKY HPA Controller front panel view showing Power switch, Lamp Test, and Status/Alarms indicators — 2U rackmount Varian VJC6767S1AKY HPA Controller rear view showing DB15 connectors, 50-pin D-sub, ribbon cables, and circular power connector
Add to Cart
Quick view

Varian VJC6767S1AKY HPA Controller 01008831-00 115VAC 2U Rackmount Satcom

Varian

$200.00
Was: $400.00
Varian VJC6767S1AKY HPA Controller 01008831-00 115VAC 2U Rackmount SatcomThe Varian VJC6767S1AKY is a 2U rackmount High Power Amplifier (HPA) controller made by Varian Microwave Equipment Products of...
49688
SKU:
49688
Availability:
Usually ships within 1-2 business days.
Weight:
11.00 LBS
Brand:
Varian
Model:
VJC6767S1AKY
MPN:
01008831-00
Secondary Model:
010008831-00
Type:
HPA Controller / Satcom Control Unit
SKU:
49688
Form Factor:
2U Rackmount
Power Requirements:
115VAC
Power Connector:
Military-style circular connector (J3)
Rear Connectors:
DB15 x2 (J1, J4), large 50-pin D-sub, J3 circular
Control Modes:
Manual, Auto, Local, Remote
Status / Alarms:
EXT Alarm, HPA 1 Fault, HPA 2 Fault indicators
Front Panel Controls:
Power switch, Lamp Test, Control mode switches
Hardware Revision:
Rev B (visible on internal module label 010075200)
Country/Region of Manufacture:
United States
Manufacturer Location:
Santa Clara, California
Application:
Satellite Uplink / HPA Monitoring and Control
Condition:
Used – Inspected
Seller Notes:
Includes attached ribbon cables and power cable harness
Condition Notes:
Varian VJC6767S1AKY HPA Controller — inspected and in good condition. Chassis shows light handling wear. Front panel switches and indicators intact. Rear connectors and ribbon cables present. Power cable included.

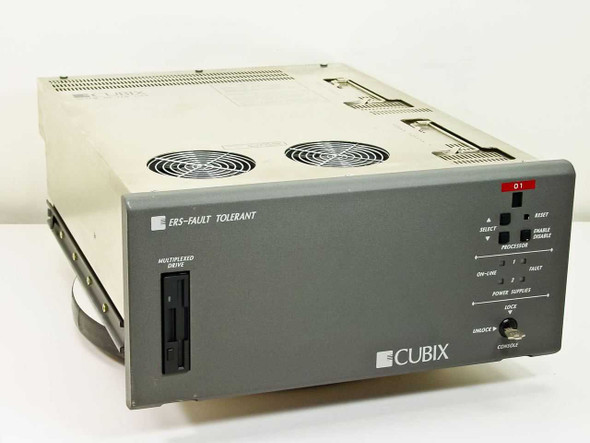

Cubix ERS-Fault Tolerant FT Subsystem front panel view showing multiplexed floppy drive, dual fans, and control panel Cubix ERS-Fault Tolerant FT Subsystem rear and side view showing dual power supplies and 16-slot ISA card backplane
