Description
Power-One HE15-9-A HE5-9-A International Series Linear Power Supply 15VDC 9A CE
The Power-One HE15-9-A is a single-output linear DC power supply from Power-One's International Series, rated at 15VDC at 9 amps (135W). It uses a linear regulation design built around a bank of pass transistors (four TO-3-package devices, Q1–Q4) mounted on the front panel, along with a large laminated-core transformer and filter capacitors — the hallmarks of this class of high-quality linear supply from the mid-1990s. The International Series designation indicates compliance with international safety and EMC standards for use in global markets.
Specifications & What's Included
- Model: HE15-9-A (also listed as HE5-9-A)
- Series: Power-One International Series (Linear Component Power Supplies)
- Output Voltage: 15VDC
- Output Current: 9A
- Output Power: 135W
- Max Fuse Rating: 3A (per jumper configuration label on unit)
- Pass Transistors: 4x TO-3 package devices (Q1–Q4); Q1 marked SN3055 (Texas Instruments 2N3055-type)
- Regulation: Linear
- Certifications: CE, TÜV, UL, ISO 9001, EN29001
- Standards: EN60938:1992 + A1 + A2:1993; LVD 73/23/EEC
- Form Factor: Chassis / panel-mount module with rack-mounting ears
- Country of Manufacture: United States (Power-One, Inc., Camarillo, CA)

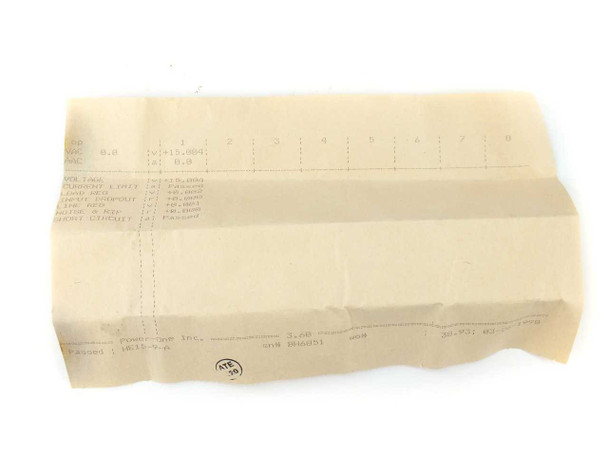

- Included: Declaration of Conformity (dated September 27, 1996) and partial spec/wiring document (both moisture-damaged)
Applications
Power-One's International Series linear power supplies were designed as modular component supplies intended for integration into larger OEM systems, laboratory instruments, and industrial equipment requiring a stable, low-noise DC source. Linear supplies of this type are favored over switchers in noise-sensitive applications such as analog instrumentation, audio equipment, communication systems, and precision measurement where switching noise would be problematic. The HE-series chassis-mount format allowed system integrators to install the supply directly into a rack or enclosure. Power-One, Inc. of Camarillo, California was a prominent manufacturer of linear and switching power supplies from the 1970s through the 2000s, and their International Series products were widely used in scientific, industrial, and telecommunications equipment during the 1980s and 1990s. Buyers today seek these supplies for legacy system maintenance, repair, and OEM replacement.

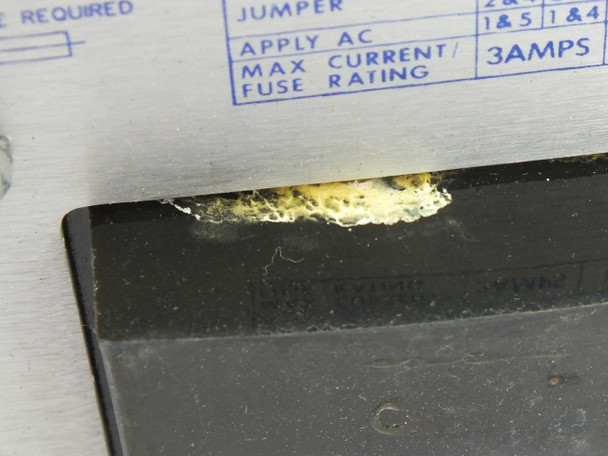

This Power-One HE15-9-A International Series Linear Power Supply is open box — it is new from the manufacturer but has been stored for an extended period, possibly past its shelf/expiration date, and was exposed to moisture during storage. The photos reflect this: transistor Q1's mounting hardware shows significant rust and corrosion, and there is degraded adhesive residue on the terminal block. The included Declaration of Conformity document and a partial spec sheet also show moisture damage (staining and wrinkling). This unit has not been powered or tested at our facility. Buyers should inspect carefully before use and assess whether corroded components require replacement. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Power-One |
Model: |
HE15-9-A |
Secondary Model: |
HE5-9-A |
MPN: |
HE15-9-A |
Type: |
Linear Power Supply |
SKU: |
52640 |
Series: |
International Series |
Output Voltage: |
15VDC |
Output Current: |
9A |
Output Power: |
135W |
Max Fuse Rating: |
3A |
Number of Outputs: |
1 |
Certifications: |
CE, TÜV, UL, ISO 9001 |
Standards: |
EN60938:1992+A1+A2:1993, LVD 73/23/EEC |
Form Factor: |
Chassis / Panel Mount |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes Declaration of Conformity and partial spec sheet. Exposed to moisture in storage. |
Condition: |
Open Box – Moisture Exposure, Corrosion on Components |
Condition Notes: |
Power-One HE15-9-A Linear Power Supply. Open box, new from manufacturer but stored long-term with moisture exposure. Photos show rust on Q1 mounting hardware and degraded residue on terminal block. Not powered or tested. |
