Power-One

Power-One HC15-3-A International Series Power Supply 15VDC 3A 100-240V

(No reviews yet) Write a Review
SKU:
50380
MPN:
HC15-3-A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

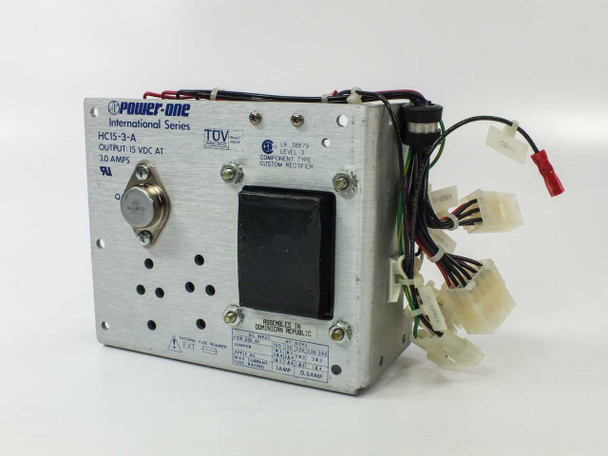

  • Power-One HC15-3-A International Series power supply – front panel showing model label, TUV certification, UL mark, and output wire harness
  • Power-One HC15-3-A – top/rear view showing open-frame PCB, transformer, control board, trimmer potentiometer, and multi-wire harness
  • Power-One HC15-3-A – left side view showing open-frame construction, toroidal transformer, and regulation circuitry board
  • Power-One HC15-3-A – rear view showing output Molex-style wire connectors and heatsink fins
  • Power-One HC15-3-A – AC input label showing jumper-selectable 100/120/220/230-240V input at 47-63Hz, fuse ratings, and assembled-in Dominican Republic marking
  • Power-One HC15-3-A – close-up of front panel label showing HC15-3-A model, 15 VDC at 3.0 Amps output, TUV and UL Level 3 Custom Rectifier certifications
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

Power-One HC15-3-A International Series Power Supply 15VDC 3A 100-240V

Linear open-frame power supply delivering 15 VDC at 3.0 amperes. Designed for industrial and telecom equipment requiring a regulated DC output from standard AC mains.

Specifications & What's Included

  • Output: 15 VDC, 3.0 A, 45 W
  • Input: 100–240 VAC, 47–63 Hz (jumper selectable)
  • Form Factor: Open frame, panel mount
  • Connectors: Wire harness with Molex-style connectors
  • Certifications: TUV, UL (LR 38879 Level 3)
  • Manufactured in Dominican Republic

Applications

Power-One linear supplies were used throughout industrial control systems, telecom equipment, and cabinet-mounted instrumentation. The 15V, 3A output is typical for low-power digital logic, microprocessor boards, and sensor circuits. This International Series design supports global AC input voltages via jumper selection, making it compatible with equipment deployed across different regions and power standards.

Condition: Used
This Power-One HC15-3-A International Series power supply has been inspected and is in good used condition. It was pulled from a working environment where it was previously in active use. The unit shows typical light wear consistent with service use. The wire harness and connectors appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Power-One
Model:
HC15-3-A
MPN:
HC15-3-A
Type:
Linear Open-Frame Power Supply
SKU:
50380
Series:
International Series
Output Voltage:
15 VDC
Output Current:
3.0 A
Output Power:
45 W
AC Input Voltage:
100, 120, 220, 230-240 VAC (jumper selectable)
Input Frequency:
47-63 Hz
Max Input Current (100/120V):
1 AMP
Max Input Current (220/240V):
0.5 AMP
Number of Outputs:
1
Output Connector:
Wire harness with Molex-style connectors
Form Factor:
Open Frame / Panel Mount
Certifications:
TUV, UL (LR 38879 Level 3, Custom Rectifier)
Component Type:
Custom Rectifier
Country/Region of Manufacture:
Dominican Republic
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes attached wire harness with Molex-style connectors. No other accessories.
Condition Notes:
Power-One HC15-3-A International Series power supply in good used condition. Pulled from a working environment where it was in active use. Wire harness and connectors appear intact. Light wear consistent with normal service use.
View AllClose
