Description

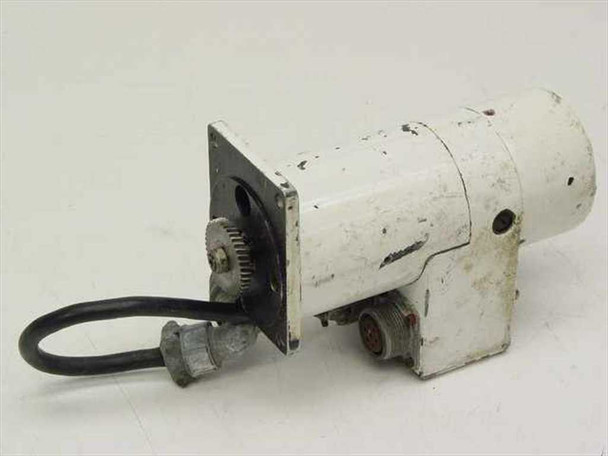

Photo-Sonics Series GOV Film Camera Drive Motor 115V 1/4 HP 60Hz Single Phase
Single-phase AC motor designed to drive high-speed film cameras and transport mechanisms. Manufactured by Photo-Sonics in Burbank, California for professional cinematography equipment.
Specifications & What's Included
- Model: Series GOV | Assembly Number: 261-1032-000
- 115V, 1/4 HP, 60Hz single phase
- Approximately 120 RPM (nameplate rated)
- Continuous duty cycle
- Spur gear drive output with mounted flange
- Multi-pin circular military-style connector with attached cable
- Motor only; cable included
Applications
This motor type was used in professional film camera systems for controlling film transport and drive mechanisms. Photo-Sonics equipment was standard in broadcast and motion picture production environments. The Series GOV is compatible with Photo-Sonics high-speed camera assemblies and optical systems from that manufacturing era.
Condition: Used

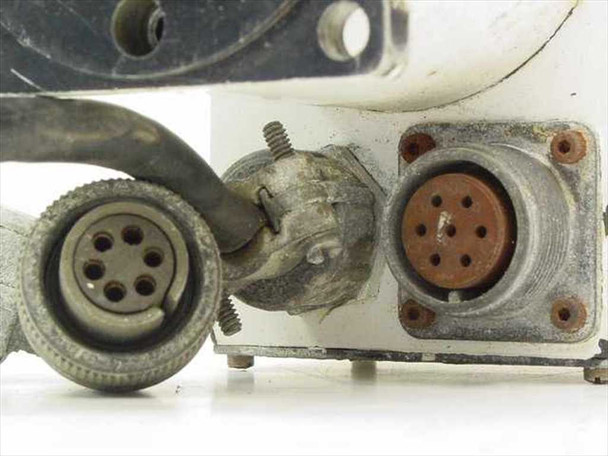

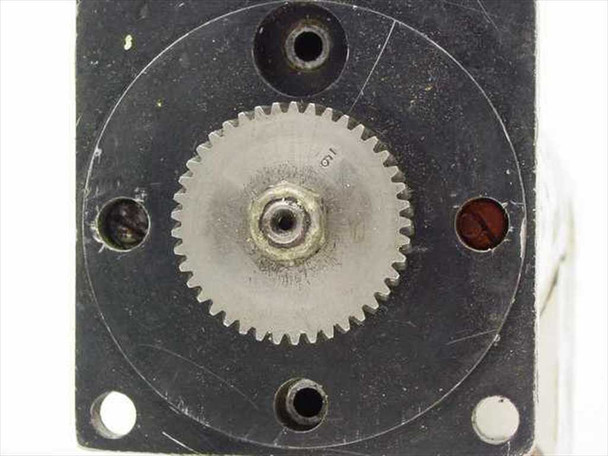

This Photo-Sonics Series GOV Film Camera Drive Motor has been inspected and appears to be in good used condition. It was pulled from a working environment where it was in service and functional. The white painted housing shows paint loss, chipping, and general wear consistent with active field use. The multi-pin circular connectors show surface corrosion and some wear on the connector housings — buyers should inspect connector contact condition closely before use. The spur gear output on the drive face appears intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Photo-Sonics Series GOV Film Camera Drive Motor has been inspected and appears to be in good used condition. It was pulled from a working environment where it was in service and functional. The white painted housing shows paint loss, chipping, and general wear consistent with active field use. The multi-pin circular connectors show surface corrosion and some wear on the connector housings — buyers should inspect connector contact condition closely before use. The spur gear output on the drive face appears intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Photo-Sonics |
Model: |
Series GOV |
MPN: |
Series GOV |
Assembly Number: |
261-1032-000 |
Wiring Diagram: |
15-121 |
Type: |
Film Camera Drive Motor |
Voltage Rating: |
115V |
Power Rating: |
1/4 HP |
Phase: |
Single Phase |
Frequency: |
60Hz |
RPM: |
120 (approx — per nameplate) |
Duty Cycle: |
Continuous (per nameplate) |
Connector Type: |
Multi-pin circular military-style connector |
Drive Interface: |
Spur gear output |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Burbank, California |
Form Factor: |
Inline motor with mounting flange |
Application: |
High-speed film camera drive / film transport |
Condition: |
Used – Pulled from Working Environment |
SKU: |
35520 |
Seller Notes: |
Motor only with attached cable. Pulled from a working environment. |
Condition Notes: |
Photo-Sonics Series GOV Film Camera Drive Motor. Pulled from a working environment where it was in active use. Housing shows paint chipping and wear; connectors show surface corrosion. Motor appeared functional when removed from service. |
