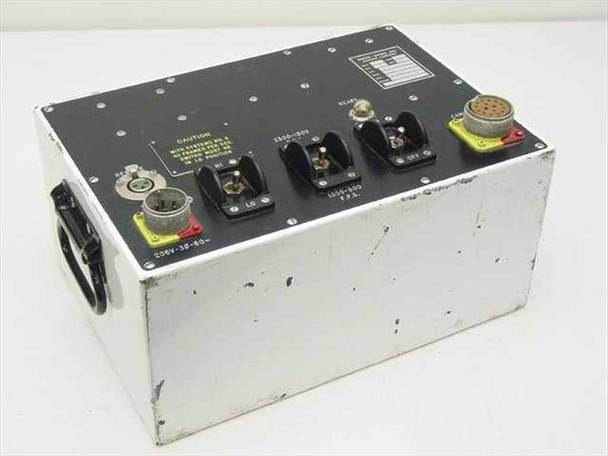

Photo-Sonics 22-1099-100 Control Box 208V 3-Phase 30A 60Hz High-Speed Camera
The Photo-Sonics Inc 22-1099-100 is a three-phase control box designed to power and control Photo-Sonics high-speed film camera systems — specifically System 1 and System 4. Built by Photo-Sonics Inc of Burbank, California, it provides the frame-rate switching, power distribution, and remote triggering functions required to operate high-speed cameras in demanding research and production environments. The unit accepts 208V three-phase 60Hz input and delivers the regulated control needed for synchronized, high-frame-rate film capture.
Specifications & What's Included
- Manufacturer: Photo-Sonics Inc, Burbank, California
- Assembly (Part) Number: 22-1099-100
- Wiring Diagram: 22-1/8
- Type: Control Box
- Compatible Systems: Photo-Sonics System 1 & System 4
- Input Voltage: 208V
- Phase: Three-Phase (3Ø)
- Frequency: 60Hz
- Current Rating: 30A
- FPS Range — High (HI): 2500–1500 frames per second
- FPS Range — Low (LO): 1000–500 frames per second
- Front Panel Connectors: Multi-pin circular REMOTE/INPUT connector, multi-pin CAMERA output connector
- Front Panel Controls: HI/LO frame-rate selector switch, ON/OFF READY switch, HI/LO toggle switches for FPS range selection
- Caution note (System 4): At 40 frames per second, switch must be in LO position
- Enclosure: Aluminum portable/benchtop enclosure with carry handle
- Included: Control box only — no camera included
