Philips

Philips BHL400L40 400W Electromagnetic Ballast 230V 50Hz HPL HPI Copper Iron

(No reviews yet) Write a Review
SKU:
48379
MPN:
BHL400L40
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • Philips BHL400L40 400W electromagnetic ballast – front three-quarter view showing enclosure and terminal block

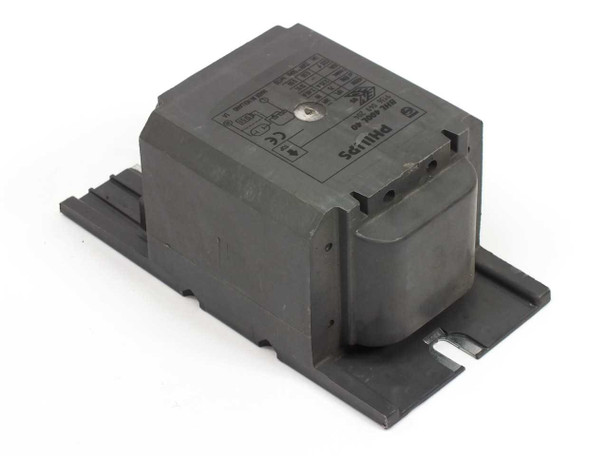

  • Philips BHL400L40 electromagnetic ballast – rear three-quarter view showing label area and mounting base
  • Philips BHL400L40 ballast label showing model number 9136 049 204, 400W, 230V 50Hz, HPL/HPI ratings

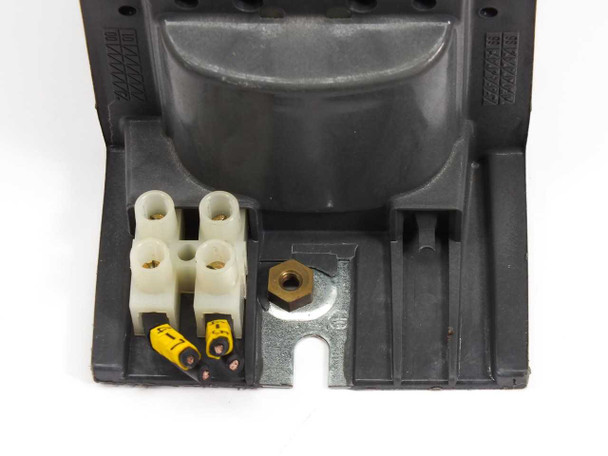

  • Philips BHL400L40 ballast – close-up of terminal block with screw connectors and yellow capacitor leads

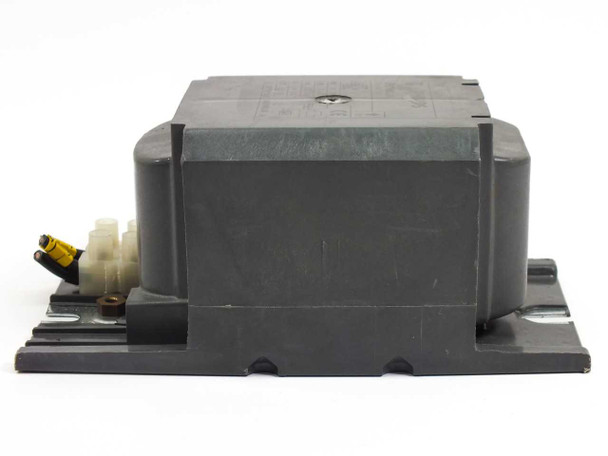

  • Philips BHL400L40 ballast – side profile view showing enclosure height and mounting foot
  • Philips BHL400L40 ballast – end view showing transformer core and top label

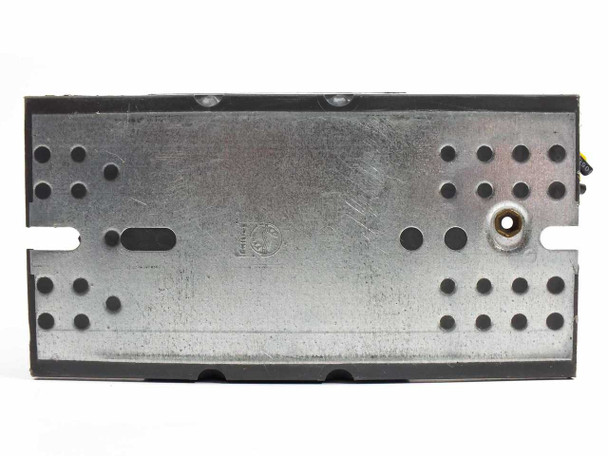

  • Philips BHL400L40 ballast – bottom view showing metal mounting plate with ventilation slots and mounting holes
$15.00
Was: $39.00
Current Stock: 1

Sold Out

Description

Philips BHL400L40 400W Electromagnetic Ballast 230V 50Hz HPL HPI Copper Iron

Electromagnetic ballast for 400W HID lamps. This copper-iron core unit operates at 230V, 50Hz and supports both HPL (mercury) and HPI (metal halide) lamp types.

Specifications & What's Included

  • Model: BHL400L40 (MPN: 9136 049 204)
  • Power Rating: 400W
  • Input: 230V, 50Hz
  • Current: 2.15 A (with PF correction), 3.25 A (without)
  • Power Loss: 22.0 W
  • Compatible Lamps: HPL, HPI
  • Connector: Screw terminal block
  • Ballast only; no accessories included

Applications

Used in HID lighting fixtures for industrial and commercial installations.

Condition: Used
This Philips BHL400L40 400W electromagnetic HID ballast has been inspected and shows normal cosmetic wear consistent with prior use. The terminal block and wiring connections appear intact. Please view our photos and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Philips
Model:
BHL400L40
MPN:
9136 049 204
SKU:
48379
Condition:
Used – Inspected
Seller Notes:
Ballast only; no additional accessories included.
Country of Manufacture:
Netherlands
Form Factor:
Encapsulated / Standalone
Ballast Type:
Electromagnetic Copper/Iron
Power Rating:
400W
Input Voltage:
230V
Frequency:
50Hz
Input Current (with PF correction):
2.15 A
Input Current (without PF correction):
3.25 A
Power Losses (Gear):
22.0 W
Compatible Lamp Types:
HPL (High Pressure Mercury), HPI (Metal Halide)
Power Factor (HPL):
0.55
Power Factor (HPI):
0.50
Connector Type:
Screw terminal block
Application:
HID lighting fixtures, industrial and commercial lighting
Condition Notes:
This Philips BHL400L40 400W electromagnetic HID ballast has been inspected and shows normal cosmetic wear consistent with prior use. The terminal block and wiring connections appear intact.
View AllClose
