PHD Inc CRS2U12X3/4-T22 214221-01 CRS-Series Compact Pneumatic Cylinder Switch
The PHD Inc CRS2U12X3/4-T22 is a compact pneumatic cylinder from PHD's CRS-Series, designed for space-constrained automation and motion control applications. It features a 12 mm bore and 3/4-inch stroke in a rugged aluminum body, with integrated switch mounting capability denoted by the T22 suffix. This unit is new and unused open-box surplus stock.
Specifications & What's Included
- Manufacturer: PHD Inc
- Model: CRS2U12X3/4-T22
- Part Number / MPN: 214221-01
- Series: CRS-Series (Compact Round Cylinder Switch-Ready)
- Bore Size: 12 mm
- Stroke: 3/4 in (approximately 19 mm)
- Actuator Type: Pneumatic (double-acting compact cylinder)
- Body Material: Aluminum
- Rod End: Threaded male rod end (visible in photos)

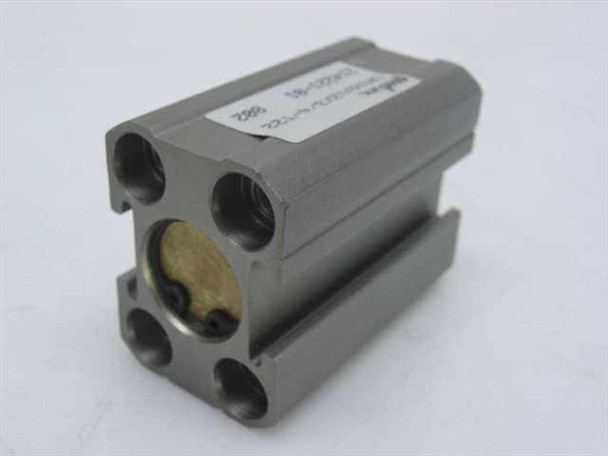

- Port Style: Side port with brass fitting (visible in rear photo)
- Switch Mount: T22 switch mount configuration
- Date Code: 802
- Condition: New, unused — open-box surplus; original packaging may not be included
Applications
PHD Inc's CRS-Series compact cylinders are used throughout industrial automation wherever a small-footprint, short-stroke pneumatic actuator is needed. Common applications include pick-and-place machinery, assembly fixtures, clamping and positioning systems, and robotic end-of-arm tooling. The T22 switch designation indicates this cylinder body is configured to accept a compatible magnetic reed or solid-state position switch for feedback signaling — a standard feature in automated assembly and packaging lines where end-of-stroke detection is required. PHD Inc, headquartered in Fort Wayne, Indiana, has produced pneumatic motion control components since the 1950s; the CRS-Series represents their compact round-body cylinder line, widely used in manufacturing and process automation environments.

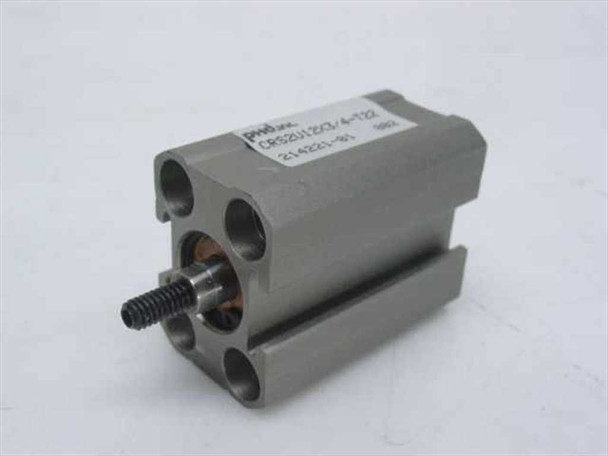

This PHD Inc CRS2U12X3/4-T22 CRS-Series compact pneumatic cylinder is new and unused. It is open-box surplus stock — the unit itself is new and uninstalled, but it may not come in its original manufacturer's packaging. The model number and part number (214221-01) are clearly legible on the label. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
PHD Inc |
Model: |
CRS2U12X3/4-T22 |
MPN: |
214221-01 |
Secondary Model: |
214221-01 |
Type: |
Compact Pneumatic Cylinder |
Product Series: |
CRS-Series |
Bore Size: |
12 mm |
Stroke: |
3/4 in |
Actuator Type: |
Pneumatic |
Mount Style: |
Compact / Switch-Ready |
Body Material: |
Aluminum |
SKU: |
26422 |
Condition: |
New – Open Box |
Country/Region of Manufacture: |
United States |
Seller Notes: |
New open-box unit; may be out of original packaging. Label confirmed: CRS2U12X3/4-T22, 214221-01. |
Condition Notes: |
PHD Inc CRS2U12X3/4-T22 CRS-Series compact pneumatic cylinder, part 214221-01. New, unused, open-box surplus — unit is new and uninstalled; original packaging may not be included. Please contact us with any questions. |
