PHD AS1X1-P Tom Thumb Pneumatic Cylinder 477370-06 1" Stroke 5/16 Rod

(No reviews yet) Write a Review
SKU:
46708
MPN:
AS1X1-P
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • PHD Tom Thumb Pneumatic Cylinder 477370-06 5/16 Rod 1" Stroke AS1X1-P
  • PHD Tom Thumb Pneumatic Cylinder 477370-06 5/16 Rod 1" Stroke AS1X1-P

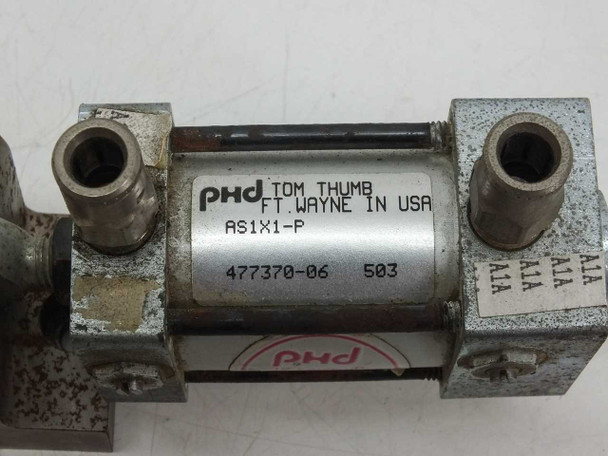

  • PHD Tom Thumb AS1X1-P cylinder body label showing model AS1X1-P, part number 477370-06, and Fort Wayne IN USA manufacture — close-up
  • PHD AS1X1-P Tom Thumb Pneumatic Cylinder with swivel mounts, rod retracted — front view showing full assembly
  • PHD AS1X1-P Tom Thumb Pneumatic Cylinder assembly showing rod and swivel mount detail — angled side view
$35.00
Was: $70.00
Current Stock: 1

Sold Out

Description

PHD AS1X1-P Tom Thumb Pneumatic Cylinder 477370-06 1" Stroke 5/16 Rod

Miniature double-acting pneumatic cylinder from PHD's Tom Thumb series. Delivers controlled linear motion in compact applications requiring precise actuation with 1-inch stroke travel.

Specifications & What's Included

  • Model: AS1X1-P | MPN: 477370-06
  • Stroke Length: 1 inch
  • Rod Diameter: 5/16 inch
  • Port Size: 5/16 inch
  • Type: Double Acting (pneumatic)
  • Mounting: Swivel Mount (2 included)
  • Manufactured in United States

Applications

Tom Thumb cylinders are used in assembly machinery, automation equipment, and precision positioning systems. These miniature actuators function in pick-and-place operations, clamping mechanisms, and valve control circuits. Compatible with standard 5/16-inch pneumatic line connections and industrial control systems using compressed air supplies.

Condition: Used
This PHD AS1X1-P Tom Thumb Pneumatic Cylinder (part 477370-06) has been inspected and is in good used condition. The cylinder body is clean and intact, with the label clearly legible. The swivel mounts show surface rust and light corrosion typical of used industrial components, as visible in the photos. Both removable swivel mounts are present and included. The rod moves freely. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
PHD
Model:
AS1X1-P
MPN:
477370-06
Type:
Miniature Pneumatic Cylinder
SKU:
46708
Series:
Tom Thumb
Stroke Length:
1 in
Rod Diameter:
5/16 in
Port Size:
5/16 in
Mounting:
Swivel Mount (2 included)
Actuator Type:
Double Acting (pneumatic)
Country/Region of Manufacture:
United States
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes 2 removable swivel mounts
Condition Notes:
PHD AS1X1-P Tom Thumb Pneumatic Cylinder 477370-06 has been inspected and is in good used condition. Both swivel mounts included. Swivel mounts show surface rust typical of used industrial parts. Rod moves freely.
View AllClose
