Parker

Parker AC890 890CS-532320B0-B00-U Common Supply Module 208-500V 3Ph 32A

(No reviews yet) Write a Review
SKU:
52233
MPN:
890CS-532320B0-B00-U
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
14.00 LBS
Shipping:
Calculated at Checkout
  • Parker AC890 890CS-532320B0-B00-U Common Supply Module – front-left angled view showing operator panel and terminal blocks

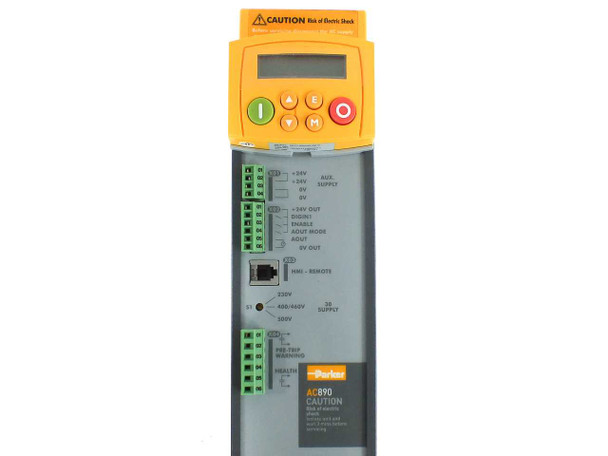

  • Parker AC890CS Common Supply Module – front face close-up showing operator display, green/red buttons, and labeled terminal strip
  • Parker AC890 890CS-532320B0-B00-U – right-side angled view showing black enclosure, heatsink fins, and bottom power terminals
  • Parker AC890CS Common Supply Module – left-side flat view showing rear panel label (partially visible) and mounting bracket

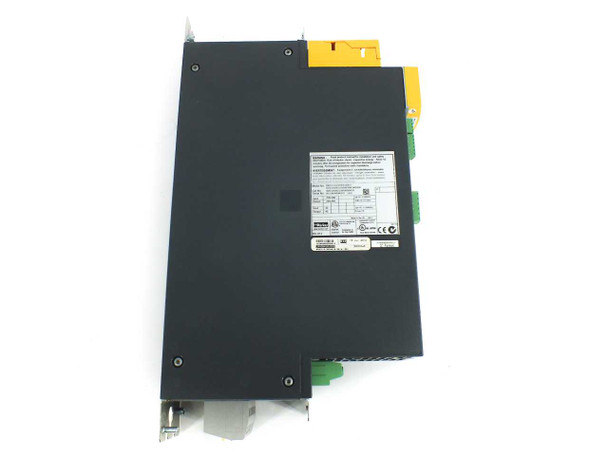

  • Parker AC890 890CS-532320B0-B00-U – right-side flat view showing full rating plate label with model, input/output specs, and certifications
  • Parker AC890CS module – bottom-rear angled view showing large heatsink fins, yellow operator panel housing, and green terminal connectors
  • Parker AC890 890CS-532320B0-B00-U – bottom corner close-up showing power terminal block with L1/L2/L3 supply and DC bus terminals
  • Parker AC890CS – bottom terminal close-up showing BRAKE (DB+/DB-), SUPPLY (L1/L2/L3), and BUS (DC+/DC-) labeled terminal connections
  • Parker AC890 890CS-532320B0-B00-U – side-bottom angled view showing mounting rail bracket and heatsink base
  • Parker AC890CS rating plate close-up – model 890CS-532320B0-B00-U, Cat No 890CS/5/0032B/B/00/N/EN, 208-500V input, 32A/40A, Made in UK 2014

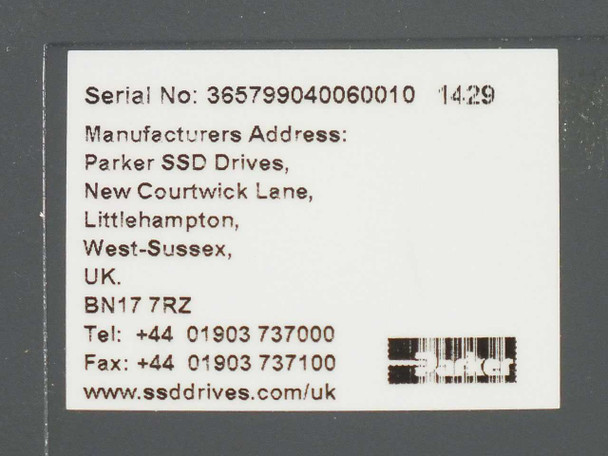

  • Parker AC890CS serial number label – serial 365799040060010, manufactured by Parker SSD Drives, Littlehampton, West Sussex, UK
  • Parker AC890 operator panel label close-up – Model 6511-RS232-00-G, BS:006, FW:1V1, serial 301521710000011
$850.00
Was: $1,700.00
Current Stock: 1

Sold Out

Description

Parker AC890 890CS-532320B0-B00-U Common Supply Module 208-500V 3Ph 32A

AC-to-DC power supply module for Parker AC890 drive systems. Converts three-phase 208–500V AC input to 265–665V DC output, supporting up to 1500 HP system capacity with integrated dynamic braking.

Specifications & What's Included

  • Input: 208–500V AC, 3-phase, 50/60Hz, 32A
  • Output: 265–665V DC (±10%), 40A
  • Built-in dynamic braking unit
  • Includes operator display panel (Model 6511-RS232-00-G) with diagnostics and RJ45 communication
  • UL Listed, CE, ETL, CSA certified
  • Manufactured July 2014, United Kingdom

Applications

Used as the DC bus supply in Parker AC890 modular drive systems for industrial motor control and conversion applications. Supplies power to compatible AC890CD drive modules in common-bus configurations. Typical use in manufacturing, material handling, and heavy-duty industrial automation requiring variable frequency drive infrastructure.

Condition: Used
This Parker AC890 890CS-532320B0-B00-U Common Supply Module has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The enclosure shows light surface wear consistent with industrial use, and all terminal blocks, connectors, and the operator display panel are present and intact. The rating plate, serial number label, and operator panel label are all clearly legible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Parker
Model:
890CS-532320B0-B00-U
MPN:
890CS-532320B0-B00-U
Secondary Model:
AC890CS
Cat No:
890CS/5/0032B/B/00/N/EN
Type:
AC Common Supply Module / DC Bus Power Supply
SKU:
52233
Voltage Rating (Input):
208-500V AC, 3-Phase, 50/60Hz
Voltage Rating (Output):
265-665V DC (±10%)
Current Rating (Input):
32A, 3-Phase AC, 50/60Hz
Current Rating (Output):
40A DC
Phase:
Three Phase
Frequency:
50/60Hz
Power Rating:
Up to 1500 HP system capacity
Dynamic Braking:
Built-in dynamic braking unit
Operator Interface:
Operator display panel with diagnostics (Model 6511-RS232-00-G)
Operator Panel Model:
6511-RS232-00-G
Operator Panel Firmware:
FW: 1V1
Communication Interface:
RJ45 (MAC/Remote port visible on front)
DC Bus Terminals:
DC+ / DC- bus power output terminals
Braking Terminals:
DB+ / DB- dynamic braking terminals
Supply Terminals:
L1, L2, L3 AC supply input terminals
Form Factor:
Modular / Panel Mount
Dimensions:
17" x 10" x 3"
Manufacture Date:
10 Jul 2014
Country/Region of Manufacture:
United Kingdom
Certifications:
UL Listed, CE, ETL, CSA 22.2 No.14, Intertek
Compatible With:
Parker AC890CD drive modules (common bus system)
Series:
Parker AC890
Seller Notes:
Includes operator display panel (6511-RS232-00-G). Unit only — no additional accessories.
Condition:
Used – Pulled from Working Environment
Condition Notes:
Parker AC890 890CS-532320B0-B00-U Common Supply Module. Inspected and in good condition; pulled from a working environment. All terminals and operator panel present and intact. Please view photos and contact us with questions.
