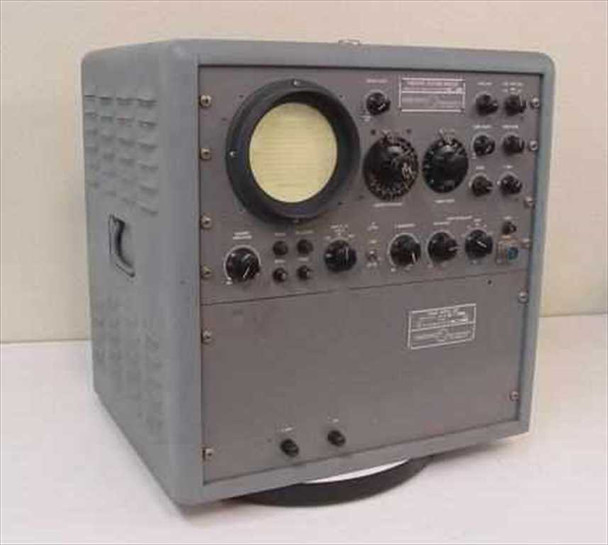

The Panoramic SPA-3/25 is a vintage vacuum-tube sweep spectrum analyzer manufactured by Panoramic Radio Products, Inc. of Mt. Vernon, New York. It covers a frequency range of 200 CPS to 25 MC (25 MHz) and displays the spectrum on a round CRT with a calibrated graticule. The unit is housed in a self-contained portable gray cabinet and includes its matching PS-19 Power Supply Unit, which provides the necessary operating voltages from a 115V AC line.

Specifications & What's Included

• Model: Panoramic SPA-3/25
• Manufacturer: Panoramic Radio Products, Inc., Mt. Vernon, N.Y.
• Frequency Range: 200 CPS to 25 MC (25 MHz)

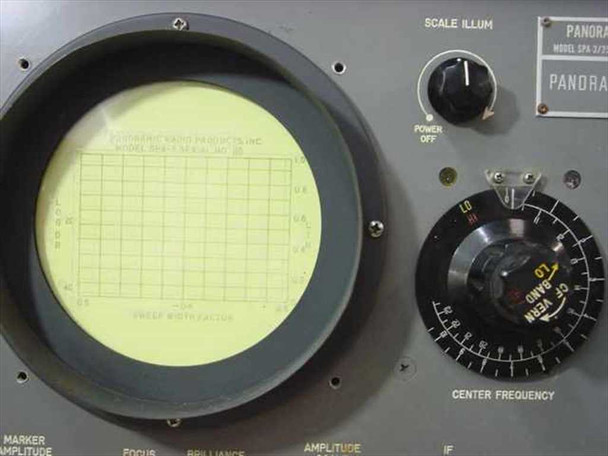

• Display: Round CRT with calibrated graticule (Scale Illum control)
• Amplitude Scale: LOG / LIN / PWR selectable
• IF Attenuation: 0 dB / 20 dB switch
• IF Bandwidth: Continuously variable (Min to Max front-panel knob)
• Input Attenuator – Continuous: 0 dB to Max (front-panel knob)
• Input Attenuator – Step: 0 / 20 / 40 / 60 / 80 dB
• Sweep Width: Continuously variable (front-panel control)
• Sync Amp and Cal-Sync Selector: CAL / LINE / EXT
• Video Filter: switchable (Off and on)
• Sweep Rate: variable front-panel knob
• A BAL and S BAL controls on front panel
• Marker Amplitude control (OFF to full)
• CRT controls: Focus, Brilliance, H POS, V POS
• Center Frequency tuning dial on front panel

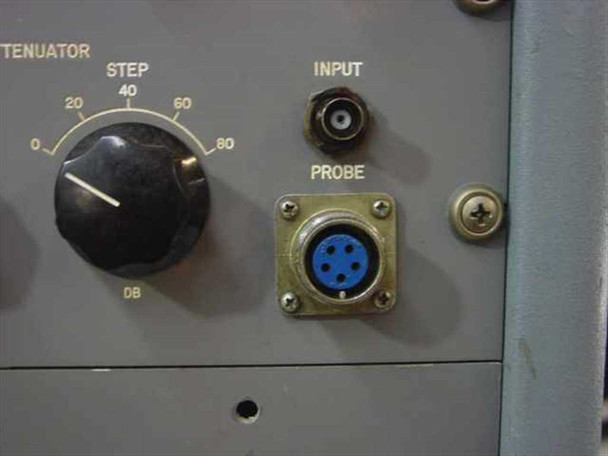

• RF Input connector: BNC
• Probe connector: 5-pin circular military-style (blue)

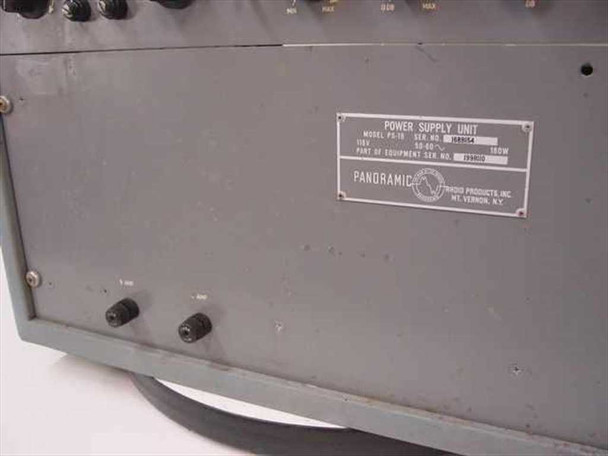

• Power Supply Unit: Panoramic PS-19
• Input Voltage: 115V AC
• Power Consumption: 180W

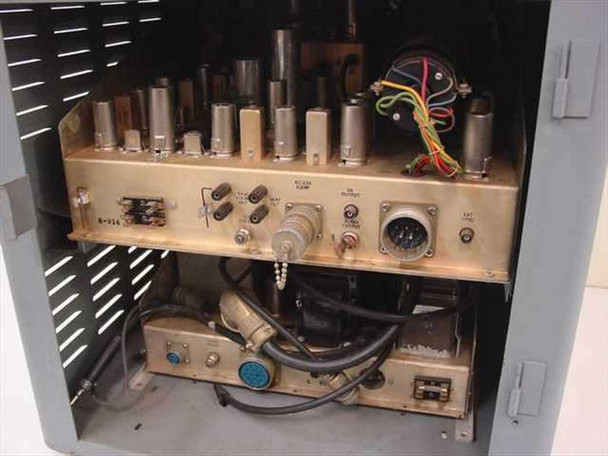

• Technology: Vacuum tube (thermionic valve) chassis
• Form Factor: Benchtop/portable self-contained cabinet
• Includes: SPA-3/25 analyzer unit and PS-19 Power Supply Unit
• Does not include: manual, probe accessories, or external cables
