Panamax M7500-PRO Home Theater Power Management 120V 15A 11 Outlets AVM
Power conditioner and management unit designed for home theater systems. Provides voltage regulation, balanced power distribution, ground isolation, and signal protection across 11 outlets with automatic voltage monitoring (AVM).
Specifications & What's Included
- 120V AC, 60Hz, 15A total capacity
- 11 outlets: 2 always-on, 6 switched, 2 high-current, 1 front convenience
- Four banks with individual circuit control; 15A rear circuit breaker
- Voltage regulation, balanced power, ground isolation, and AVM protection
- 4x F-connector coax protection; RJ-style phone/LAN ports; DB9 serial and USB interfaces
- Two illuminated analog meters with auto-dimming; DC trigger inputs/outputs
- 17" W × 12.75" D × 3.5" H; rack mountable with included brackets
Applications
Home theater power management units condition power supply to audio/video equipment, reducing noise and voltage fluctuation. These systems were standard in mid-to-high-end home theater installations, supporting amplifiers, receivers, satellite boxes, cable boxes, and display components. The M7500-PRO handles integration of multiple signal types and provides synchronized power sequencing through switched banks and trigger control.
This Panamax M7500-PRO Home Theater Power Management unit powers on and the front panel illuminates, but the rear outlet banks cannot be activated — pressing the bank buttons does not switch on the banks and no power is present at the rear outlets. The ground isolation function and the front-panel convenience outlet do operate. The unit is being sold AS-IS for parts or repair and is not guaranteed functional. Cosmetically the chassis is in good shape with light surface wear consistent with prior installation. Rack mounting brackets are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Panamax |
Model: |
M7500-PRO |
MPN: |
M7500-PRO |
Type: |
Home Theater Power Management / Power Conditioner |
SKU: |
52999 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is. Powers on; rear outlet banks non-functional. Rack brackets included. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Desktop / Rack Mountable |
Line Voltage: |
120V AC, 60Hz |
Total Current Capacity: |
15A |
Number of Outlets: |
11 |
Outlet Configuration: |
2 Always On, 6 Switched, 2 High Current, 1 Front Convenience |
Bank Configuration: |

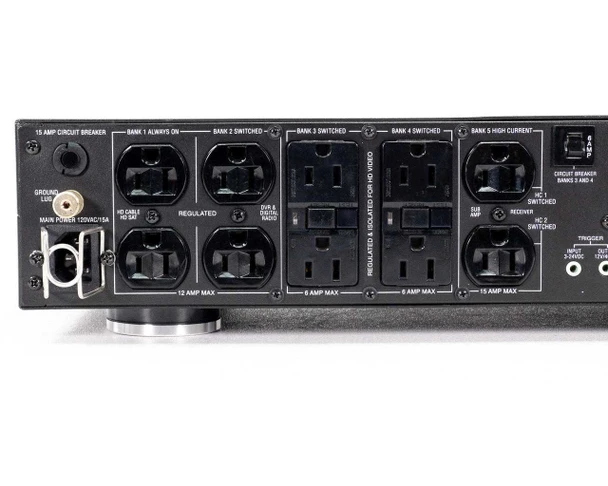

Bank 1: Always On (12A max); Banks 2–4: Switched; Bank 5: High Current (15A max) |
Circuit Breaker: |
15A circuit breaker on rear panel |
Protection Type: |
Voltage Regulation, Balanced Power, Ground Isolation, AVM |
Coax Protection: |
4x F-connector (HD Satellite x2, CATV/ANT x2) |
Signal Protection: |
Phone/LAN protection ports (RJ-style) |
DC Trigger: |
DC Trigger Input and Output (3.5V/5V) |
Communication Interface: |
DB9 serial port; USB port; IP-ready (optional Ethernet card) |
Automatic Voltage Monitoring: |
Yes (AVM) |
Ground Isolation: |

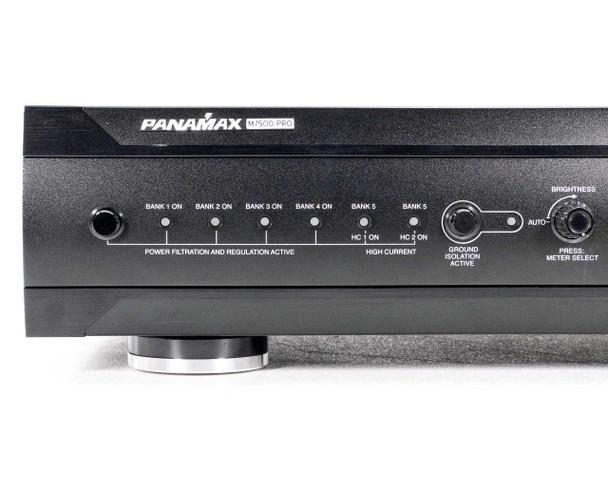

Yes — Ground Isolation Active button on front panel |
Front Panel Meters: |
Two analog-style illuminated meters; auto-dimming with brightness control |
Front Convenience Outlet: |
1x standard outlet on front panel |
Dimensions: |
17" x 12.75" x 3.5" |
Rack Mount: |
Yes — rack mounting brackets included |
Condition Notes: |
This Panamax M7500-PRO Home Theater Power Management unit powers on and the front panel illuminates, but the rear outlet banks cannot be activated — pressing the bank buttons does not switch on the banks and no power is present at the rear outlets. |
