Description
Panamax M4315-PRO 8-Outlet 15A Power Conditioner Surge Protector BlueBOLT
Rackmount power conditioner with 8 individually controllable outlets for 120V AC applications. Provides surge protection, voltage regulation, and RF/EMI filtration for audio/video and telecom equipment.
Specifications & What's Included
- 8 rear panel outlets, individually controllable via network or trigger
- 15A circuit breaker; 330V surge protection rating; 5,000A nominal discharge current
- Linear LiFT filtration with 4 isolated filter banks (76dB–46dB across frequency ranges)
- BlueBOLT TCP/IP network management; RS-232 card included (not installed)
- Connections: CATV/SAT, CV2, LAN CAT5e, Telco, 12V DC trigger input
- 1U rackmount form factor with integrated front rack ears
Applications
Used in home theater systems, AV racks, and broadcast facilities to protect sensitive equipment from power surges and noise. Supports remote outlet control and monitoring via network or serial interface. Typical applications include amplifier racks, audio processors, and telecom equipment requiring filtered, managed power distribution.
Condition: Used

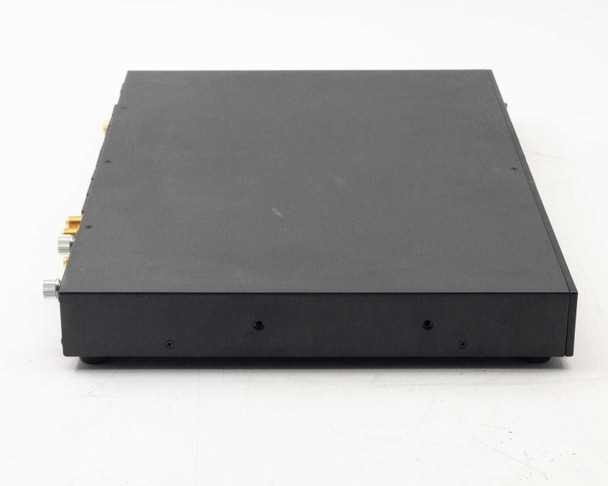

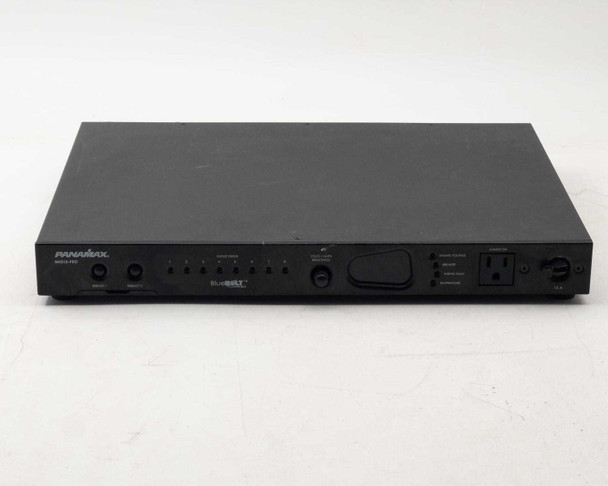

This Panamax M4315-PRO rackmount power conditioner was recently pulled from a home theater installation. It powers on and distributes power across all 8 outlets. We were not able to overload the unit to test the 15-amp circuit breaker, but all normal power distribution functions were confirmed working. The chassis shows light cosmetic wear consistent with installed use — no dents, cracks, or significant damage visible. The front panel LEDs, digital display, and controls all appear intact. The BlueBOLT network card slot is present; the RS-232 card is included but not installed. Please view our photo set and contact us if you have any questions.
This Panamax M4315-PRO rackmount power conditioner was recently pulled from a home theater installation. It powers on and distributes power across all 8 outlets. We were not able to overload the unit to test the 15-amp circuit breaker, but all normal power distribution functions were confirmed working. The chassis shows light cosmetic wear consistent with installed use — no dents, cracks, or significant damage visible. The front panel LEDs, digital display, and controls all appear intact. The BlueBOLT network card slot is present; the RS-232 card is included but not installed. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Panamax |
Model: |
M4315-PRO |
MPN: |
M4315-PRO |
Type: |
Rackmount Power Conditioner / Surge Protector |
SKU: |
52429 |
Number of Outlets: |
8 |
Outlet Configuration: |
8 individually controllable rear panel outlets |
Current Rating: |
15 Amps |
Voltage: |
120V AC, 60Hz |
Voltage Protection Rating: |
330V |
Nominal Discharge Current: |
5,000A |
Surge Protection Type: |
Surge Protective Device, Type 3 |
Network Management: |
BlueBOLT TCP/IP (BlueBOLT compatible) |
Serial Interface: |
RS-232 Card included (not installed) |
Filtration: |
Linear LiFT filtration, 4 isolated filter banks |
Filter Bank Specs 1: |
3 banks: 76dB (5kHz–250kHz), 46dB (250kHz–1MHz) |
Filter Bank Specs 2: |
High current bank: 60dB (5kHz–450kHz), 46dB (450kHz–1MHz) |
Triggering: |
12V DC input triggering |
Protection Features: |
AVM & Protect-or-Disconnect circuitry |

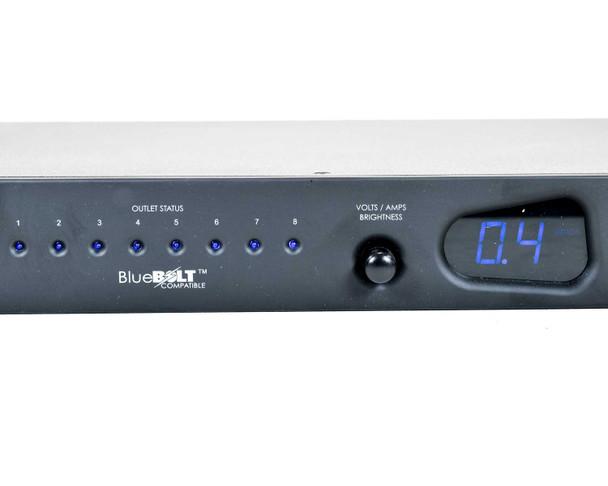

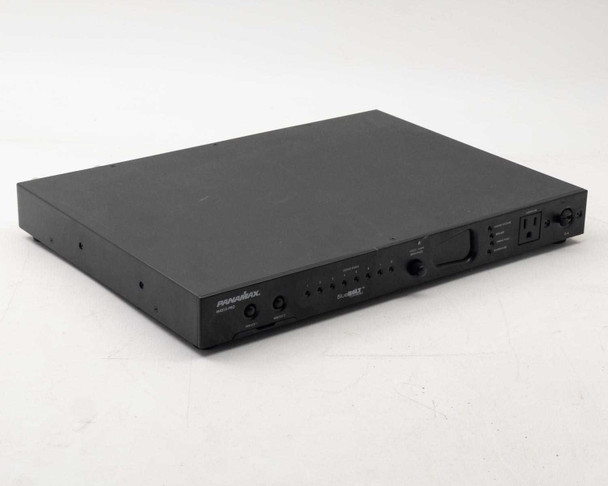

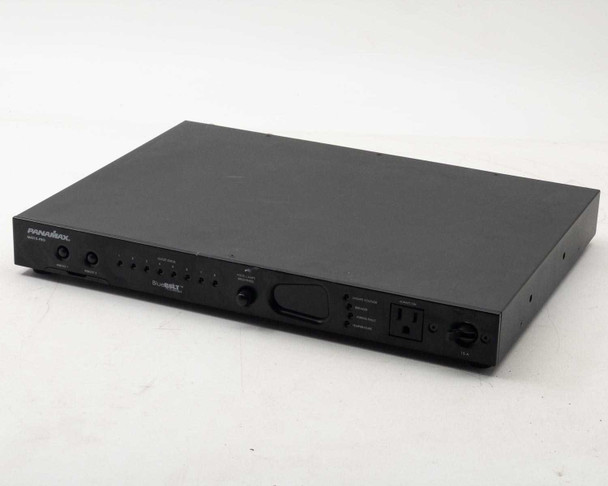

Front Panel Features: |
Circuit breaker, outlet status LEDs, Volts/Amps display |

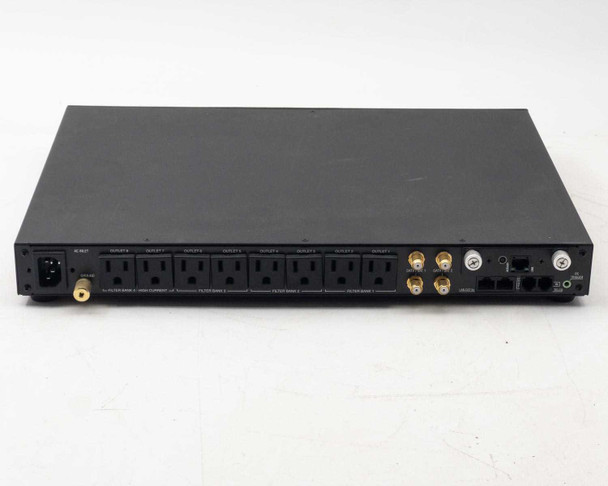

Rear Connections: |
CATV/SAT x2, CV2, LAN CAT5e, RS-232, Telco, DC Trigger |

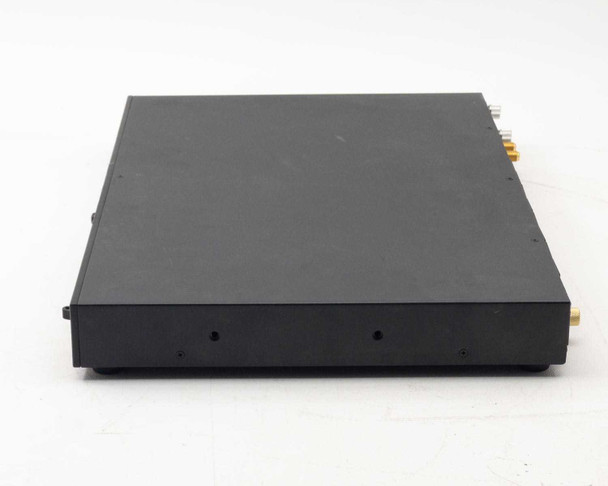

Form Factor: |
1U Rackmount |
Rack Ears: |
Integrated front rack ears |

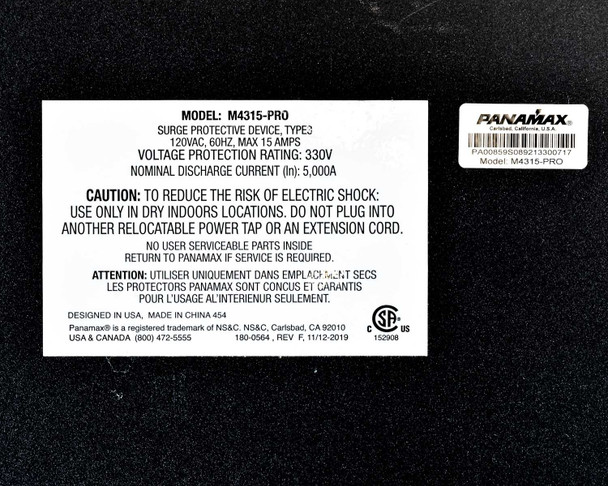

Power Requirements: |
120V AC, 60Hz, Max 15A |
Publication Number: |
180-0564 |
Hardware Revision: |
Rev F |
Seller Notes: |
Includes RS-232 card (not installed). Powers on; all 8 outlets distribute power. |
Country/Region of Manufacture: |
China |
Condition: |
Used – Inspected and Tested |
Condition Notes: |
Panamax M4315-PRO power conditioner pulled from a home theater system. Powers on; all 8 outlets distribute power. 15A circuit breaker not load-tested. RS-232 card included, not installed. Light cosmetic wear. |
