Description
PADS Development Labs 2000082-100 Series 100 Voice Terminal Rackmount 2U
Programmable audio distribution voice terminal designed for aerospace telecommunications systems. 19" rackmount, 2U form factor with dual-voltage AC power support (115V/220V).
Specifications & What's Included
- Model: 2000082-100 Series 100
- Dimensions: 19" × 3.5" height × 13" depth
- Power: 115VAC (1/4A) or 220VAC (1/8A), 47–63Hz

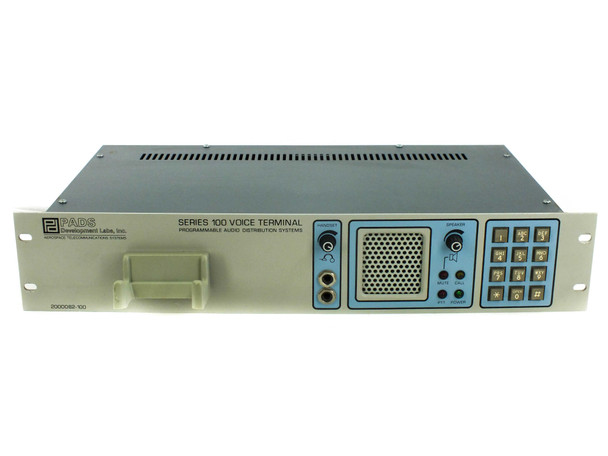

- Front Panel: 12-key keypad, speaker, handset jack, MUTE/CALL/PTT/POWER indicators

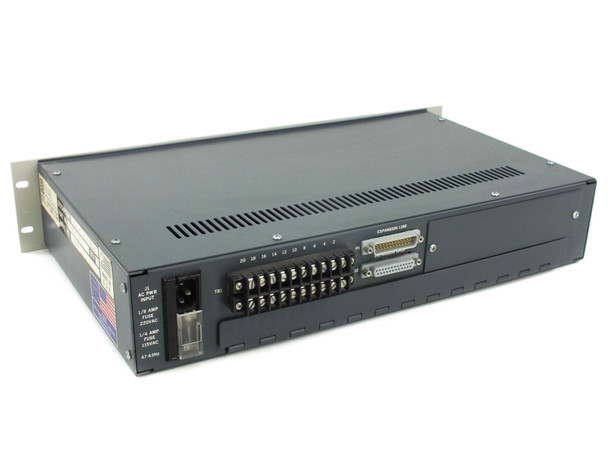

- Connectors: DB25 Expansion Line (P1), DB25 Expansion Drop (J2), 20-position terminal block (TB1)
- Included: Telephone handset with curly cord and dual-banana plug
Applications
Voice terminals of this type were used in aerospace ground support and telecommunications infrastructure for audio distribution and call routing. The programmable design supported integration with larger telecommunications systems requiring distribution of voice signals across multiple lines. Typical installations included mission control facilities, ground stations, and aerospace support operations requiring reliable audio switching and distribution capabilities.
This PADS Development Labs 2000082-100 Series 100 Voice Terminal has been inspected and is in good used condition. It was pulled from a working environment. The unit powers on and produces audio through both the built-in speaker and the telephone handset — we were not able to test it beyond that. The telephone handset with coiled cord and dual-banana plug connector is included. The unit shows normal wear consistent with prior rack-mounted service use; cosmetically it presents well with no significant damage visible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
PADS Development Labs |
Model: |
2000082-100 |
MPN: |
2000082-100 |
Type: |
Programmable Audio Distribution Voice Terminal |
SKU: |
45514 |
Series: |
Series 100 |
Form Factor: |
Rack Mount, 2U, 19" |
Dimensions: |
19" x 13" x 3.5" |
Power Requirements: |
115VAC (1/4A fuse) / 220VAC (1/8A fuse), 47-63Hz |

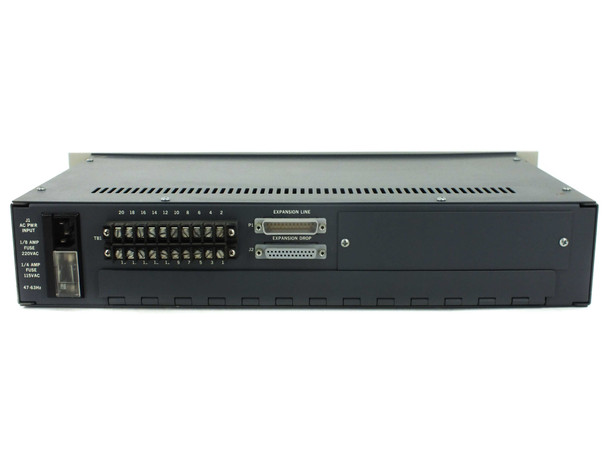

AC Power Input Connector: |
J1 AC PWR INPUT |
Interface - Expansion Line: |
DB25 Expansion Line connector (P1) |
Interface - Expansion Drop: |
DB25 Expansion Drop connector (J2) |
Terminal Block: |
TB1 screw terminal block, 20-position |
Front Panel Features: |
Speaker, Handset jack, Keypad (12-key), MUTE, CALL, PTT, POWER indicators |
Included Accessories: |
Telephone handset with curly cord and dual-banana plug |
Application: |
Aerospace Telecommunications Systems |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Torrance, CA |
Condition: |
Used – Pulled from Working Environment; powers on, produces audio |
Seller Notes: |
Includes telephone handset. Powers on and produces audio via speaker and handset. |
Condition Notes: |
PADS Development Labs 2000082-100 Series 100 Voice Terminal, used, pulled from working environment. Powers on and produces audio via speaker and handset. Not tested beyond that. Includes handset. Good cosmetic condition. |
