Packard bell 1

Packard Bell G-Power GP-6150PM 150W ATX Desktop PC Power Supply 190307

(No reviews yet) Write a Review
SKU:
18918
MPN:
190307
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout

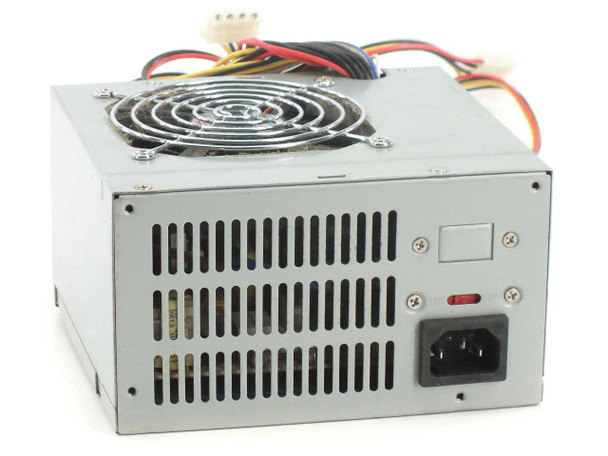

  • G-Power GP-6150PM 150W ATX power supply — rear panel view showing IEC C14 AC inlet, power switch, and ventilation grille
  • G-Power GP-6150PM 150W ATX power supply — angled view showing output cable harness with multiple 4-pin Molex connectors
  • G-Power GP-6150PM 150W ATX power supply — close-up of output connectors including 4-pin Molex and 4-pin Berg floppy connectors

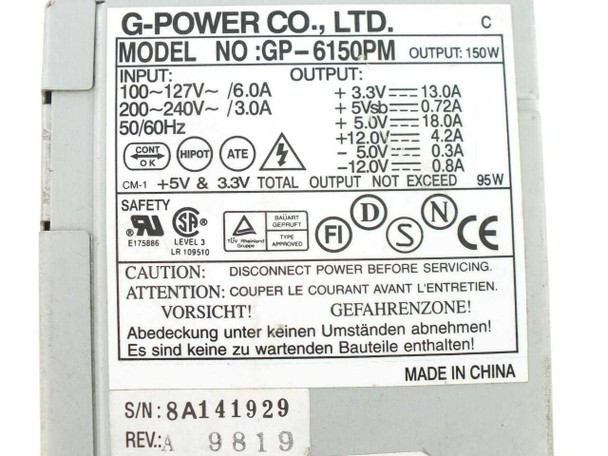

  • G-Power GP-6150PM 150W ATX power supply — rating label showing model GP-6150PM, 150W output, full voltage/amperage specs, S/N 8A141929, Rev A
$30.00
Was: $60.00
Current Stock: 1

Sold Out

Description

Packard Bell G-Power GP-6150PM 150W ATX Desktop PC Power Supply 190307

ATX desktop power supply rated for 150W maximum output. Provides regulated power to standard ATX form factor computers via multiple voltage rails and connectors.

Specifications & What's Included

  • Model: GP-6150PM (MPN 190307)
  • Output: 150W maximum
  • Voltage Rails: +3.3V (13.0A), +5V (18.0A), +12V (4.2A), +5Vsb (0.72A), -5V (0.3A), -12V (0.8A)
  • Input: 100-127V / 200-240V AC, 50/60Hz
  • Connectors: 20-pin ATX main, 4-pin Molex, 4-pin Berg (floppy)
  • Cooling: Single 80mm case fan
  • AC Inlet: IEC C14

Applications

This ATX power supply was designed for Packard Bell desktop computers and compatible standard ATX form factor cases from the late 1990s to early 2000s. The 150W output and voltage specifications support older Pentium-era systems with modest component loads. It provides the main 20-pin connector and auxiliary power delivery typical of that generation.

Condition: Used
This Packard Bell G-Power GP-6150PM 150W ATX desktop power supply has been tested and is in good working order. The unit is in good used condition with normal cosmetic wear consistent with prior installation in a desktop PC. The output cable harness, Molex connectors, and Berg floppy connector all appear intact and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
G-Power Co., Ltd.
Model:
GP-6150PM
MPN:
190307
Type:
ATX Desktop PC Power Supply
SKU:
18918
Maximum Output Power:
150W
Form Factor:
ATX
Input Voltage:
100-127V / 200-240V AC
Input Current:
6.0A @ 100-127V; 3.0A @ 200-240V
Input Frequency:
50/60Hz
Output +3.3V:
13.0A
Output +5Vsb:
0.72A
Output +5V:
18.0A
Output +12V:
4.2A
Output -5V:
0.3A
Output -12V:
0.8A
Combined +5V & +3.3V Max:
95W total
Connectors:
20-pin ATX main, 4-pin Molex, 4-pin Berg (floppy)
Cooling:
Single 80mm case fan
AC Inlet:
IEC C14
Modular:
No
Compatible With:
Packard Bell desktop computers; standard ATX cases
Country/Region of Manufacture:
China
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only; no box. Tested and in working order.
Condition Notes:
Packard Bell G-Power GP-6150PM 150W ATX power supply. Tested and in good working order. Good used condition with normal cosmetic wear. Connectors intact. Please view photos and contact us with any questions.
