Opti Temp OTC-3.0AL Vacuum Chamber w/ NI TPC-2230 Chiller 208-230V 3Ph R404a

Opti Temp OTC-3.0AL Vacuum Chamber w/ NI TPC-2230 Chiller 208-230V 3Ph R404a

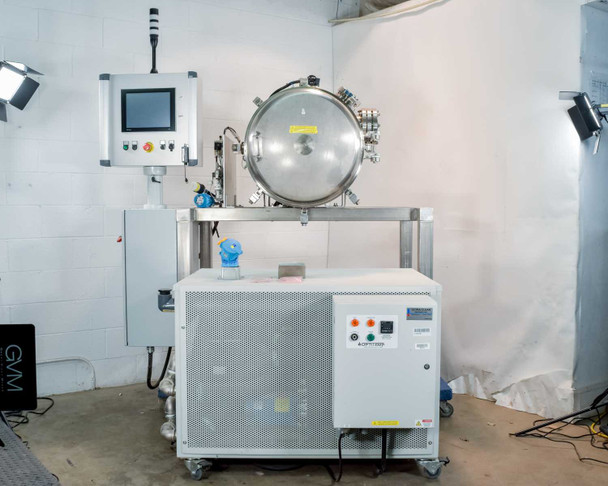

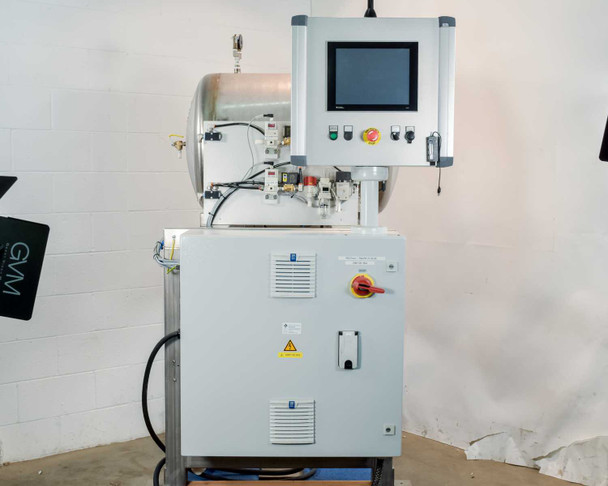

The Opti Temp OTC-3.0AL is a complete, computer-controlled environmental vacuum chamber system combining a horizontal cylindrical pressure vessel, a recirculating heated/chilled water circuit with four sliding stainless steel tray drawers, and an integrated 3-ton refrigeration chiller — all managed through a National Instruments TPC-2230 touchscreen controller. The chamber is certified to MAWP INT 50 PSI / EXT 15 PSI by Johnstone Company, Inc. and runs on 208-230V three-phase power at 30.4A full load using R404a refrigerant.

Specifications & What's Included

• Make / Model: Opti Temp OTC-3.0AL

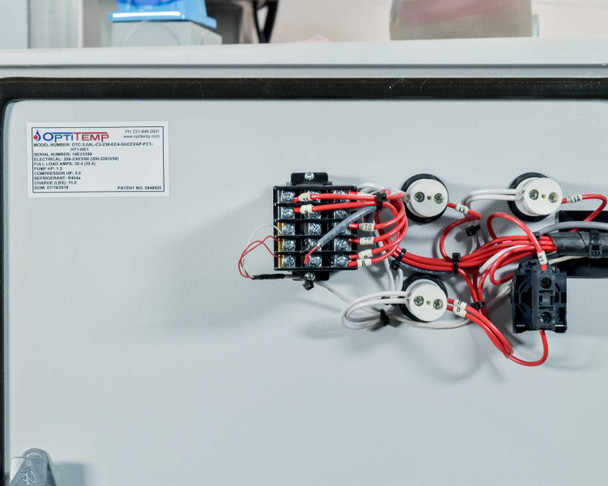

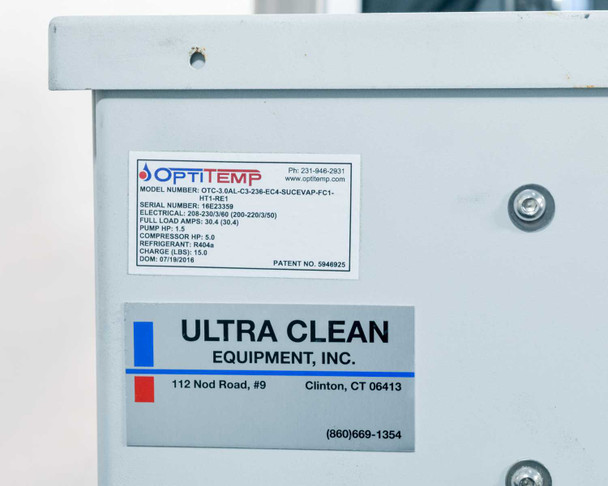

• Full MPN: OTC-3.0AL-C3-236-EC4-SUCEVAP-FC1-HT1-RE1
• Electrical: 208-230V / 3-Phase / 60Hz
• Full Load Amps: 30.4A

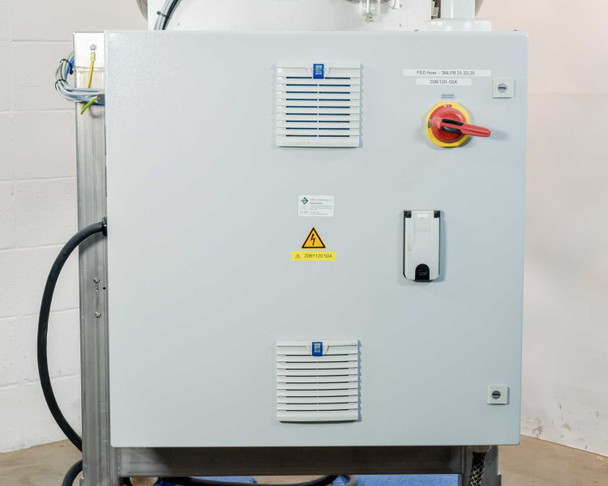

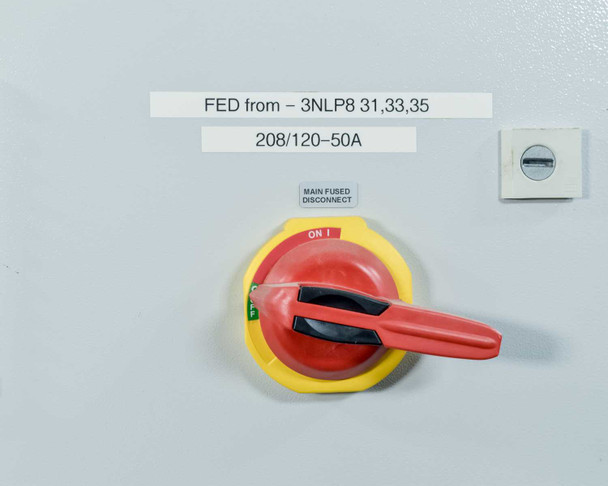

• Main Disconnect: 208/120-50A main fused disconnect (FED from 3NLP8 31, 33, 35)

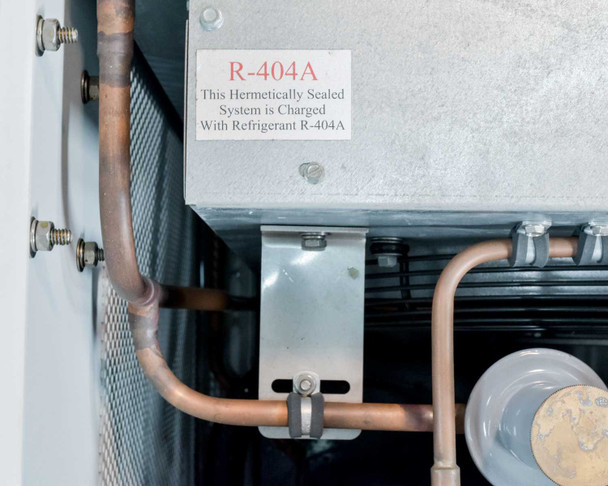

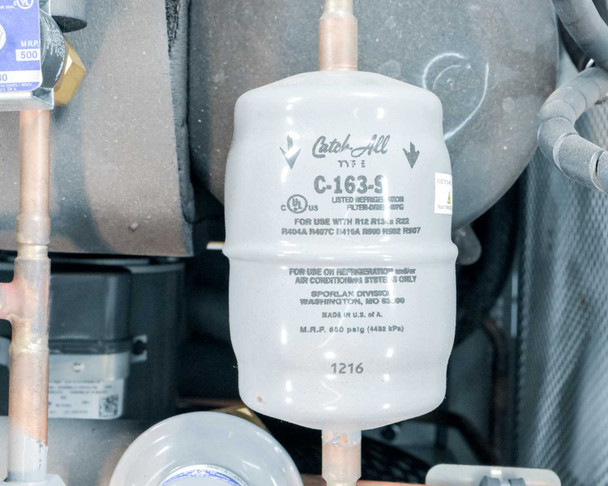

• Refrigerant: R404a
• Pump HP: 1.5
• Compressor HP: 1.5
• Temperature Range: 0°C to 55°C (with 3-ton chiller loop)
• Maximum Chamber Temperature: 50°C (122°F) per front panel
• Temperature Display: °C or °F selectable

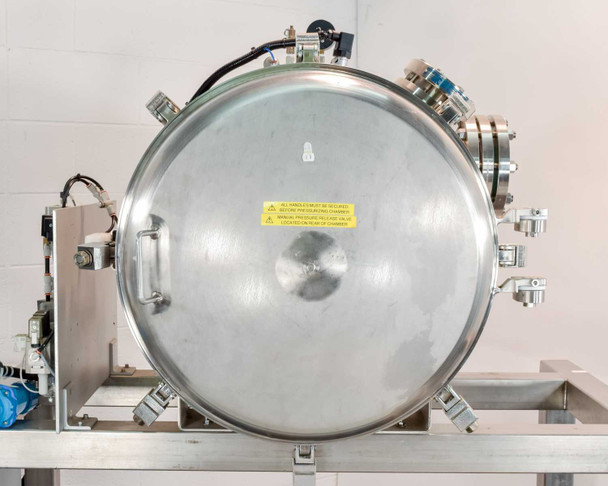

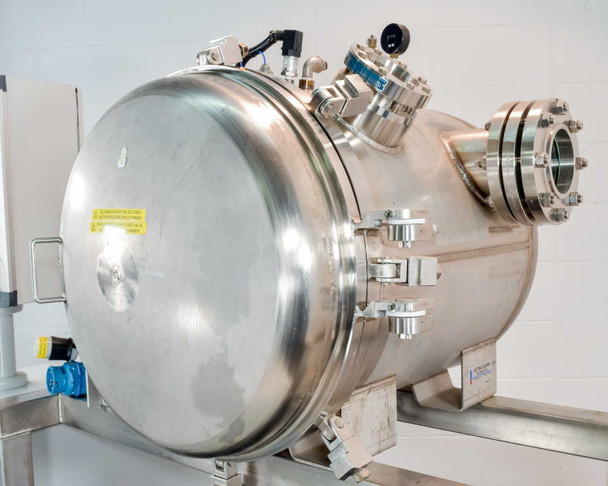

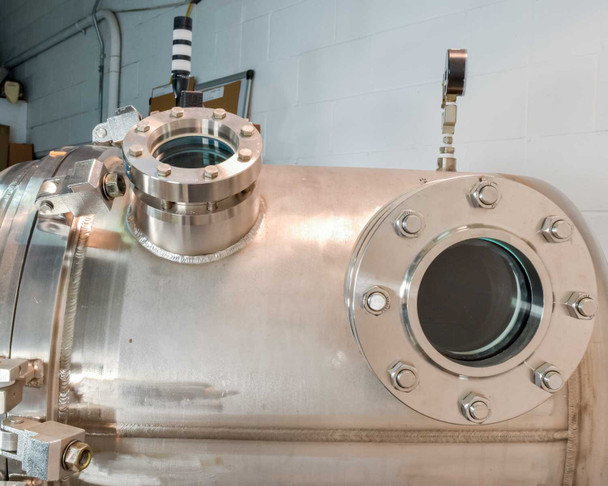

• Vacuum Chamber MAWP: INT 50 PSI / EXT 15 PSI (shell)

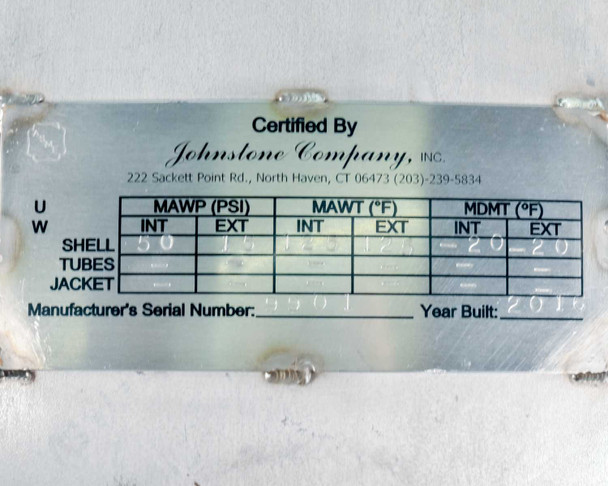

• Vessel Certification: Certified by Johnstone Company, Inc., North Haven, CT — Year Built 2016
• Patent No.: 5946925

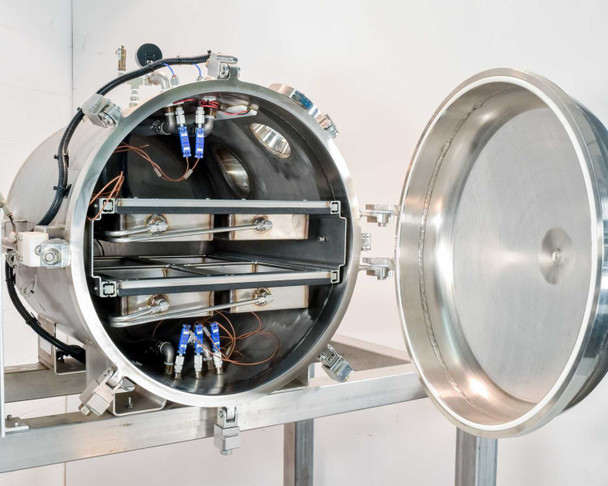

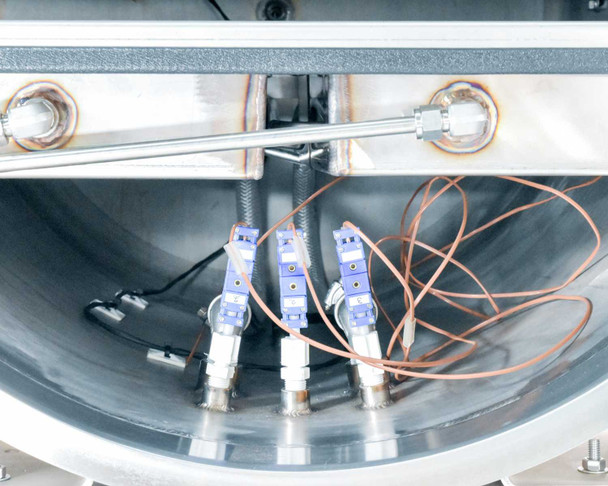

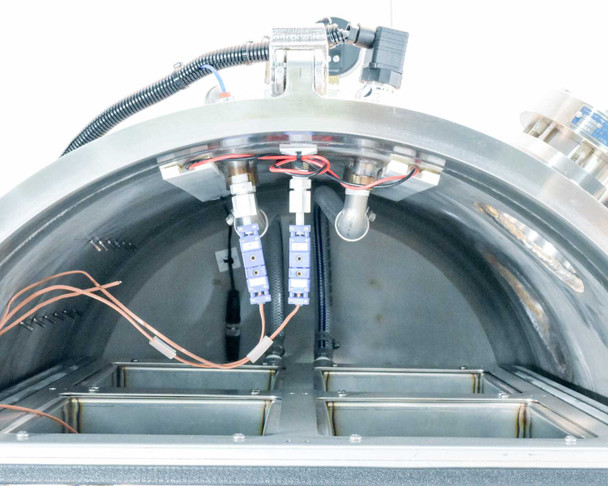

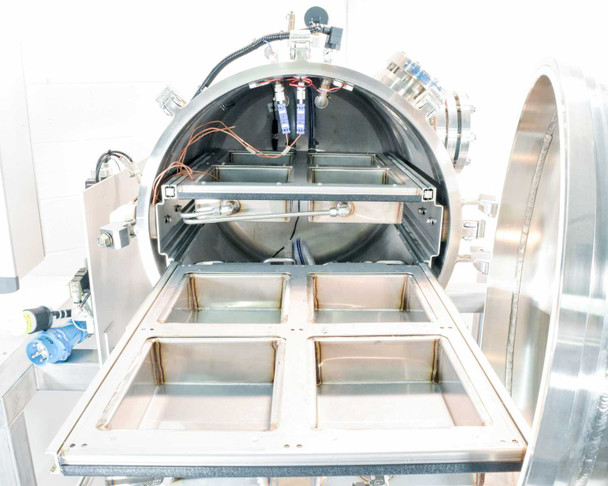

• Chamber Interior: Four stainless steel sample tray drawers on slide rails with internal thermocouple fittings and heating/cooling elements

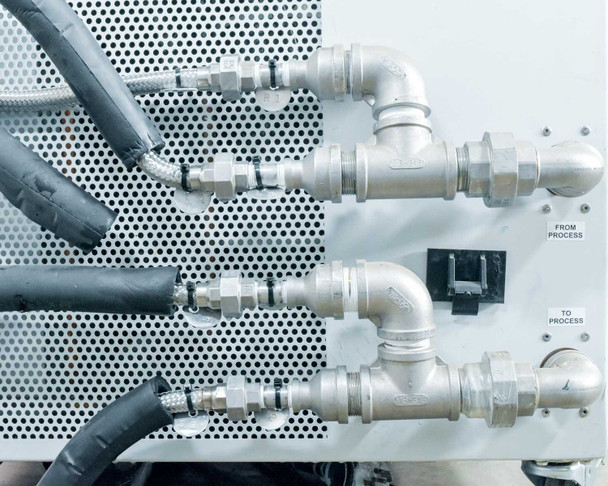

• Process Connections: Stainless steel MNPT process fittings (FROM PROCESS / TO PROCESS labeled)

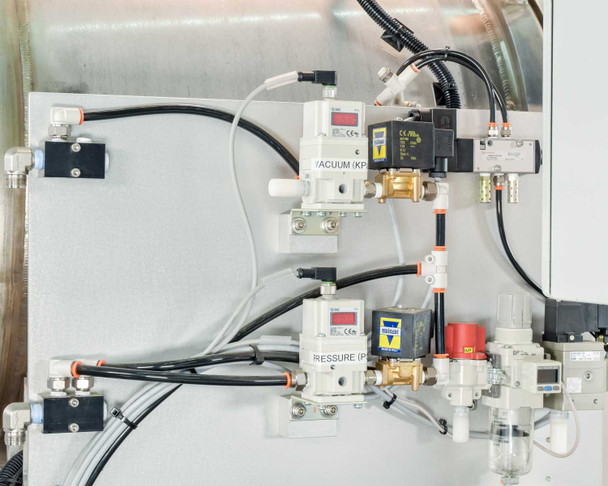

• Pressure/Vacuum Monitoring: SMC digital vacuum transducer (kPa) and SMC digital pressure transducer

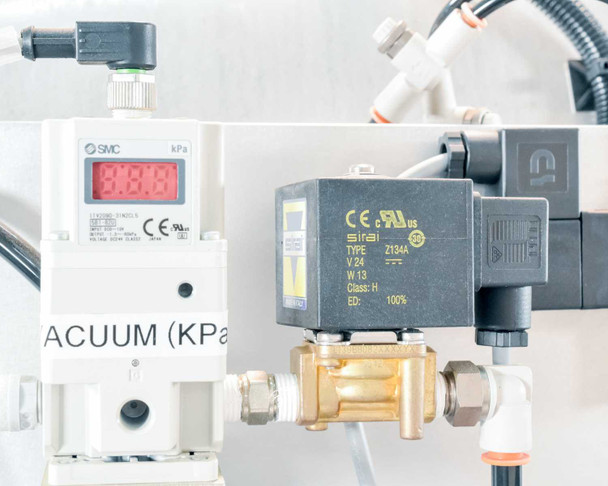

• Solenoid Valves: Sirai Z134A, 24V DC, CE/UL rated
• Control Computer: National Instruments TPC-2230 touchscreen panel PC

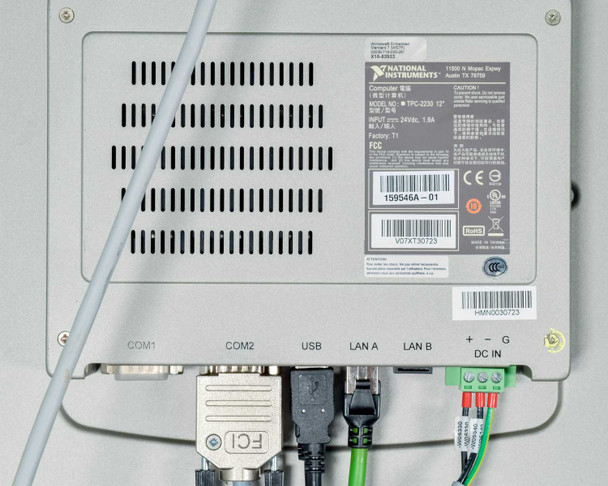

• NI TPC-2230 Interfaces: COM1, COM2, USB, LAN A, LAN B, DC IN
• NI TPC-2230 Power: 24V DC, 1.9A

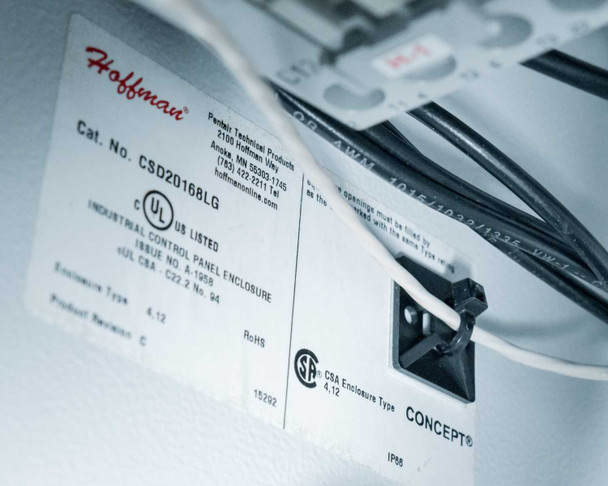

• Control Panel Enclosure: Hoffman CSD20168LG — UL Listed Industrial Control Panel Enclosure, CSA Type 4.12, IP66, RoHS

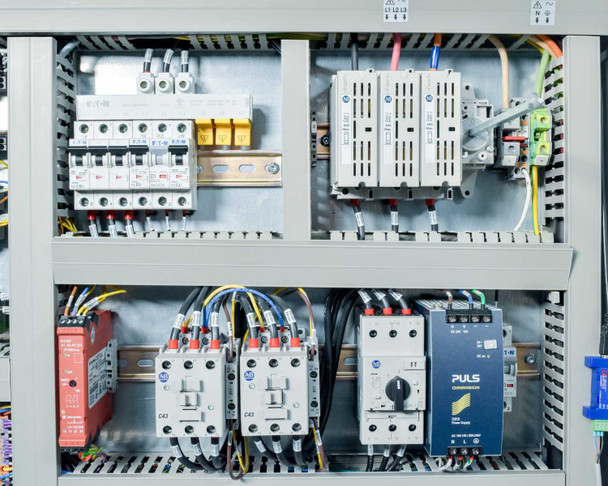

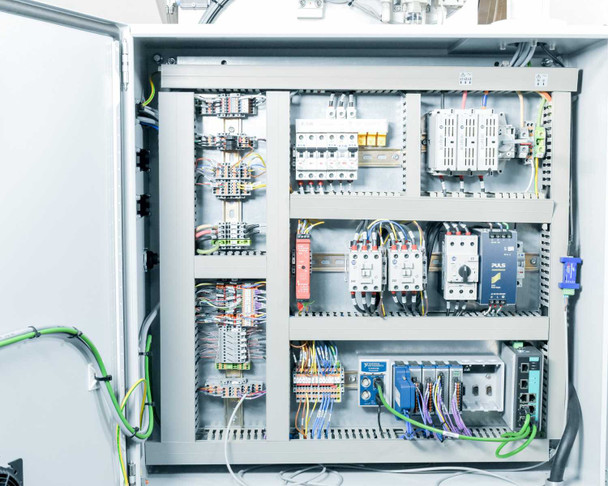

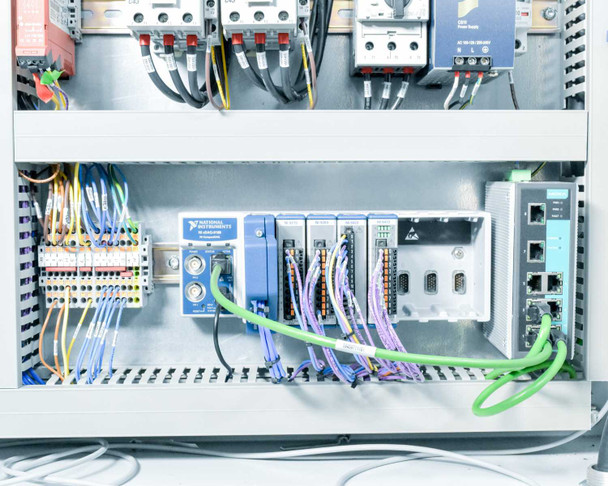

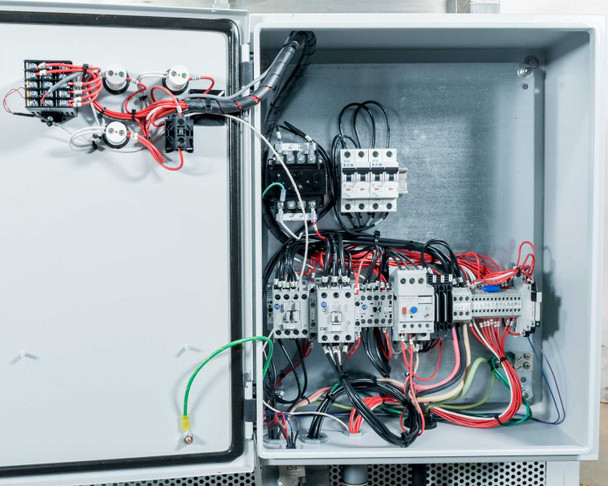

• Electrical Panel Components: Eaton DIN rail circuit breakers, three-phase contactors (C42, C43), PULS DIN rail power supply, National Instruments modular controller chassis with I/O modules, Profinet networking

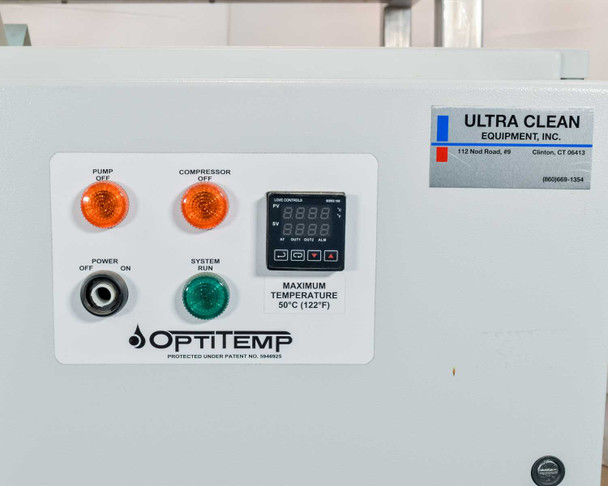

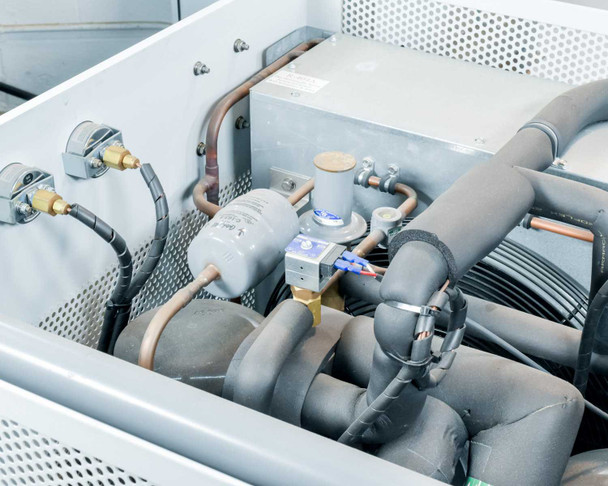

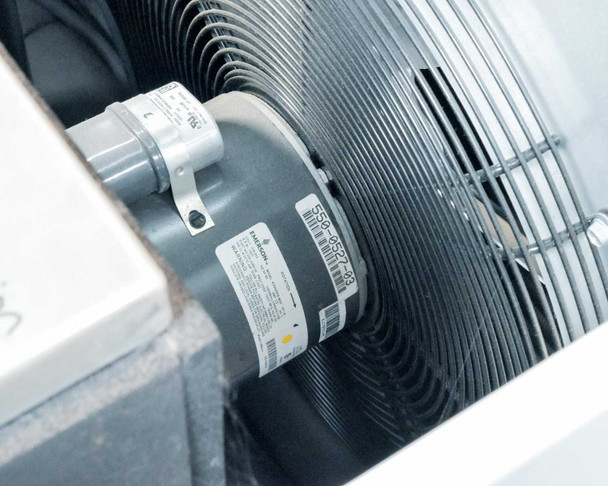

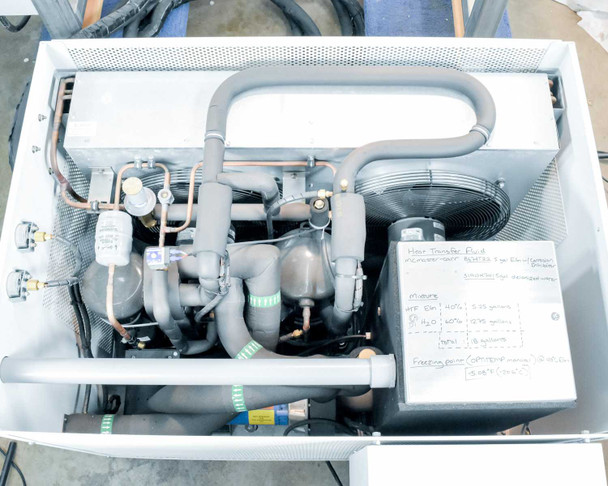

• Chiller Front Panel: Pump Off/On indicator, Compressor Off/On indicator, Power On/Off switch, System Run indicator, digital temperature controller

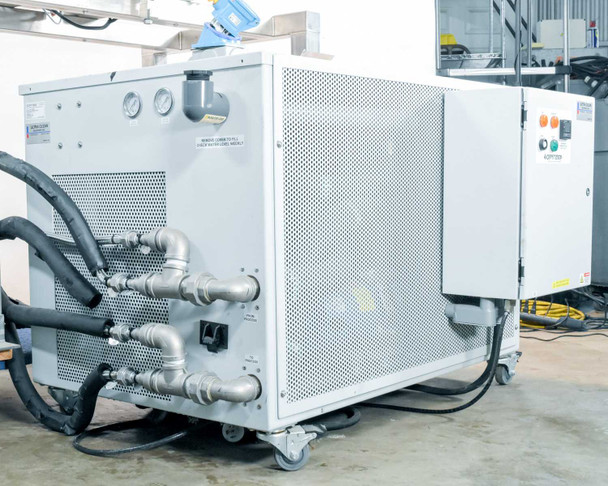

• Mobility: Cart-mounted on casters (chiller unit); vacuum chamber mounted on welded steel frame
• Included: NI TPC-2230 touchscreen controller, Hoffman CSD20168LG electrical enclosure, insulated process hoses, wall outlet adapter
• DOM: 07/19/2016

Applications

The OTC-3.0AL is a thermal-vacuum environmental test system used to subject components, assemblies, or materials to controlled temperature and pressure conditions simultaneously. Systems of this type are used in aerospace and defense component qualification, photonics and optics research, semiconductor process development, and general R&D environments where samples must be thermally cycled or held at a target temperature under vacuum or elevated pressure. The sliding tray drawer design allows samples to be loaded and positioned easily inside the horizontal chamber. The NI TPC-2230 touchscreen interface allows operator control and data logging through the LabVIEW-based software environment common in automated test systems. This type of integrated chiller-chamber system was also used in digital printing, plastics processing, and mobile imaging applications where precise temperature management of a process chamber is required.
