Copeland

Copeland C2AH0750IFC001 Hermetic Condensing Unit 208/230V 3Ph w/ GE Fan Motors

(No reviews yet) Write a Review
SKU:
36641
MPN:
C2AH0750IFC001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
950.00 LBS
Shipping:
Calculated at Checkout
  • Copeland C2AH0750IFC001 hermetic condensing unit full left-side view on pallet showing compressor, fan motors, and horizontal condenser vessel

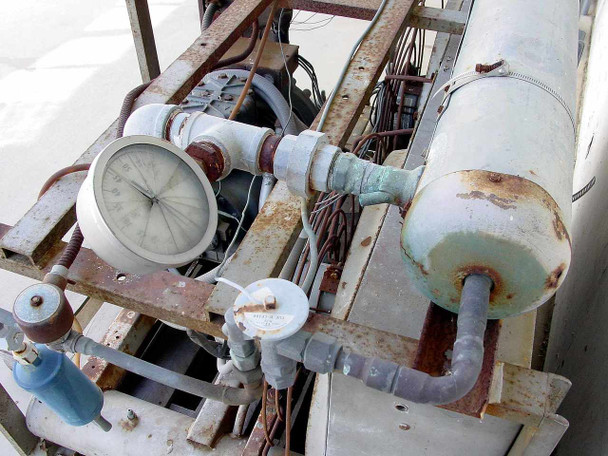

  • Copeland C2AH0750IFC001 condensing unit top-down view showing pressure gauge, refrigerant receiver vessel, and interconnecting piping
  • Copeland C2AH0750IFC001 condensing unit close-up of temperature/pressure gauge reading 0-140 range and refrigerant receiver piping

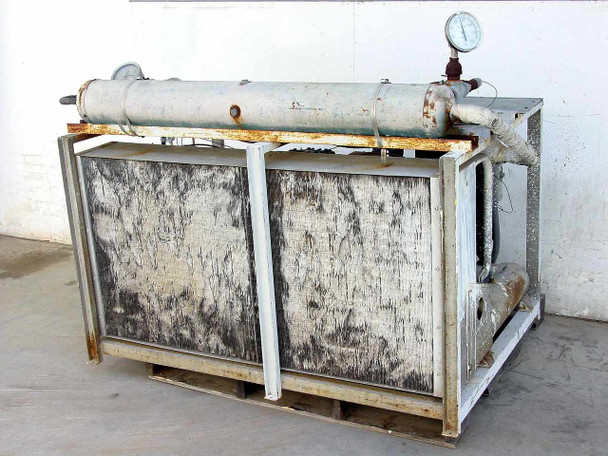

  • Copeland C2AH0750IFC001 condensing unit rear view showing two GE fan blade assemblies and condenser coil panels with heavy oxidation
  • Copeland C2AH0750IFC001 nameplate label showing model number, 208/230V, 3-phase rating information
  • Copeland MRH0760TF0 compressor remanufactured nameplate showing model number, voltage 203/230, serial number, and Compressor Parts & Repair Inc. details
  • Johnson Controls Penn All-Range dual pressure control with low and high pressure cut-out adjusters and push-to-reset button

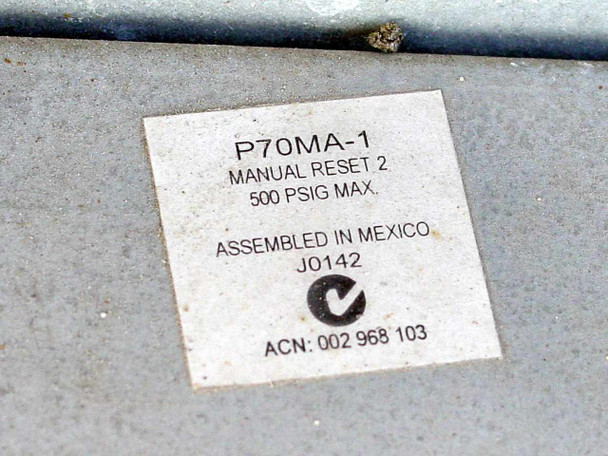

  • Johnson Controls Penn P70MA-1 pressure control label showing Manual Reset 2, 500 PSIG Max, Assembled in Mexico, ACN 002 968 103
  • Penn lubrication protection control with push-to-reset button, showing rust and wear on housing
  • GE fan motor nameplate label showing Model 5KCP39PG C092S, 1/3 HP, 230V, 60 Hz, 1 Phase, 825 RPM, 2.40 Amps, Stock No. 3005
$1,400.00
Was: $2,800.00
Current Stock: 1

Sold Out

Description

Copeland C2AH0750IFC001 Hermetic Condensing Unit 208/230V 3Ph w/ GE Fan Motors

Hermetic condensing unit designed for commercial refrigeration systems. Combines a Copeland compressor with dual GE fan motors, pressure controls, and a horizontal shell-and-tube heat exchanger on an open steel skid frame.

Specifications & What's Included

  • Compressor: Copeland MRH0760TF0
  • Fan Motors: 2x GE 5KCP39PGC092S, 1/3 HP each, 230V 1Ph, 825 RPM, 60 Hz
  • Voltage Rating: 208/230V, 3 Phase
  • Pressure Control: Johnson Controls Penn P70MA-1, 500 PSIG max, manual reset
  • Refrigerant Vessel: Horizontal shell-and-tube heat exchanger with receiver
  • Includes piping assembly and Penn lubrication protection control

Applications

Condensing units of this type are used in commercial refrigeration and HVAC systems for industrial cooling applications. Typically paired with remote evaporators in walk-in coolers, freezers, or process cooling systems. The 3-phase motor configuration and Copeland compressor indicate use in larger-capacity installations. Compatible with standard refrigerant piping assemblies and control systems common to 1980s–2000s commercial equipment.

Condition: For Parts or Not Working
This Copeland C2AH0750IFC001 Hermetic Condensing Unit has been visually inspected but has not been tested, and it is being sold as-is for parts or repair only. The unit shows significant surface rust and oxidation on the steel frame, piping, and condenser coils — consistent with outdoor or long-term storage exposure. The compressor (Copeland MRH0760TF0) and both GE fan motors (5KCP39PGC092S) are present and intact, as are the Johnson Controls Penn pressure controls and refrigerant piping assembly. No functionality is guaranteed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Copeland
Model:
C2AH0750IFC001
MPN:
C2AH0750IFC001
Type:
Hermetic Condensing Unit
SKU:
36641
Condition:
As-Is / For Parts or Not Working
Compressor Model:
Copeland MRH0760TF0
Fan Motor Model:
GE 5KCP39PGC092S (Stock No. 3005)
Fan Motor Quantity:
2
Fan Motor HP:
1/3 HP each
Fan Motor Voltage:
230V
Fan Motor Phase:
1 Phase
Fan Motor RPM:
825 RPM
Fan Motor Hz:
60 Hz
Fan Motor Amps:
2.40 A
Fan Motor Capacitor:
12.50/370
Voltage Rating:
208/230V
Phase:
3 Phase
Pressure Control:
Johnson Controls Penn P70MA-1 All-Range
Pressure Control Max:
500 PSIG Max
Pressure Control Reset:
Manual Reset
Lubrication Protection:
Penn Lubrication Protection Control
Frame:
Open steel skid/frame with pallet base
Refrigerant Vessel:
Horizontal shell-and-tube heat exchanger/receiver
Country/Region of Manufacture:
United States
Seller Notes:
Includes two GE fan motors, Copeland compressor, Penn pressure controls, and refrigerant piping assembly. Sold as-is.
Condition Notes:
Copeland C2AH0750IFC001 Hermetic Condensing Unit inspected but not tested. Sold as-is for parts or repair only. Frame, piping, and coils show heavy rust/oxidation. Compressor MRH0760TF0 and 2x GE fan motors present. No functionality guaranteed.
