Description
ON Semiconductor DF08S Bridge Rectifier 800V 1.5A 1.1V Vf SMD SMA Qty 10
Bridge rectifier for converting AC to DC in power supply circuits. Single-phase full-wave configuration with 800V peak reverse voltage rating and 1.5A forward current capacity.
Specifications & What's Included
- Quantity: 10 units in tape strip
- Package: SMA surface mount (SMD)
- Peak Reverse Voltage: 800V
- Forward Current: 1.5A
- Forward Voltage (max): 1.1V
- Max Surge Current: 50A
- Manufacturer: ON Semiconductor
Applications
Bridge rectifiers of this class are used in AC-to-DC conversion circuits for industrial power supplies, telecom equipment, and control electronics. The 800V rating handles mains-level voltages in industrial and commercial applications. These components are commonly found in switching power supplies, UPS systems, and industrial control boards requiring compact surface-mount rectification stages.
Condition: New

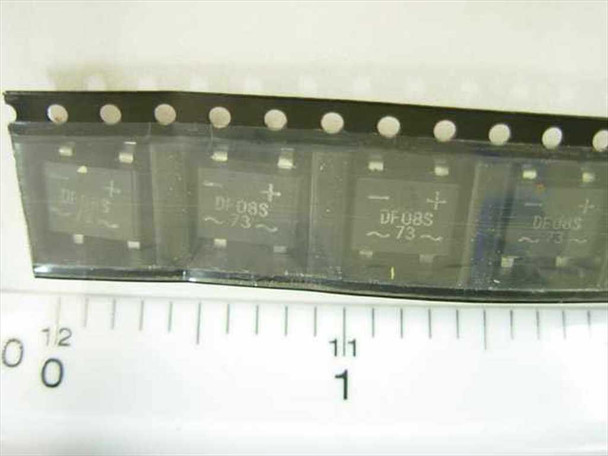

These ON Semiconductor DF08S Bridge Rectifiers are new and unused. They are supplied in tape strips of 10 units as shown in the photos. The original manufacturer packaging may not be included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
These ON Semiconductor DF08S Bridge Rectifiers are new and unused. They are supplied in tape strips of 10 units as shown in the photos. The original manufacturer packaging may not be included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
ON Semiconductor |
Model: |
DF08S |
MPN: |
DF08S |
Type: |
Bridge Rectifier |
SKU: |
35129 |
Quantity: |
10 (sold as a set in tape strip) |
Package / Case: |
SMA (SMD Surface Mount) |
Peak Reverse Voltage (PRV): |
800 V |
Forward Current (If): |
1.5 A |
Forward Voltage (Vf) Max: |
1.1 V |
Max Surge Current (IFSM): |
50 A |
Mount Type: |
Surface Mount (SMD) |
Configuration: |
Single-Phase Full-Wave Bridge |
Country/Region of Manufacture: |
China |
Seller Notes: |
Set of 10 units, supplied in tape strip as photographed |
Condition: |
New |
Condition Notes: |
ON Semiconductor DF08S Bridge Rectifiers are new and unused, supplied in a tape strip of 10 units. Original manufacturer packaging may not be included. Please view photos and contact us with questions. |
