Description
DF04S Bridge Rectifier 400V 1A SMD Glass Passivated Diode Pack of 20
Surface-mount bridge rectifier for single-phase full-wave AC-to-DC conversion. Glass passivated construction rated for 400V peak reverse voltage with 1A average rectified current capacity.
Specifications & What's Included
- Model: DF04S
- Quantity: 20 pieces per strip
- Package: SOP-4 SMD surface mount
- Peak Reverse Voltage: 400V
- Average Rectified Current: 1A
- Non-Repetitive Surge Current: 50A (8.3ms half-sine)
- Body Dimensions: 0.33 x 0.25 x 0.1 inches
- Junction Type: Glass Passivated
Applications
Bridge rectifiers are standard components in low-power DC power supply circuits, converting AC input to DC output. The DF04S is commonly used in consumer electronics, industrial control boards, telecommunications equipment, and general PCB-level rectification where compact SMD packages are required and voltage/current demands remain moderate.
Condition: New

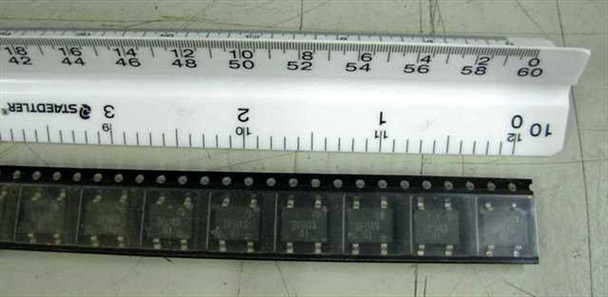

These DF04S SMD bridge rectifiers are new and unused. They may be out of the original manufacturer packaging but have not been used or installed. The components are sold in strips of 20 pieces. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
These DF04S SMD bridge rectifiers are new and unused. They may be out of the original manufacturer packaging but have not been used or installed. The components are sold in strips of 20 pieces. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unbranded |
Model: |
DF04S |
MPN: |
DF04S |
Type: |
Bridge Rectifier |
SKU: |
35126 |
Quantity: |
20 pieces per lot (sold in strip of 20) |
Package / Case: |
SOP-4 / SMD Surface Mount |
Peak Reverse Voltage: |
400V |
Average Rectified Current: |
1A |
Non-Repetitive Surge Current: |
50A (8.3ms half-sine) |
Junction Type: |
Glass Passivated |
Body Dimensions: |
0.33 x 0.25 x 0.1 inches |
Mounting Type: |
Surface Mount (SMD) |
Configuration: |
Single-Phase Full-Wave Bridge |
Condition: |
New – Open Box |
Seller Notes: |
Sold in strips of 20 pieces. New but may be out of original manufacturer box. |
Application: |
Low-power DC power supply rectification |
Condition Notes: |
DF04S SMD bridge rectifiers, pack of 20. New and unused, may be out of original manufacturer box. Sold in strips of 20. Please contact us with any questions. |
