Omron

Omron LY2N-D2 General Purpose Relay 2PDT 10A 24VDC w/ PTF08A Socket Base

(No reviews yet) Write a Review
SKU:
53214
MPN:
LY2N-D2
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

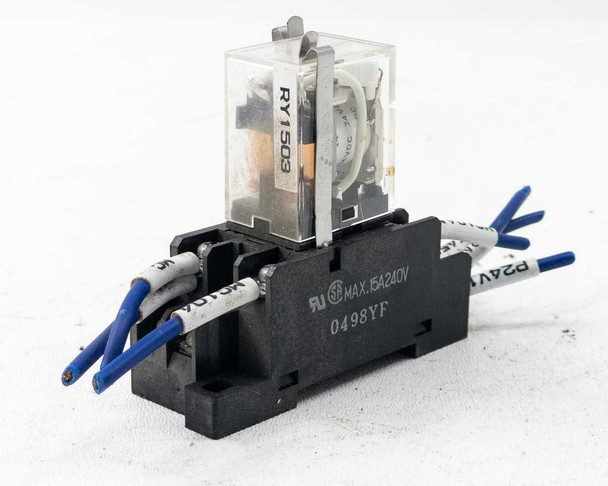

  • Omron LY2N-D2 relay mounted in PTF08A socket base with blue wired leads – front-left angle view
  • Omron LY2N-D2 relay in PTF08A socket base showing transparent case and coil internals – front view
  • Omron LY2N-D2 relay on PTF08A base with wired leads – right-side angle view showing socket body

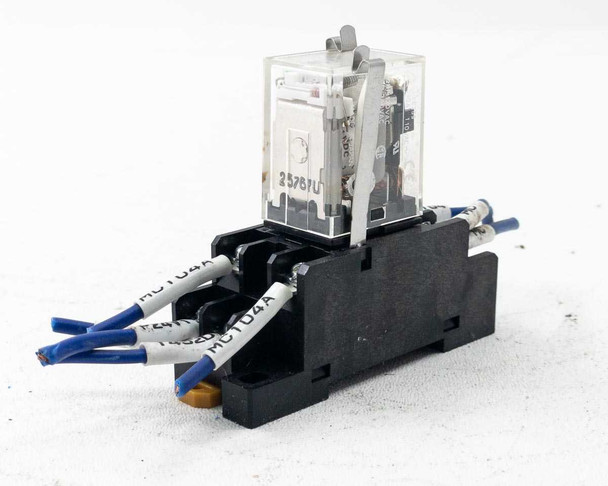

  • Omron LY2N-D2 relay on PTF08A socket base – left-side angle view showing date code 25787U on relay

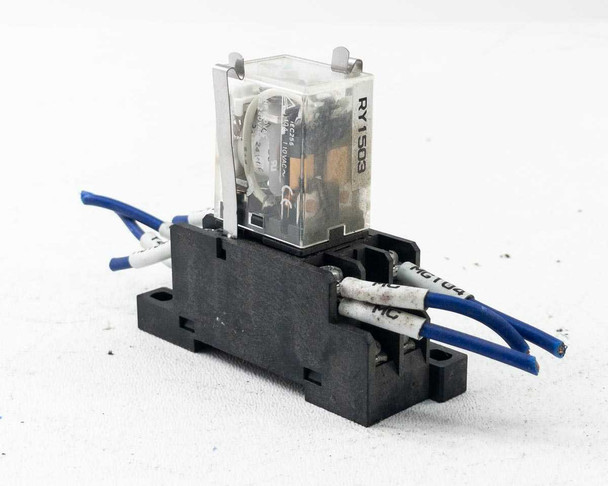

  • Omron LY2N-D2 relay on PTF08A base showing light soil and wear on socket body – front-left view

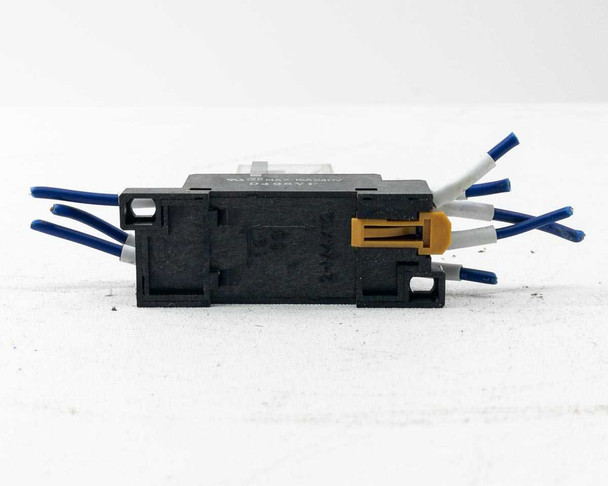

  • PTF08A relay socket base underside view showing screw terminals, wired leads, and orange jumper tab
  • Omron LY2N-D2 relay separated from PTF08A socket base – top-down view showing socket contacts and wiring labels

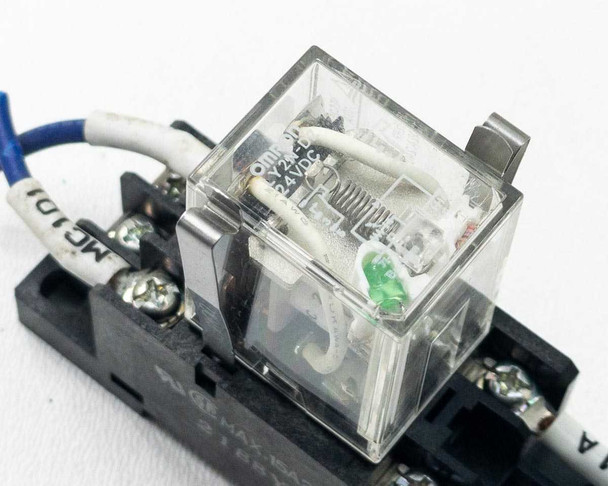

  • Close-up of Omron LY2N-D2 relay in socket showing label: LY2N-D2, 10A 24VDC, and green LED indicator

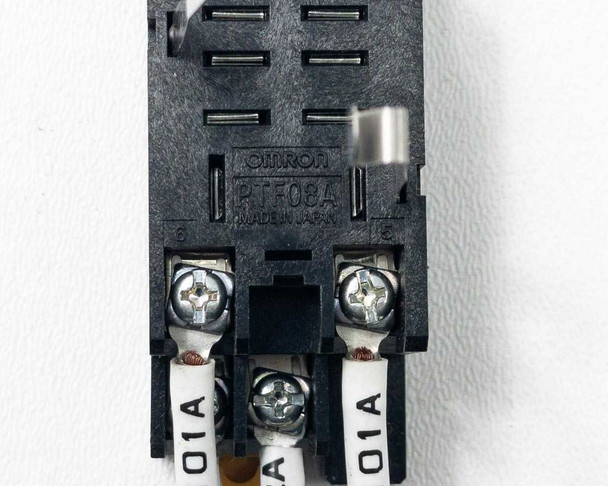

  • Underside of Omron PTF08A relay socket base showing Omron branding, Made in Japan marking, and screw terminals
$20.00
Was: $40.00
Current Stock: 4

Sold Out

Description

Omron LY2N-D2 General Purpose Relay 2PDT 10A 24VDC w/ PTF08A Socket Base

A 2PDT general purpose relay rated for 10A at 24VDC coil voltage. The relay switches up to 110VAC/240VAC loads and mounts via the included Omron PTF08A socket base with wired leads.

Specifications & What's Included

  • Coil Voltage: 24V DC
  • Contact Configuration: 2PDT (2 poles, 2 positions)
  • Contact Rating: 10A at 110VAC/240VAC
  • Socket Base: Omron PTF08A (15A 240V rated)
  • LED operation indicator
  • Transparent case with legible label
  • Certifications: UL, CE
  • Manufactured in Japan

Applications

General purpose relays of this type are commonly used in industrial control circuits, PLC systems, and telecom equipment for switching AC loads. The 2PDT configuration allows simultaneous control of two separate circuits. These relays are found in control panels, automation systems, and machinery control applications where 24VDC logic circuits need to switch higher voltage loads.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Omron LY2N-D2 General Purpose Relay with PTF08A socket base was removed from a large industrial controller system and is in good used condition. The transparent relay case is intact and the internal coil assembly is visible and undamaged. The socket base shows some light soiling consistent with service use, and one unit in the photo set displays additional wear on the socket body. The relay label is legible, confirming the LY2N-D2 model, 24VDC coil, and 10A rating. Wired leads are attached to the socket terminals. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Omron
Model:
LY2N-D2
MPN:
LY2N-D2
Type:
General Purpose Relay
SKU:
53214
Coil Voltage:
24V DC
Contact Configuration:
2PDT (Double Pole Double Throw)
Contact Rating (Amps):
10A
Contact Voltage Rating:
110VAC / 240VAC
Socket / Base Model:
Omron PTF08A
Number of Poles:
2
Case Style:
Transparent
Indicator:
LED operation indicator
Mounting:
Socket / DIN Rail via PTF08A base
Socket Rating:
Max 15A 240V
Certifications:
UL, CE
Country/Region of Manufacture:
Japan
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes relay and matching Omron PTF08A socket base with wired leads
Condition Notes:
Omron LY2N-D2 2PDT 10A 24VDC relay with PTF08A socket base, removed from a large industrial controller system. Good used condition; transparent case intact, label legible. Wired leads attached to socket.
