NSK YS2020FN001 Rotary Positioning Motor w/ SMC Linear Rail & Wiring Harness
The NSK YS2020FN001 is a rotary positioning motor designed for precision industrial automation applications. This unit is configured as an integrated motion assembly combining the NSK rotary motor with an SMC CDRQB series pneumatic linear rail, aluminum mounting block, and a complete multi-conductor wiring harness. The assembly is designed to provide coordinated rotary and linear motion in a single integrated package, suitable for pick-and-place, indexing, or multi-axis positioning tasks in automated production equipment.
Specifications & What's Included
- Manufacturer: NSK Ltd., Made in Japan
- Type: YS2020FN001

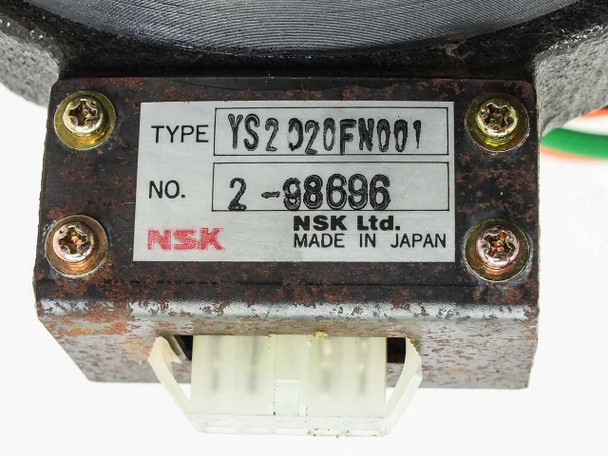

- Serial Number: 2-98696 (visible on label)
- Motor type: Rotary positioning motor
- Linear rail: SMC CDRQB series pneumatic linear actuator

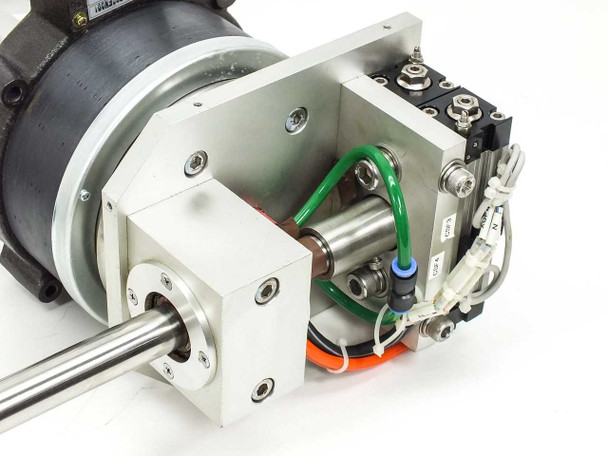

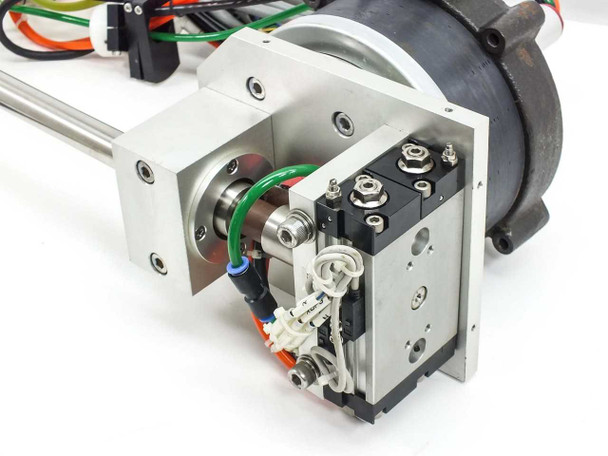

- Mounting: Aluminum mounting block with integrated pneumatic fittings

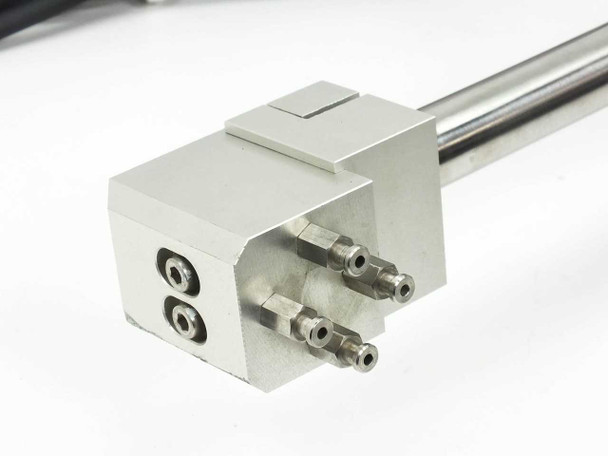

- Pneumatic fittings: Multiple push-in pneumatic tube ports visible on end block

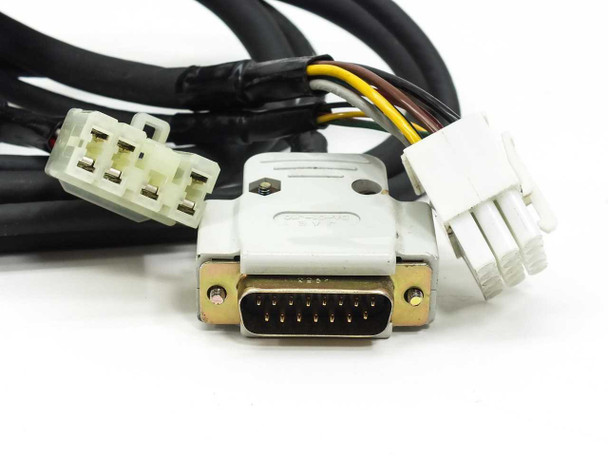

- Connectors: Multi-pin white Molex-style connectors; DB-25 style connector on cable set

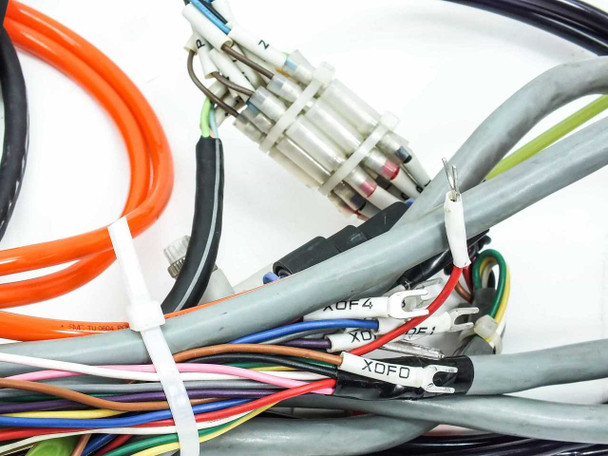

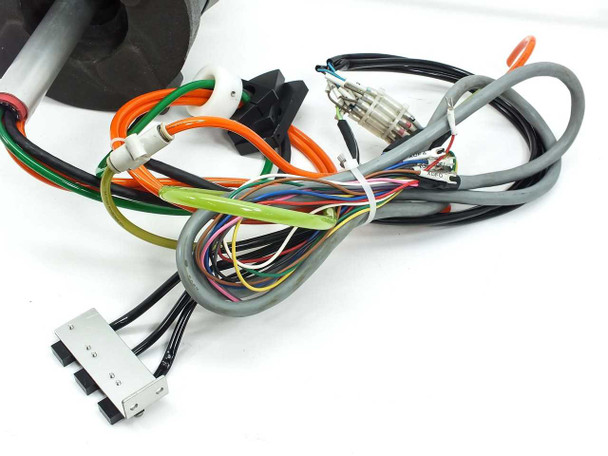

- Includes: Full multi-conductor wiring harness (orange, green, gray, black, multi-color conductors) with labeled terminals (XDFO markings visible)

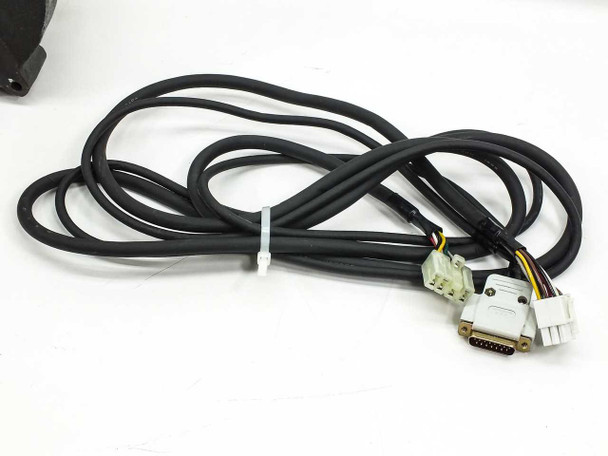

- Includes: Long black multi-conductor cable set with DB-25 and Molex-style connectors
- Includes: Sensor/proximity connectors on harness
Applications
NSK rotary positioning motors are used in precision industrial automation systems where controlled angular movement is required — common applications include disc handling machinery, optical media production lines, semiconductor handling equipment, and general factory automation. The combination of a rotary positioning motor with a pneumatic linear rail allows for coordinated multi-axis motion in a compact assembly, which is typical in pick-and-place systems, part transfer stations, and indexing mechanisms. NSK has supplied motion components to automation OEMs across electronics manufacturing, semiconductor fabrication, and precision assembly industries. The SMC CDRQB rotary actuator series is a widely used pneumatic component in Japanese and global automation equipment from the 1990s through the present. Given the type of assembly and the DVD manufacturing environment category this was originally sourced from, this unit was likely part of a disc handling or transport mechanism in an automated production line.

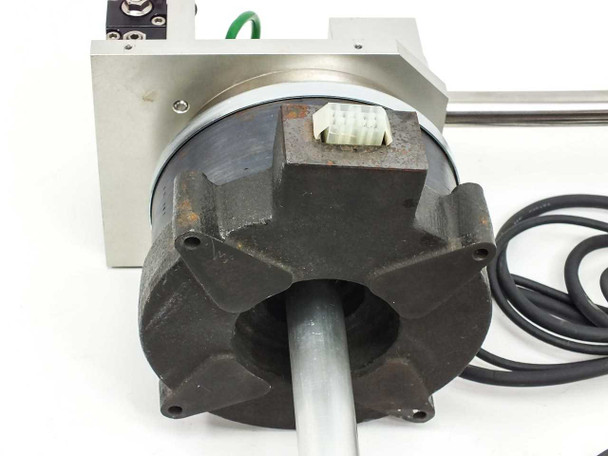

This NSK YS2020FN001 rotary positioning motor and SMC CDRQB linear rail assembly has been inspected and appears to be in good used condition. It was pulled from a working industrial automation environment. The motor housing shows surface oxidation and marks consistent with production use, most visible on the cast rear housing and mounting faces. The aluminum components and linear rail are in good shape with normal handling wear. The full multi-conductor wiring harness is included and intact, with connectors present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
NSK |
Model: |
YS2020FN001 |
MPN: |
YS2020FN001 |
Secondary Model: |
CDRQB |
Type: |
Rotary Positioning Motor with Linear Rail Assembly |
SKU: |
46683 |
Seller Notes: |
Includes SMC CDRQB pneumatic linear rail and full multi-conductor wiring harness |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Pulled from Working Environment |
Application / Use Case: |
Industrial Automation, Precision Positioning, Motion Control |
Actuator Type: |
Rotary Positioning Motor with Pneumatic Linear Rail |
Compatible Brand: |
SMC (linear rail component) |
Includes: |
Motor, SMC linear rail, pneumatic fittings, wiring harness, cable set |
Connector Types: |
Multi-pin white Molex-style connectors, DB-25 style connector |
Form Factor: |
Integrated Motion Assembly |
Condition Notes: |
NSK YS2020FN001 rotary positioning motor with SMC linear rail. Pulled from working environment, inspected, in good used condition. Motor housing shows surface oxidation and use wear. Wiring harness and connectors included. |
