Description
NSK YS2020FN001 6-Slot Rotating Tray Motor w/ EX-13EAD Sensors 10cm Dia
The NSK YS2020FN001 is a precision rotary indexing motor assembly equipped with a 6-slot aluminum sample tray and OMRON EX-13EAD optical position sensors. The motor drives a full 360° rotating tray measuring approximately 10 cm in diameter per slot position, providing repeatable indexed positioning for automated sample handling. The assembly includes a vertical center shaft, sensor mounts at the tray hub, and a multi-conductor wiring harness. Manufactured by NSK Ltd. in Japan.
Specifications & What's Included

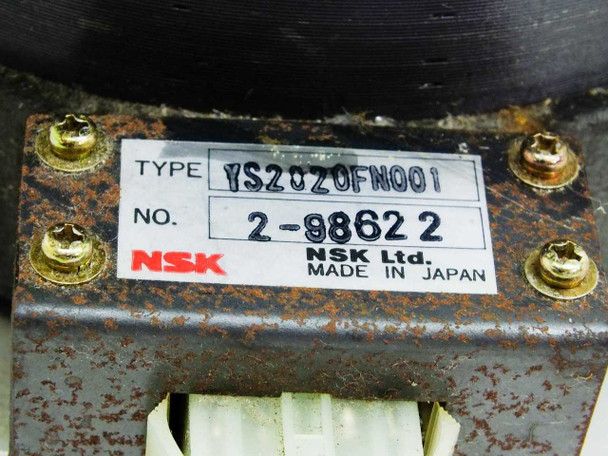

- Manufacturer: NSK Ltd. (Made in Japan)
- Model / Type: YS2020FN001
- Configuration: 6-slot rotating sample tray
- Tray diameter: approximately 10 cm per slot
- Rotation: Full 360°
- Tray material: Aluminum
- Position sensors: OMRON EX-13EAD (2 sensors visible, mounted at tray hub)
- Sensor mount labels: PH1D4 and PH1D5
- Center shaft: Stainless steel vertical shaft with hollow bore (white polymer inner tube)

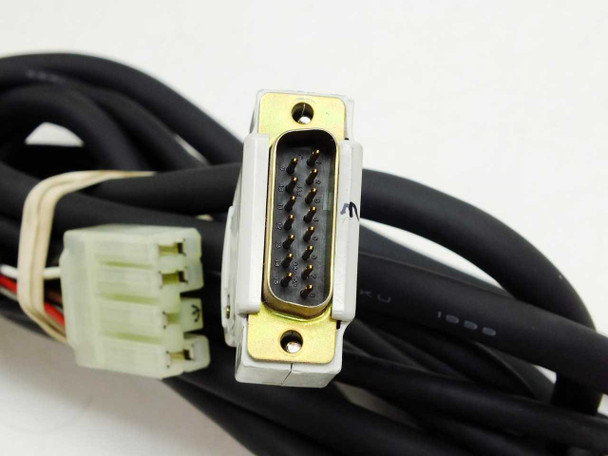

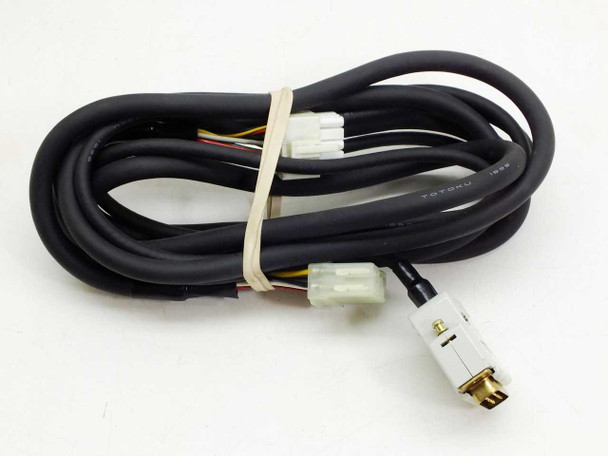

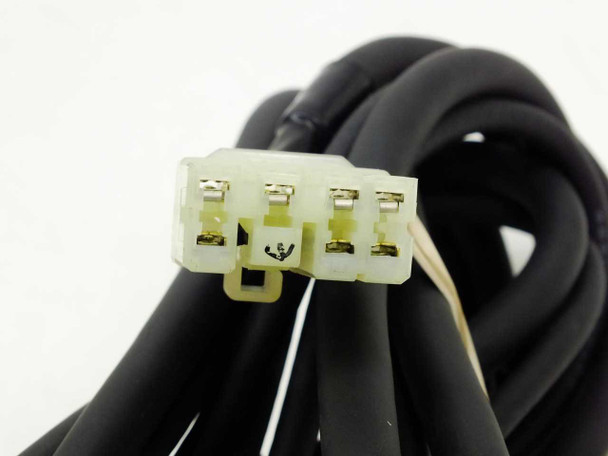

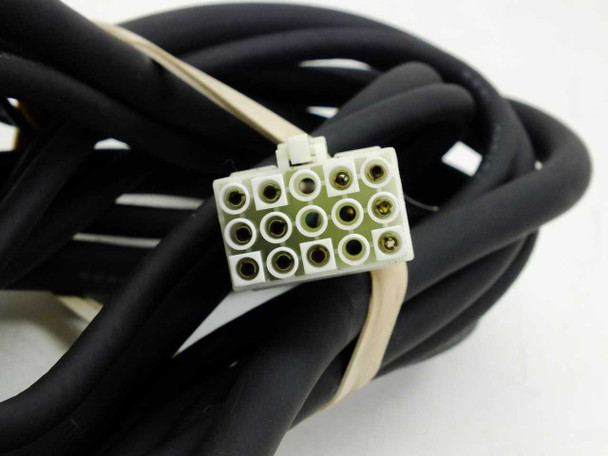

- Wiring harness included: multi-pin harness with DB-style connector (~15-pin), 4-position inline connector, and 12-position block connector
- Motor base: aluminum mounting plate
Applications
Rotary indexing motor assemblies of this type are used in automated laboratory and semiconductor processing equipment where multiple samples or substrates need to be cycled into a fixed work position — such as under an optical sensor, pick-and-place arm, or process head. The 6-slot tray design allows sequential indexing of samples with precise positional feedback provided by the optical sensors. This type of assembly is commonly found in semiconductor wafer handling, photonics test fixtures, automated sample changers, and clean-room lab automation platforms. NSK Ltd. is a well-known Japanese precision engineering manufacturer whose motion components appear in a wide range of industrial automation and scientific instrumentation systems.
This NSK YS2020FN001 6-slot rotating tray motor has been inspected and appears to be in good condition. The motor body shows surface oxidation/rust on the lower housing and mounting base plate, as seen in the photos. The aluminum tray and center shaft are intact with no visible damage. The EX-13EAD position sensors are in place at the tray hub. The wiring harness with multi-pin connectors is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
NSK |
Model: |
YS2020FN001 |
MPN: |
YS2020FN001 |
Secondary Model: |
EX-13EAD |
SKU: |
46794 |
Type: |
Rotary Indexing Tray Motor with Position Sensors |
Number of Slots: |
6 |
Tray Diameter: |
10 cm |
Rotation: |
Full 360° |
Sensor Model: |
EX-13EAD |
Sensor Type: |
Position / Home Sensor |
Tray Material: |
Aluminum |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Includes EX-13EAD sensors and wiring harness with multi-pin connectors |
Form Factor: |
Standalone Assembly |
Application: |
Semiconductor / Lab Automation / Sample Indexing |
Connector Type: |
Multi-pin inline connector; DB-style connector on harness |
Condition Notes: |
NSK YS2020FN001 6-slot rotating tray motor. Inspected and in good condition. Motor body shows surface rust on lower housing and base plate. Aluminum tray and sensors intact. Wiring harness included. |
