NSI Industries AL-P1-K6 Connector-Bloks Power Distribution Block 310A 600V

(No reviews yet) Write a Review
SKU:
53154
MPN:
AL-P1-K6
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

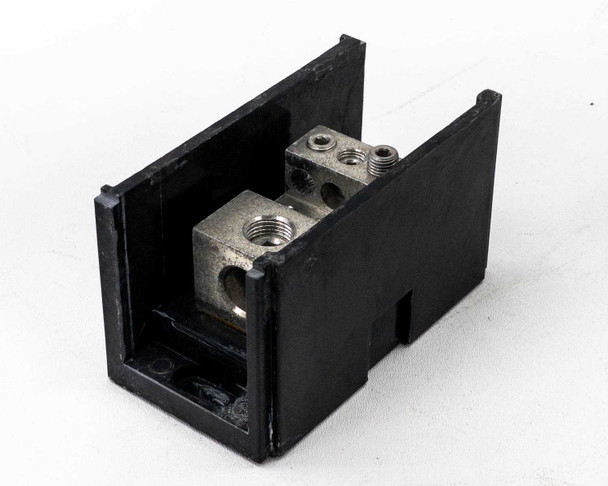

  • NSI Industries AL-P1-K6 Connector-Bloks power distribution block – angled front view showing black thermoplastic housing and aluminum terminal lugs
  • NSI AL-P1-K6 power distribution block – front face view showing three load-side set-screw terminal ports
  • NSI Industries AL-P1-K6 Connector-Bloks – side view with product label showing catalog number, wire range, and ratings
  • NSI AL-P1-K6 label close-up showing 310A per pole, 600V max, 350 MCM–6 AWG line side, 2/0–14 AWG load side, UL 1059 listing
  • NSI AL-P1-K6 – close-up of line-side aluminum lug with set-screw and load-side terminal block detail
  • NSI AL-P1-K6 power distribution block – top-down view showing line and load-side terminal ports
  • NSI AL-P1-K6 – top view of terminal block showing multiple set-screw load ports and single line lug opening
  • NSI AL-P1-K6 Connector-Bloks – rear view showing black thermoplastic body and mounting slot
$50.00
Was: $100.00
Current Stock: 3

Sold Out

Description

NSI Industries AL-P1-K6 Connector-Bloks Power Distribution Block 310A 600V

The NSI Industries AL-P1-K6 is a single-pole modular power distribution block from the Connector-Bloks series, rated at 310 amps per pole and 600V max. It accepts a large-gauge line-side feeder (up to 350 MCM) and distributes power to multiple smaller load-side circuits (2/0–14 AWG), making it a practical solution for splitting a single incoming feeder into multiple branch circuit connections within a panelboard, switchboard, or motor control center enclosure.

Specifications & What's Included

  • Catalog Number: AL-P1-K6
  • Product Line: Connector-Bloks (Modular Power Distribution Blocks)
  • Amps Per Pole: 310A
  • Voltage Rating: 600V Max
  • Line Side Wire Range: 350 MCM – 6 AWG
  • Load Side Wire Range: 2/0 – 14 AWG
  • SCCR (Short Circuit Current Rating): 10,000A
  • Temperature Rating: 90°C
  • Conductor Compatibility: CU9AL (rated for both copper and aluminum conductors)
  • Listing: UL 1059 Terminal Block
  • Country of Manufacture: USA
  • Housing: Black thermoplastic enclosure with modular mounting slots
  • Terminals: Aluminum set-screw lugs — one line-side lug, multiple load-side ports
  • Includes: Single AL-P1-K6 distribution block unit

Applications

Modular power distribution blocks like the AL-P1-K6 are standard components in industrial and commercial electrical panels, used to tap a single large-gauge feeder and distribute it to multiple smaller branch conductors without requiring additional breakers or splices. They are commonly installed in panelboards, switchboards, motor control centers (MCCs), and custom-built electrical enclosures where a feeder must be split at the point of distribution. The CU9AL rating makes the block compatible with both copper and aluminum wiring — an important consideration in commercial and industrial installations where aluminum feeders are common. The 350 MCM line-side capacity and 310A per-pole rating suit it for high-current service entrance and sub-panel distribution applications. NSI Industries' Connector-Bloks line is widely used by electricians and panel builders in the United States and is a well-established product family in the industrial electrical supply trade.

Condition: Used
This NSI Industries AL-P1-K6 Connector-Bloks modular power distribution block has been inspected and is in good used condition. It was pulled from a working electrical installation. The black thermoplastic housing shows normal surface wear and minor scuffing consistent with field use. The aluminum terminal lugs and load-side set-screw ports are intact with no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
NSi Industries
Model:
AL-P1-K6
MPN:
AL-P1-K6
Type:
Modular Power Distribution Block
Product Line:
Connector-Bloks
SKU:
53154
Amps Per Pole:
310A
Voltage Rating:
600V Max
Line Side Wire Range:
350 MCM - 6 AWG
Load Side Wire Range:
2/0 - 14 AWG
SCCR (Short Circuit Current Rating):
10,000A
Temperature Rating:
90°C
Conductor Material Compatibility:
CU9AL (Copper and Aluminum)
Standards / Certifications:
UL 1059 Listed, Terminal Block
Country/Region of Manufacture:
United States
Enclosure Material:
Black thermoplastic housing
Condition:
Used – Pulled from Working Environment
Seller Notes:
Single AL-P1-K6 modular power distribution block. No additional accessories included.
Condition Notes:
NSI Industries AL-P1-K6 Connector-Bloks power distribution block. Inspected, good used condition. Pulled from a working electrical installation. Housing shows normal wear; terminal lugs and ports intact. No damage noted.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

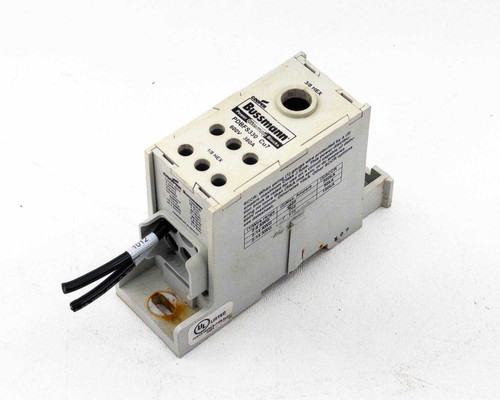

Cooper Bussmann PDBFS330 Cu7 Power Distribution Block – angled front-left view showing DIN rail mount and attached lead wires Cooper Bussmann PDBFS330 Cu7 Power Distribution Block – front face showing label with 600V 380A rating and 3/8 and 1/8 HEX callouts
