Description

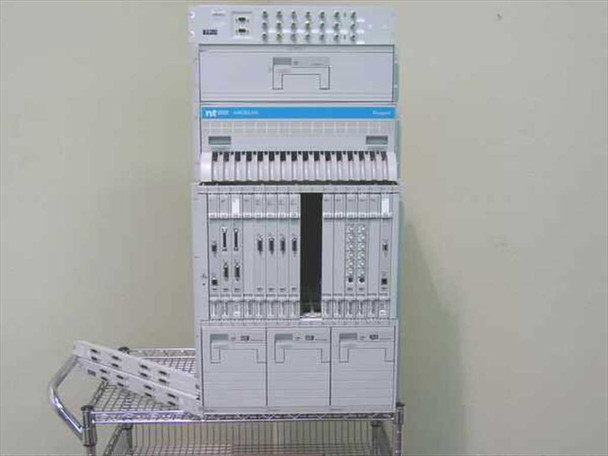

Nortel Passport 6480 NTJS60BA Multiservice Edge Switch ATM Frame Relay WAN
The Nortel Passport 6480 is a rack-mount multiservice edge switch designed for WAN connectivity. It supports ATM, Frame Relay, HSSI, and DS3/E3 interfaces for enterprise network infrastructure.
Specifications & What's Included
- Model: Passport 6480 (NTJS60ba-01)
- Interfaces: ATM, Frame Relay, HSSI, DS3/E3, DS1/E1

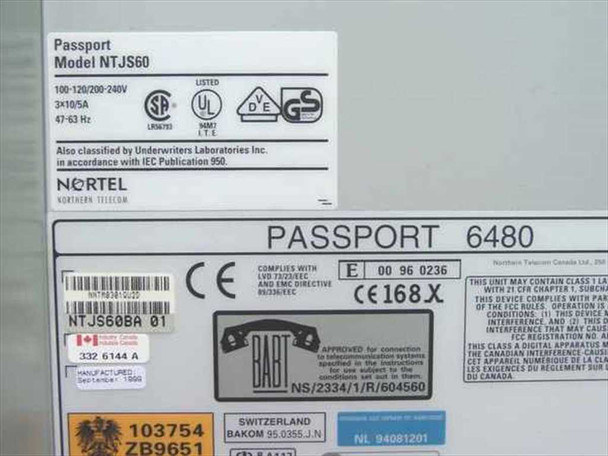

- Power: 100-120V / 200-240V AC, 3x10/5A, 47-63 Hz

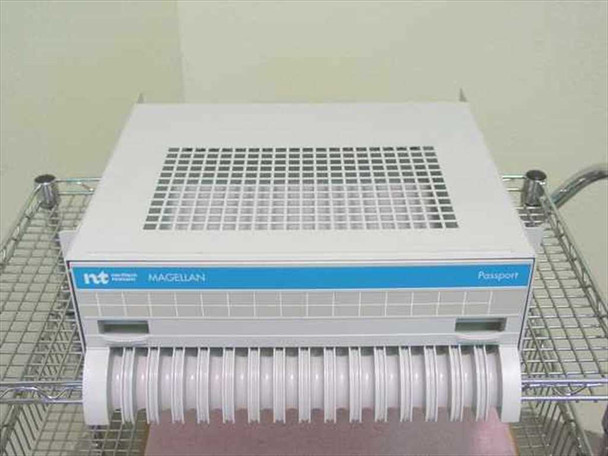

- Chassis with 3x power supplies, cooling unit, CP card, HSSI card, 4x DSIM cards, 2x DS3A cards, 2x balanced panels, 1x sparing panel, 4x slot covers
- Manufactured: Canada
- Certifications: UL Listed, CE, BABT
Applications
The Passport 6400 series was used in enterprise WAN deployments for multiservice edge switching between corporate networks and carrier services. These switches handled traffic aggregation across ATM and Frame Relay connections, supporting DS1/E1 and DS3/E3 circuits. Compatible with Nortel Passport 6400 series WAN infrastructure, this equipment was typically deployed at network edges for protocol conversion and service multiplexing.
Condition: For Parts or Not Working
This Nortel Passport 6480 Multiservice Edge Switch (NTJS60BA-01) is being sold as-is for parts or repair. We were unable to fully test the system at our facility. The unit is being sold in its current state with no functionality guarantee. The chassis and all listed cards and modules are included as described in the component manifest below. The system shows normal wear consistent with prior enterprise data center use. Please review all photos carefully and contact us with any questions before purchasing.
This Nortel Passport 6480 Multiservice Edge Switch (NTJS60BA-01) is being sold as-is for parts or repair. We were unable to fully test the system at our facility. The unit is being sold in its current state with no functionality guarantee. The chassis and all listed cards and modules are included as described in the component manifest below. The system shows normal wear consistent with prior enterprise data center use. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Nortel |
Model: |
Passport 6480 |
MPN: |
NTJS60BA-01 |
Type: |
Multiservice Edge Switch |
SKU: |
17353 |
Condition: |
As-Is / For Parts or Not Working |
Series: |
Passport 6400 |
Seller Notes: |
Includes chassis, 3x power supplies, cooling unit, CP card, HSSI card, 4x DSIM cards, 2x DS3A cards, 2x balanced panels, 1x sparing panel, 4x slot covers |
Country/Region of Manufacture: |
Canada |
Form Factor: |
Rack Mount / Tower Chassis |
Power Requirements: |
100-120V / 200-240V AC, 3x10/5A, 47-63 Hz |
Interface Type: |
ATM, Frame Relay, HSSI, DS3/E3, DS1/E1 |
Protocol: |
ATM, Frame Relay, Optical Internet |
Management Type: |
Managed |
Network Application: |
Multiservice WAN Edge Switching |
Chassis Part Number: |
NTJS60BA-01 |
Power Supply Part Number: |
NTBP09BA-07 (qty 3) |
Cooling Unit Part Number: |
NTBP07AA-01 (qty 1) |

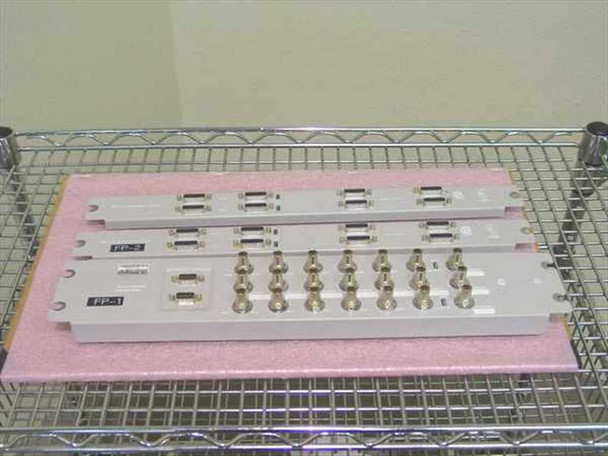

Balanced Panel Part Number: |
NTFP10BA (qty 2) — DS1/E1 Balanced Panel |
Sparing Panel Part Number: |
NTFP99AB-02 (qty 1) — DS3/E3 3 Channel |
CP Card Part Number: |
NTFN33GA-06 / NTNN01AA-06 (qty 1 each) |
HSSI Card Part Number: |
NTFN58EA-02 / NTNQ27AA-04 (qty 1 each) |
DSIM Card Part Number: |
NTFN62BC-02 (qty 4) |
DS3A Card Part Number: |
NTFP18IA-02 (qty 2) |
Slot Cover Part Number: |
NTB23BA-03 (qty 4) |
Empty Slots: |
2 |
Certifications: |
UL Listed, CE, BABT NS/2334/1/R/604560 |
Compatible With: |
Nortel Passport 6400 Series WAN infrastructure |
Condition Notes: |
Nortel Passport 6480 NTJS60BA Multiservice Edge Switch sold as-is for parts or repair. Unable to fully test at our facility. No functionality guarantee. All listed components included. Please review photos and contact us with questions. |
