Description
Nortel Passport 6480 NTJS59AA Multiservice Edge Switch DC ATM Frame Relay AS-IS
Rackmount WAN edge switch for multiservice networking. Supports ATM, Frame Relay, and optical protocols across enterprise LAN and WAN deployments.
Specifications & What's Included

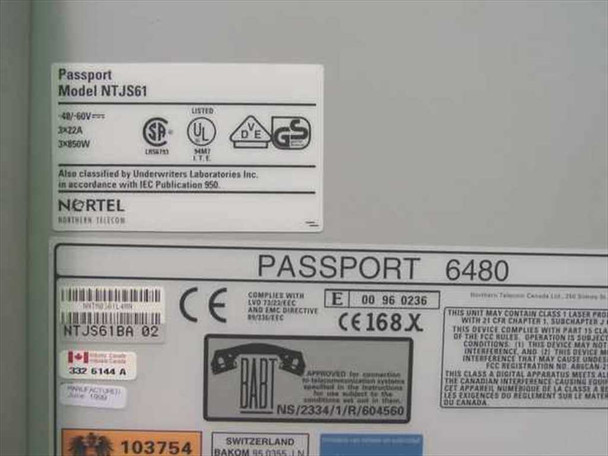

- Model: Passport 6480 (NTJS59AA-01); Secondary designation NTJS61
- Chassis with 3x 850W power supplies (48/60V DC, 3x22A each)
- Cooling unit, sparing panel, 9x slot covers

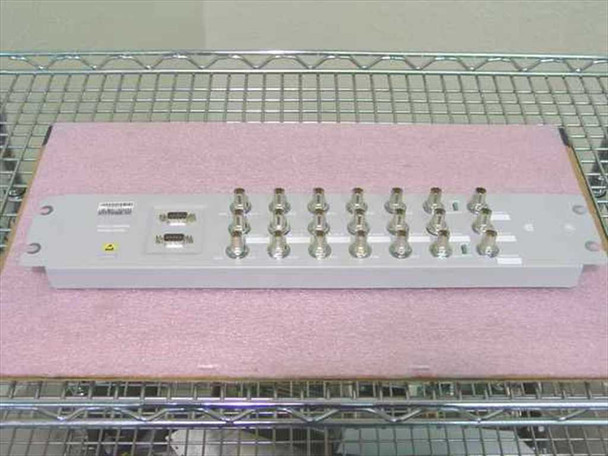

- 2x CP cards, 2x HSSI cards, 1x DSIM card, 2x DS3A cards
- Interfaces: DS3/E3, HSSI, DS3A
- Management: Managed switch; UL, CE, GS, BABT certified
Applications
The Passport 6400 series served as a carrier-class multiservice edge platform in enterprise and service provider networks. Commonly deployed for WAN aggregation, supporting simultaneous ATM and Frame Relay traffic over DS3/E3 and HSSI links. Functioned as a peering point between legacy TDM networks and packet-based infrastructure.
Condition: For Parts or Not Working
This Nortel Passport 6480 Multiservice Edge Switch system is being sold AS-IS for parts or repair. We were unable to fully test this system at our facility, so no functionality is guaranteed. The system includes a full complement of components as listed in the specifications — chassis, power supplies, cooling unit, CP cards, HSSI cards, DSIM card, DS3A cards, sparing panel, and slot covers — all appearing complete and intact based on physical inspection. The unit shows typical wear consistent with enterprise data center use. Please view our full photo set and contact us if you have any questions before purchasing.
This Nortel Passport 6480 Multiservice Edge Switch system is being sold AS-IS for parts or repair. We were unable to fully test this system at our facility, so no functionality is guaranteed. The system includes a full complement of components as listed in the specifications — chassis, power supplies, cooling unit, CP cards, HSSI cards, DSIM card, DS3A cards, sparing panel, and slot covers — all appearing complete and intact based on physical inspection. The unit shows typical wear consistent with enterprise data center use. Please view our full photo set and contact us if you have any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Nortel |
Model: |
Passport 6480 |
MPN: |
NTJS59AA-01 |
Secondary Model: |
NTJS61 (per label) |
Type: |
Multiservice WAN Edge Switch System |
SKU: |
17356 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes chassis, 3x power supplies, cooling unit, sparing panel, 2x CP cards, 2x HSSI cards, DSIM card, 2x DS3A cards, 9x slot covers |
Country/Region of Manufacture: |
Canada |
Form Factor: |
Rackmount Chassis |
Power Requirements: |
48/60V DC, 3x22A, 3x850W |
Chassis Part Number: |
NTJS59AA-01 |
Power Supply Part Number: |
NTBP52BA-07 (qty 3) |

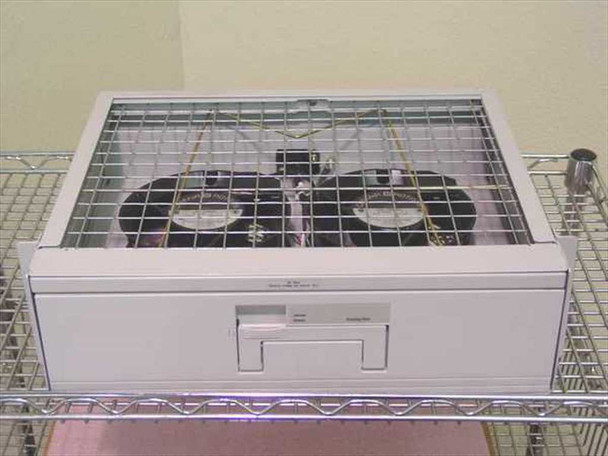

Cooling Unit Part Number: |
NTBP07AA-03 (qty 1) |

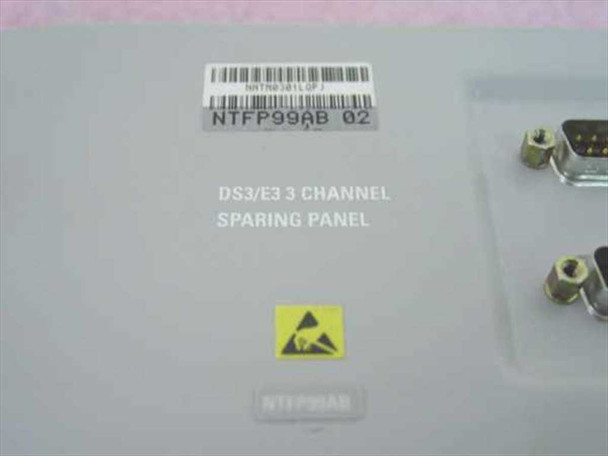

Sparing Panel Part Number: |
NTFP99AB-02 (qty 1) |
CP Card Part Number: |
NTFN33GA-05 (qty 2) |
HSSI Card Part Numbers: |
NTFN58GA-02 x1 / NTFN58EA-02 x1 |
DSIM Card Part Number: |
NTFN62BC-02 (qty 1) |
DS3A Card Part Number: |
NTFP18IA-02 (qty 2) |
Slot Cover Part Number: |
NTBP23BA-03 (qty 9) |
Protocol: |
ATM, Frame Relay, Optical Internet |
Interface Type: |
DS3/E3, HSSI, DS3A |
Sparing Panel Type: |
DS3/E3 3 Channel Sparing Panel |
Management Type: |
Managed |
Product Family: |
Passport 6400 Series |
Network Type: |
WAN / Enterprise LAN |
Certifications: |
UL, CE, GS, BABT, Industry Canada |
Condition Notes: |
Nortel Passport 6480 Multiservice Edge Switch sold AS-IS for parts or repair. Could not fully test at our facility; no functionality guaranteed. All listed cards and modules appear physically present. |
