Nortel / Bay Networks

Nortel Bay Networks CL1333001 Centillion 5000 2-Port OC-3 ATM MMF Module

(No reviews yet) Write a Review
SKU:
19650
MPN:
CL1333001
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

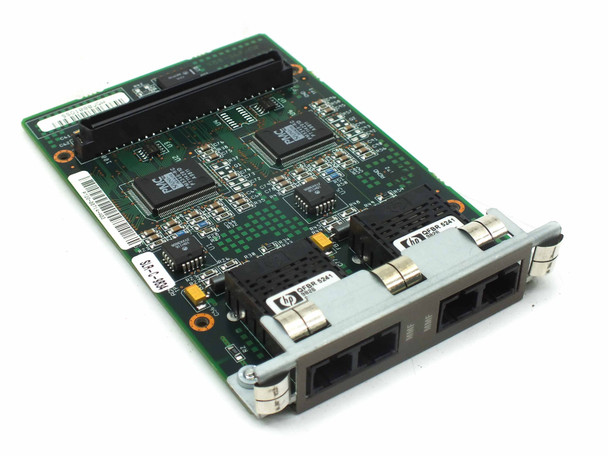

  • Nortel CL1333001 Centillion 5000 2-Port OC-3 ATM MMF module — angled front view showing SC duplex fiber ports and PCB
  • Nortel CL1333001 OC-3 ATM module — top-side PCB view showing dual PMC ATM controller chips and SC fiber port faceplate

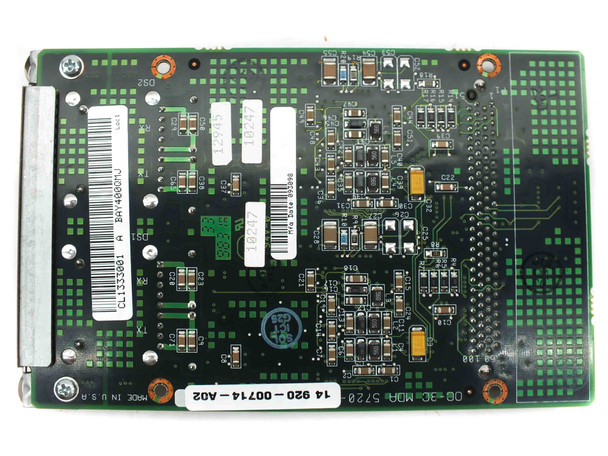

  • Nortel CL1333001 ATM module — bottom PCB view showing part number label CL1333001 and board revision marking 14 920-00714-A02

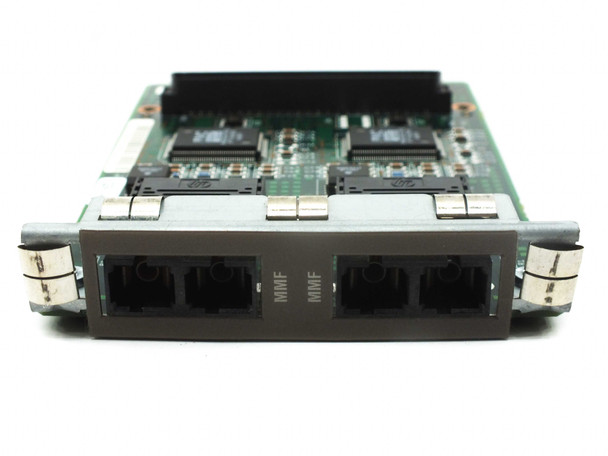

  • Nortel CL1333001 Centillion 5000 ATM module — close-up of dual SC duplex MMF fiber port faceplate labeled MMF
$60.00
Was: $125.00
Current Stock: 9

Sold Out

Description

Nortel Bay Networks CL1333001 Centillion 5000 2-Port OC-3 ATM MMF Module

A managed network interface module for the Centillion 5000 switch chassis. Provides two OC-3 (155 Mbps) ATM ports over multimode fiber for connecting high-speed backbone and WAN links.

Specifications & What's Included

  • Model: CL1333001 (MPN: 14 920-00714-A02)
  • Port Configuration: 2x OC-3 MMF (SC duplex connectors)
  • Data Rate: 155 Mbps per port
  • Interface: OC-3 / STM-1 ATM
  • Fiber Type: Multimode Fiber (MMF)
  • Chipset: Dual PMC ATM controller ICs
  • Board only; no accessories included

Applications

OC-3 ATM modules were standard in enterprise networking during the 1990s and 2000s for connecting Centillion 5000 chassis to carrier WAN services and campus backbone networks. This module fits Nortel Bay Networks Centillion 5000 systems and supports managed ATM switching environments requiring fiber-based high-speed connectivity.

Condition: Open Box
This Nortel Bay Networks CL1333001 Centillion 5000 2-Port OC-3 ATM module is new from the manufacturer but is being sold as open box. It may have been stored for an extended period or removed from its original packaging, and may be past any manufacturer shelf-life date if applicable. The board appears clean with no visible damage or wear in our photos. No accessories are included — this is the module card only. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Nortel
Model:
CL1333001
MPN:
CL1333001
Secondary Model:
14 920-00714-A02
Type:
2-Port OC-3 ATM Network Module
SKU:
19650
Compatible With:
Nortel Bay Networks Centillion 5000
Number of Ports:
2
Port Type:
OC-3 (MMF) — SC duplex fiber
Interface Type:
OC-3 / STM-1
Data Rate:
155 Mbps
Fiber Type:
Multimode Fiber (MMF)
Protocol:
ATM (Asynchronous Transfer Mode)
Chipset:
PMC (2x PMC ATM controller ICs)
Form Factor:
Card / Module
Management Type:
Managed
Seller Notes:
Open-box module; no accessories included. Board only.
Country/Region of Manufacture:
Canada
Condition Notes:
Nortel CL1333001 Centillion 5000 OC-3 ATM module. Open-box — new from manufacturer, but may have been stored long-term or removed from original packaging. Board only, no accessories. Please contact us with any questions.
View AllClose
