Nortel Bay Networks 5720 ATM MDA Host Module MCP CL1304013 4-Port Card

(No reviews yet) Write a Review
SKU:
14653
MPN:
CL130413
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout

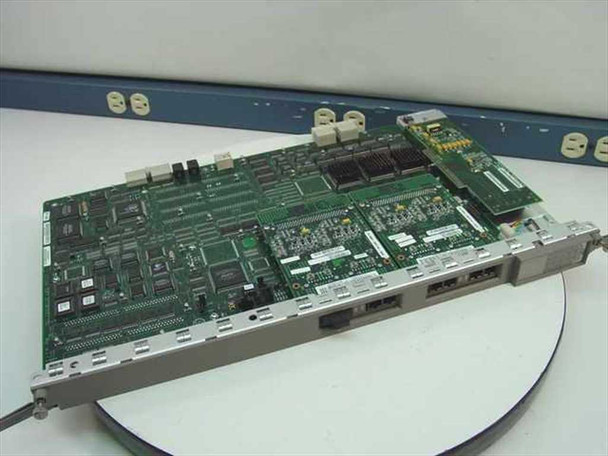

  • Nortel Bay Networks 5720 ATM MDA Host Module CL1304013 – top-side PCB view showing main board components and faceplate with ports
  • Nortel Bay Networks 5720 ATM MDA Host Module – angled top view showing full board length, daughtercard, and rear connector edge
  • Nortel 5720 ATM MDA Host faceplate label showing Port Status indicators for ports 1–4 with TX, RX, Part, Lcl, Rem, SDH, LOF LEDs
  • Nortel 5720 ATM MDA Host rear label showing part number CL1304013, secondary number SSO27N00C2, and Mfg Date 12/30/1999
$60.00
Was: $125.00
Current Stock: 10

Sold Out

Description

Nortel Bay Networks 5720 ATM MDA Host Module MCP CL1304013 4-Port Card

This is a 4-port ATM MDA Host Controller Module (MCP card) for the Nortel/Bay Networks 5720 ATM chassis. The card provides ATM interface functionality with per-port status indicators for transmission, reception, partition, local, remote, SDH, and loss-of-frame monitoring.

Specifications & What's Included

  • Brand: Nortel / Bay Networks
  • Model: 5720 ATM MDA Host Module
  • MPN: CL1304013 | Secondary Model: SSO27N00C2
  • Type: ATM MDA Host Controller Module (MCP Card)
  • Ports: 4 ATM interfaces
  • Port Status Indicators: TX, RX, Part, Lcl, Rem, SDH, LOF per port
  • Form Factor: Chassis card/module
  • Manufactured: Canada, December 1999
  • Includes: Card only; no chassis or accessories

Applications

The 5720 ATM module was used in enterprise and carrier networks for asynchronous transfer mode connectivity during the late 1990s and early 2000s. These cards provided backbone and edge switching functions in ATM-based network infrastructure. The module is compatible only with Nortel/Bay Networks 5720 ATM chassis systems and integrates into networks requiring ATM cell-based switching and multiplexing capabilities.

Condition: Used
This Nortel Bay Networks 5720 ATM MDA Host Module (MCP, part CL1304013) was pulled from decommissioned ATM networking equipment. The board and faceplate appear to be in good used condition with normal wear consistent with prior service. The faceplate label and rear identification labels are intact and legible. No cracked solder joints or obviously damaged components are visible in the photos. This item has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
