Description

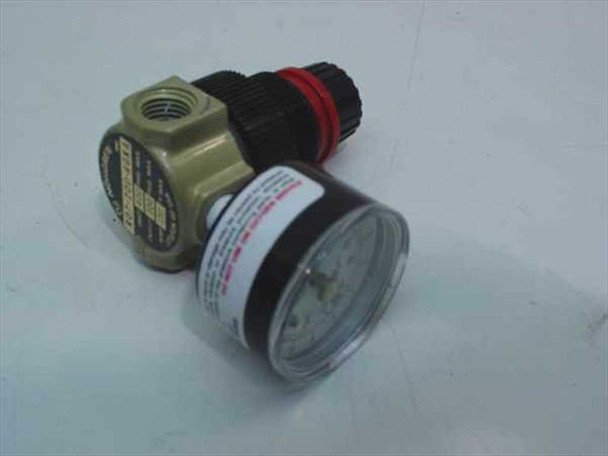

Norgren R07-200-RGKA Mini Air Pressure Regulator 1/4 NPT 22 SCFM w/ Gauge 400 PSI
The Norgren R07-200-RGKA is a compact inline pneumatic pressure regulator designed for precise downstream pressure control in compressed air and general industrial gas systems. It features a relieving-type design, which vents excess downstream pressure when the set point is reduced, and comes fitted with an attached GC620 pressure gauge for direct output monitoring. Made in Littleton, Colorado, USA by Norgren (IMI Precision Engineering).
Specifications & What's Included
- Model: Norgren R07-200-RGKA
- Port size: 1/4 inch NPT (inlet and outlet)
- Outlet pressure range: 5–100 PSIG adjustable
- Inlet pressure maximum: 400 PSIG
- Outlet pressure maximum: 100 PSIG
- Maximum flow rate: 22 SCFM at 100 PSIG inlet pressure
- Maximum temperature: 150°F
- Regulation type: Relieving
- Body material: Brass
- Adjustment: Top-mount knob with red locking ring
- Included: GC620 pressure gauge (0–160 PSI range), attached
- Manufacturer: Norgren / IMI Precision Engineering — Littleton, CO USA
Applications
The Norgren R07-200-RGKA is a standard inline pneumatic regulator used throughout industrial, manufacturing, and laboratory environments to reduce and stabilize supply air pressure at individual tools, actuators, cylinders, or instruments. Its compact mini form factor makes it well suited for point-of-use installations where space is limited — directly upstream of a pneumatic valve, air-driven tool, spray gun, or instrumentation inlet. The relieving design is particularly useful in systems where downstream pressure can build up due to thermal expansion or backpressure and needs to vent safely. Norgren (part of IMI Precision Engineering) has produced pneumatic regulators in this series for decades, and the R07 family is a widely deployed workhorse in compressed air circuits across automotive, electronics manufacturing, food processing, and general factory automation.
This Norgren R07-200-RGKA Mini Air Pressure Regulator has been inspected and appears to be in good used condition. The unit shows minor surface wear consistent with prior use, but the body, adjustment knob, and gauge are all intact with no visible cracks or damage. The attached GC620 pressure gauge face is clear and legible. This unit was pulled from a working environment where it was previously in service. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Norgren |
Model: |
R07-200-RGKA |
MPN: |
R07-200-RGKA |
Type: |
Mini Air Pressure Regulator |
SKU: |
21772 |
Inlet Port Size: |
1/4 inch NPT |
Outlet Port Size: |
1/4 inch NPT |
Pressure Range (Outlet): |
5–100 PSIG adjustable |
Inlet Pressure Max: |
400 PSIG |
Outlet Pressure Max: |
100 PSIG |
Max Flow Rate: |
22 SCFM at 100 PSIG inlet |
Temperature Rating: |
150°F maximum |
Regulation Type: |
Relieving |
Includes Gauge: |
Yes – GC620 pressure gauge |
Gauge Range: |
0–160 PSI |
Body Material: |
Brass |
Seller Notes: |
Includes attached GC620 pressure gauge. Regulator body only — no additional fittings or mounting hardware. |
Country/Region of Manufacture: |
United States (Littleton, CO) |
Form Factor: |
Inline / Panel Mount |
Compatible With: |
Compressed air, pneumatic systems, general industrial gas service |
Condition Notes: |
This Norgren R07-200-RGKA mini air pressure regulator is in good used condition with minor surface wear. Body, knob, and attached GC620 gauge are intact. Pulled from a working environment. Please contact us with any questions. |
