Description

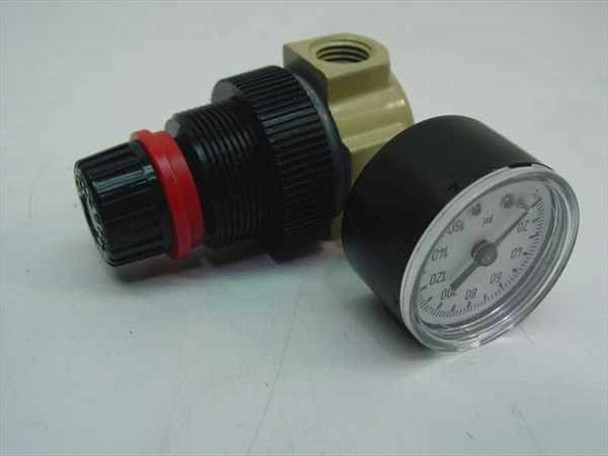

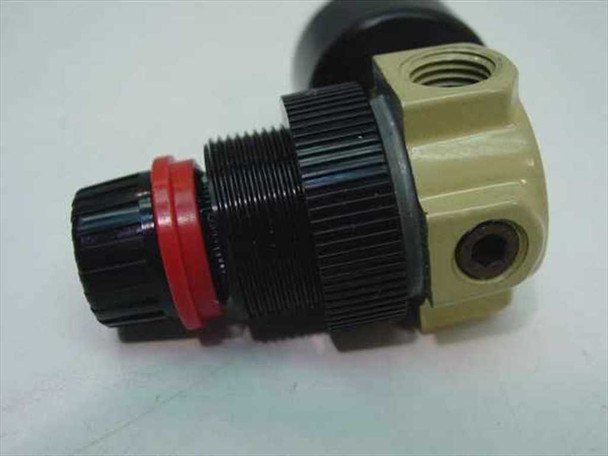

Dixon R07-200R Pneumatic Mini Air Regulator 1/4 NPT 22 SCFM 100 PSIG w/ Gauge
Pneumatic mini air pressure regulator for controlling and maintaining consistent outlet pressure in compressed air systems. Relieving type with integral WIKA gauge for pressure monitoring.
Specifications & What's Included

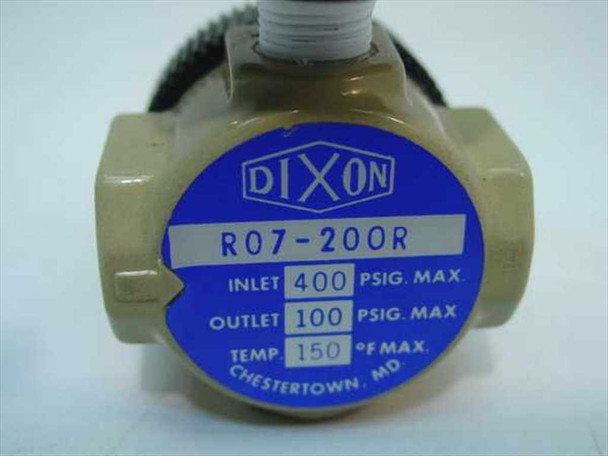

- Model: R07-200R | Max Inlet Pressure: 400 PSIG | Max Outlet Pressure: 100 PSIG
- Adjustable Pressure Range: 5–100 PSIG
- Flow Rate: 22 SCFM at 100 PSIG inlet
- Port Size: 1/4 inch NPT
- Temperature Rating: 150°F maximum

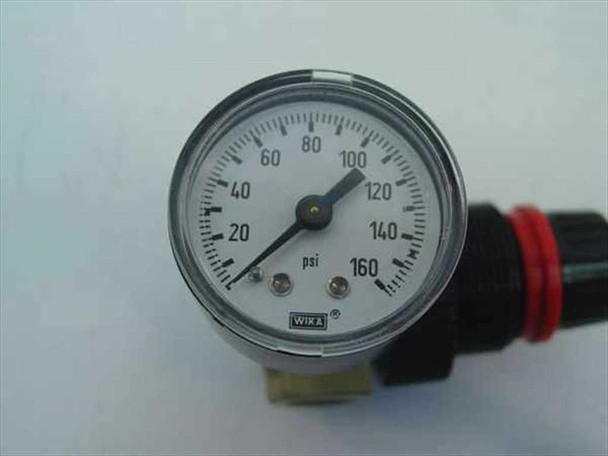

- Includes WIKA 0–160 PSI pressure gauge
- Made in United States
Applications
Mini regulators are used in compressed air systems to reduce and stabilize downstream pressure. Common in pneumatic tool circuits, control valve pilot lines, instrumentation systems, and light industrial automation. The 1/4 NPT port accommodates standard industrial and telecom pneumatic line connections. Suitable for facilities requiring precise pressure regulation at lower flow rates.
Condition: Used
This Dixon R07-200R Pneumatic Mini Air Regulator has been inspected and is in good used condition. The regulator body, adjustment knob, and fittings show normal wear consistent with prior use. The attached WIKA 0–160 PSI pressure gauge is intact and the face is clean and legible. No cracks, leaks, or damage are noted. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Dixon R07-200R Pneumatic Mini Air Regulator has been inspected and is in good used condition. The regulator body, adjustment knob, and fittings show normal wear consistent with prior use. The attached WIKA 0–160 PSI pressure gauge is intact and the face is clean and legible. No cracks, leaks, or damage are noted. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Dixon |
Model: |
R07-200R |
MPN: |
R07-200R |
Type: |
Pneumatic Mini Air Pressure Regulator |
SKU: |
21776 |
Inlet Pressure (Max): |
400 PSIG |
Outlet Pressure (Max): |
100 PSIG |
Pressure Range (Adjustable): |
5–100 PSIG |
Max Flow Rate: |
22 SCFM at 100 PSIG inlet |
Temperature Rating (Max): |
150°F |
Port Size: |
1/4 inch NPT |
Regulator Style: |
Relieving Type |
Includes Gauge: |
Yes — WIKA 0–160 PSI gauge |
Gauge Model: |
WIKA (0–160 PSI) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes attached WIKA 0–160 PSI pressure gauge |
Condition: |
Used – Inspected |
Review Status: |
Auto-Approved (needs review) 2026-07-04 |
Condition Notes: |
Dixon R07-200R Pneumatic Mini Air Regulator inspected and in good used condition. Normal wear on body and knob. WIKA gauge intact and legible. No damage noted. |
